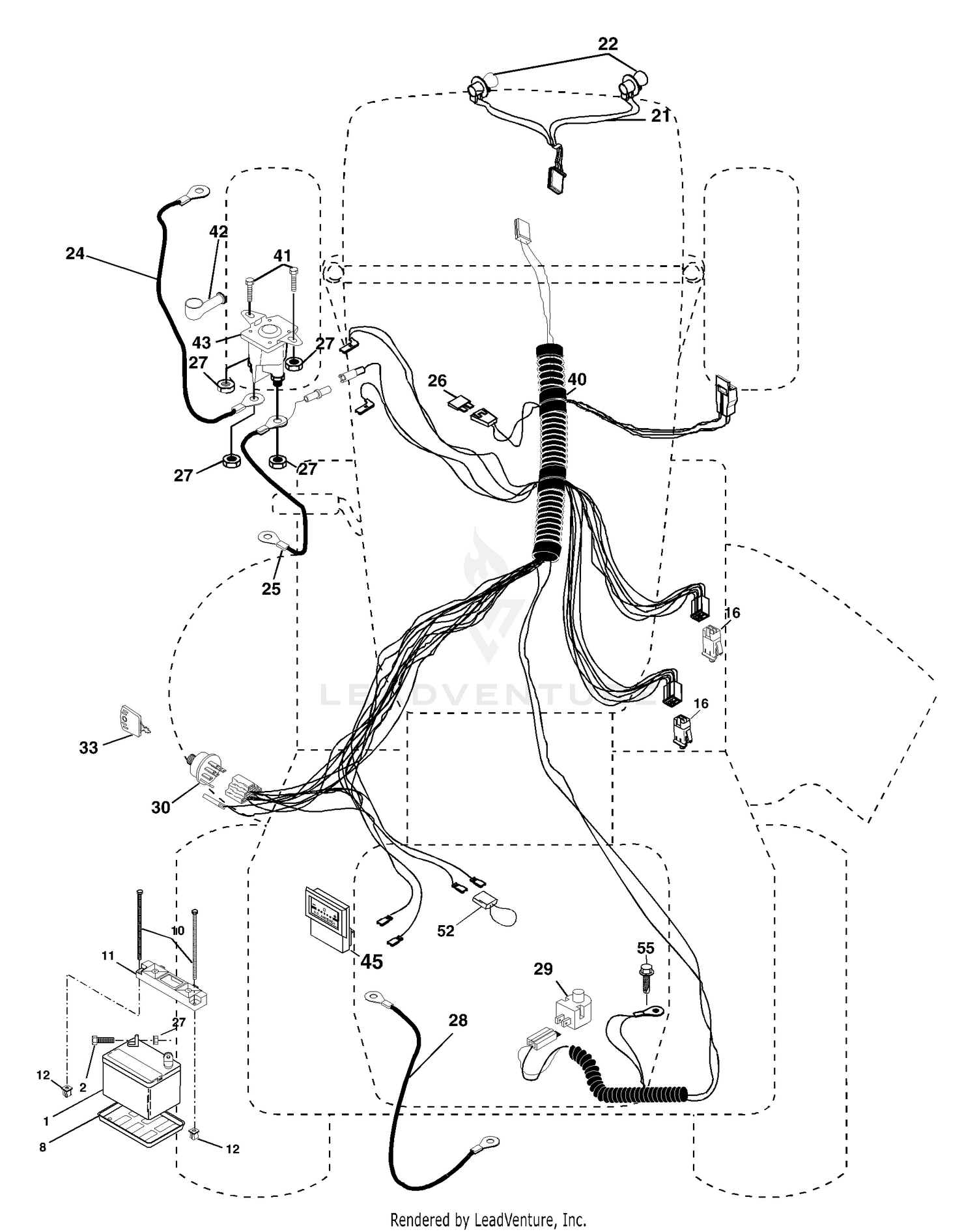

| Ref | Part Number | Description |
|---|
| 1 |
115-5304 |
CAP-FUEL This part replaces 93-7170. Price: $26.87 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
92-7186 |
TANK-FUEL Price: $333.26 |
| 3 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 4 |
95-0576-03 |
BASE-TANK, FUEL This part replaces 95-0576. Price: $196.80 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 7 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 8 |
110-8151 |
HOSE-FUEL, FORMED This part replaces 92-7152. Price: $18.95 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 9 |
92-7160 |
CLIP Price: $13.03 |
| 10 |
32103-12 |
NUT-WING Price: $1.15 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT Price: $4.99 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 12 |
92-5018-03 |
CLAMP-BATTERY This part replaces 92-5018. Price: $21.92 |
| 13 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
104-8162 |
BATTERY-DRY This part replaces 92-1678. Price: $114.99 |
| 16 |
100-6435 |
POST-BATTERY This part replaces 56-7720. Price: $15.91 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
2412-73 |
CLAMP-R Price: $2.56 |
| 21 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 22 |
109-0294 |
HOSE-FUEL This part replaces 95-0618. Price: $6.29 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 24 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 24 |
83-1390 |
VALVE-SHUT-OFF, FUEL Price: $55.01 |
| 25 |
240-9 |
GROMMET Price: $3.25 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 26 |
86-7640-01 |
BOX-LITTER This part replaces 86-7640. Price: $165.59 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 27 |
86-7450 |
CABLE-GROUND Price: $23.53 |
| 28 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 29 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 30 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 31 |
94-2690 |
FILTER-FUEL Price: $4.69 |
| 32 |
110-7501 |
HOSE-FUEL This part replaces 95-0619. Price: $12.75 |
| 33 |
28-8080 |
BOOT-TERMINAL Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
86-7570 |
WIRE ASSY Price: $30.90 |
| 40 |
532179720 |
HARNESS.IGNITION Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
