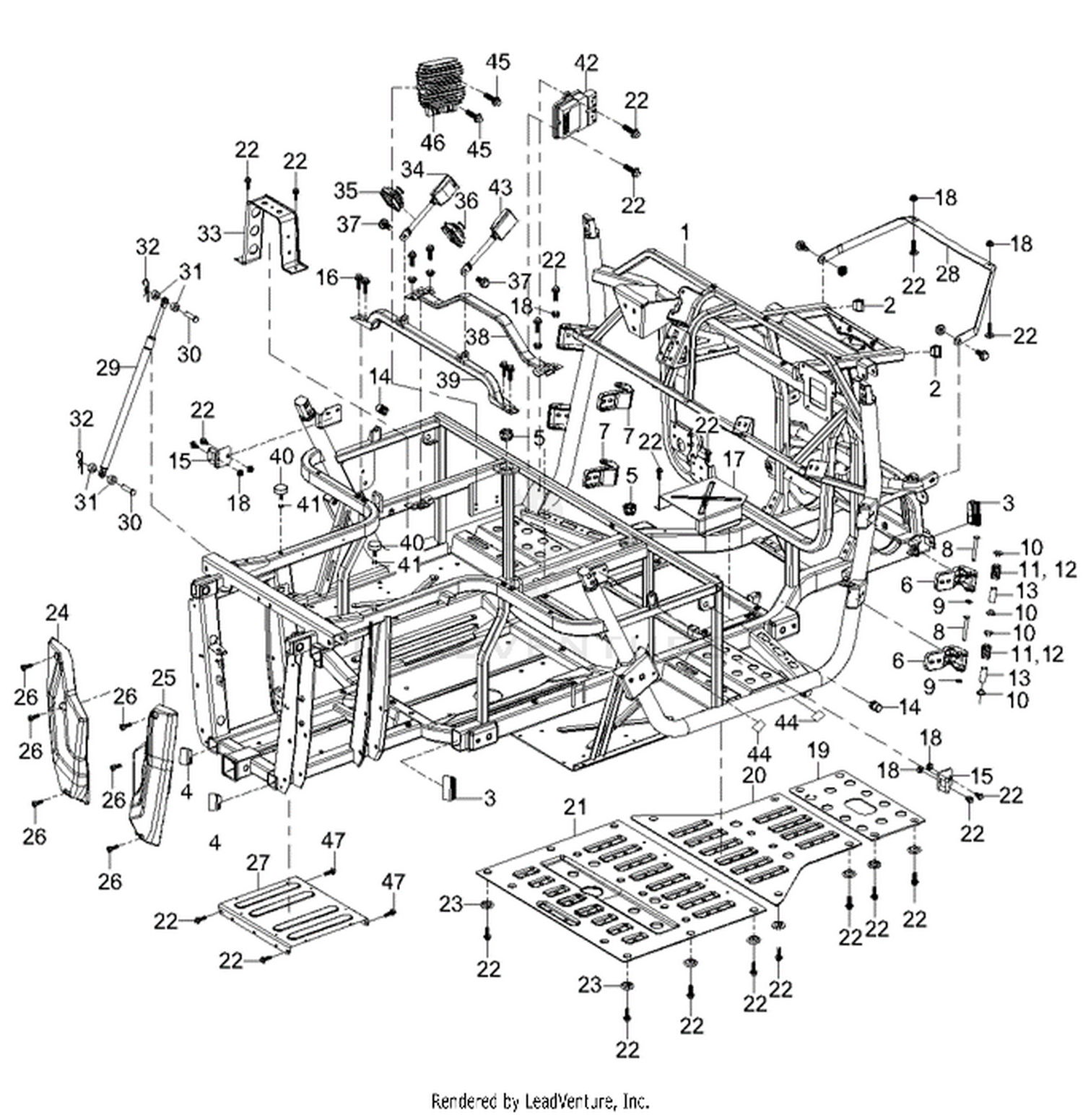

| Ref | Part Number | Description |
|---|
| 2 |
503-01336 |
PLASTIC CAP 30X30 Price: $3.77 |
| 3 |
503-00025 |
RUBBER BLOCK Price: $25.04 |
| 4 |
503-01337 |
PLASTIC CAP 40X40 Price: $3.94 |
| 5 |
503-01338 |
RUBBER WASHER Price: $4.06 |
| 6 |
503-01339 |
DOOR HINGE Price: $44.27 |
| 7 |
503-01340 |
DOOR HINGE Price: $44.27 |
| 8 |
503-01341 |
SHOULDER PIN 8X70.5 Price: $5.67 |
| 9 |
503-01342A |
CLIP Price: $4.06 |
| 10 |
503-01343 |
PLASTIC BUSHING Price: $4.06 |
| 11 |
503-01344 |
TORSION SPRING (LH) Price: $3.67 |
| 12 |
503-01345 |
TORSION SPRING (RH) Price: $3.67 |
| 13 |
503-01346 |
SPACER Price: $4.64 |
| 14 |
503-02824 |
DOOR DAMPER I Price: $7.12 |
| 15 |
503-01348 |
DOOR HOOK KIT Price: $5.05 |
| 16 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 17 |
503-01370 |
PEDAL PLATE Not Available Price: |
| 18 |
503-01979 |
HEX FLANG NUT M6 Price: $3.94 |
| 19 |
503-01351 |
FRONT SKID PLATE Price: $10.61 |
| 20 |
503-01352 |
MIDDLE SKID PLATE Price: $59.92 |
| 21 |
503-01353 |
REAR SKID PLATE Price: $121.82 |
| 22 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 23 |
503-00593 |
CAP WASHER Price: $17.44 |
| 24 |
503-01354 |
REAR BUMPER I Price: $17.17 |
| 25 |
503-01355 |
REAR BUMPER II Price: $17.17 |
| 26 |
503-00129 |
SOCKET HEX FLAT HEAD BOLT M6X16 Price: $5.36 |
| 27 |
503-02736 |
DIFF HEAT SHIELD (REAR) Price: $54.43 |
| 28 |
503-01359 |
HOOD STRAP Price: $24.96 |
| 29 |
503-01360A |
GAS SPRING ASSEMBLY - CARGO BED Price: $156.66 |
| 30 |
503-01361 |
SHOULDER PIN 12X47 Price: $5.11 |
| 31 |
503-01362 |
RUBBER WASHER 13 x 10 Price: $4.06 |
| 32 |
503-01363 |
SPRING PIN Price: $4.06 |
| 33 |
503-02891 |
BATTERY BOX STRAP Price: $20.99 |
| 34 |
503-01365 |
SEAT BELT BUCKLE Price: $56.10 |
| 35 |
503-01366 |
SEAT BELT BUCKLE CAP LH Price: $5.89 |
| 36 |
503-01367 |
SEAT BELT BUCKLE CAP RH Price: $5.35 |
| 37 |
503-00409 |
HEX FLANGE BOLT M10X1.25X20 Price: $5.36 |
| 38 |
503-01368 |
SEAT STIFFENER SHELF KIT Price: $36.02 |
| 39 |
503-01369A |
SEAT BELT MOUNTING BRACKET Price: $42.86 |
| 40 |
503-01967 |
SPIRAL CUSHION GASKET Not Available Price: |
| 41 |
503-01371 |
NUT HEXAGON FLANGE HEAD M8 Price: $3.94 |
| 42 |
503-03124 |
ECU CONTROLLER (750) (MY18+) Price: $406.09 |
| 42 |
503-03874 |
ECU 550 (CARB) Price: $290.51 |
| 43 |
503-02465 |
PASSENGER SIDE SEAT BELT Price: $118.22 |
| 44 |
503-00527 |
BATTERY CUSHION Price: $11.81 |
| 45 |
503-00089 |
HEXAGON FLANGE BOLT M6X35 Price: $5.83 |
| 46 |
503-01857 |
RECTIFIER Price: $213.00 |
| 47 |
503-00081 |
HEXAGON FLANGE BOLT M6X25 Not Available Price: |
