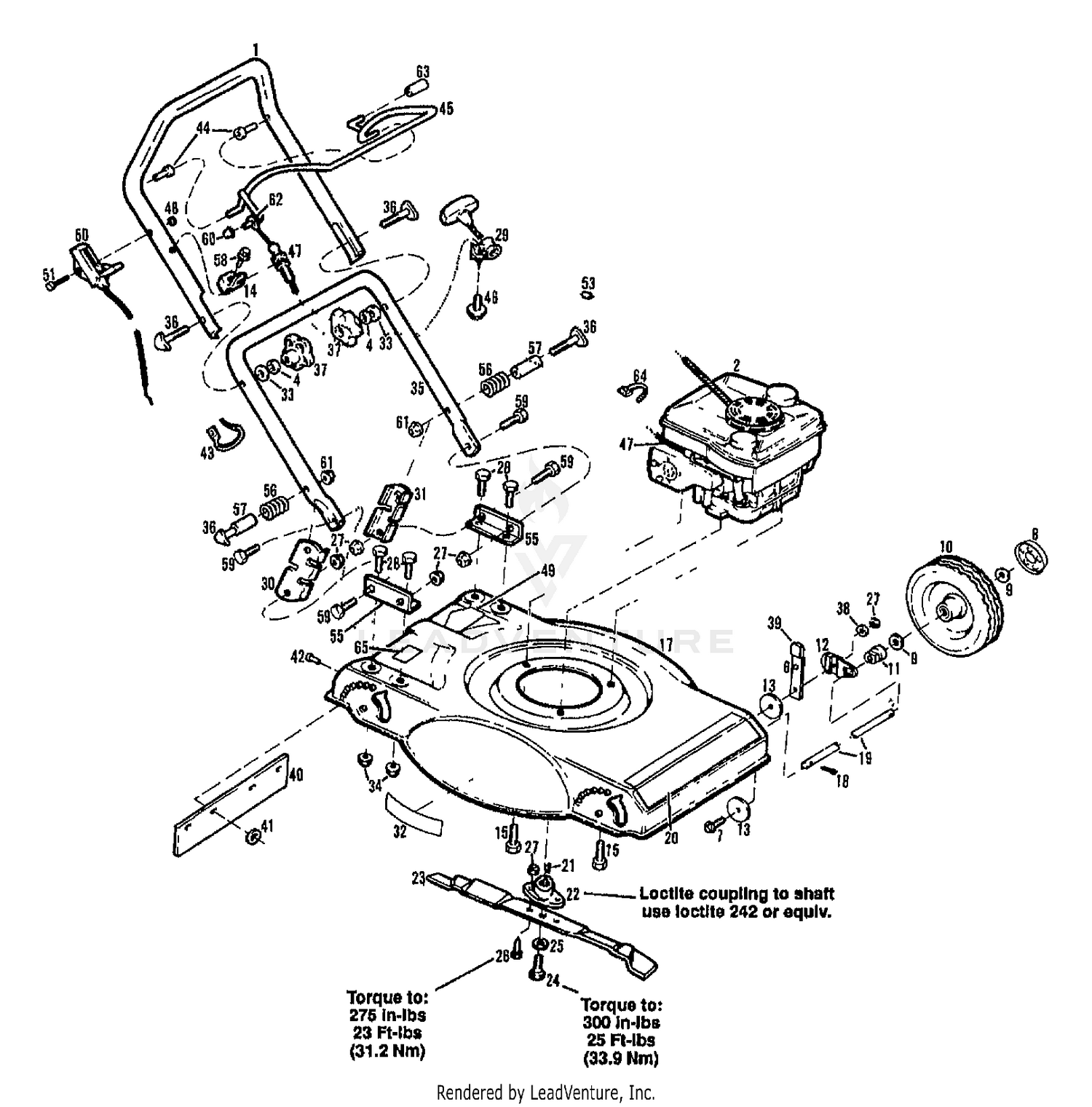

| Ref | Part Number | Description |
|---|
| 1 |
1760713001 |
UPPER HANDLE Not Available Price: |
| 4 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 6 |
1761627 |
ASSEMBLY LEVER HEIGHT ADJUST Not Available Price: |
| 7 |
710-04042 |
Hex Flange Screw, 3/8-16 This part replaces 1186347. Price: $4.05 |
| 8 |
1762241 |
CAP-HUB T/B MULCHERS Price: Call Us |
| 9 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 10 |
1761981 |
ASSEMBLY-REAR T Not Available Price: |
| 11 |
1894240 |
AXLE BEARING Not Available Price: |
| 12 |
1894289 |
ARM-WHEEL MOUNTING Not Available Price: |
| 13 |
1703052 |
WASHER-1.75X.39X.0 Not Available Price: |
| 14 |
1749977001 |
CABLE BRACKET Not Available This part replaces 1749977. Price: |
| 15 |
1762042 |
SCREW-HH Not Available Price: |
| 18 |
714-0474 |
Cotter Pin This part replaces 1100349. Price: $4.08 |
| 19 |
1734208 |
AXLE Not Available Price: |
| 20 |
1764712 |
DECAL-LOGO Not Available Price: |
| 21 |
1185885 |
WOODRUFF KEY Not Available Price: |
| 23 |
1760020 |
BLADE-CUTTER Not Available Price: |
| 25 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 27 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 28 |
710-04049 |
Flange Screw, 5/16-18,.625, Gr5 This part replaces 1186328. Price: $4.11 |
| 29 |
1761764 |
ROPE GUIDE Not Available Price: |
| 30 |
1755403001 |
SUPPORT-HANDLE (RH) Not Available Price: |
| 31 |
1755404001 |
SUPPORT-HAND L/H Not Available Price: |
| 32 |
1756671 |
DECAL-CAUTION Price: Call Us |
| 33 |
736-0275 |
FLAT WASHER This part replaces 1107382. Price: $5.99 |
| 34 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 35 |
1760632001 |
HANDLE-LOW Not Available Price: |
| 36 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1731025. Price: $6.28 |
| 37 |
1763767 |
KNOB Not Available Price: |
| 38 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 39 |
1737499 |
VACUCUT GRIP Not Available Price: |
| 40 |
1760019 |
SHIELD Price: Call Us |
| 41 |
1736359 |
WASHER-.88X.2X.059 Not Available Price: |
| 42 |
1739918 |
POP RIVET Not Available Price: |
| 44 |
1747499 |
BEARING-FL Not Available Price: |
| 45 |
1760728001 |
CONTROL-ENGINE Price: Call Us |
| 46 |
1763187 |
HEX SCREW Not Available Price: |
| 47 |
1760731 |
ASSEMBLY CABLE Not Available Price: |
| 48 |
712-0291 |
Hex Lock Nut, 1/4-20 This part replaces 1734398. Price: $3.93 |
| 49 |
1739687 |
DECAL-OPEI CAUTION Price: $6.36 |
| 51 |
1111601 |
SCREW-HH Not Available Price: |
| 53 |
1746425 |
STOP-STARTER ROPE Not Available Price: |
| 55 |
1755402001 |
BRACKET-HANDLEBAR Not Available Price: |
| 56 |
1755406 |
COMPRESSION SPRING Not Available Price: |
| 57 |
1755407 |
SPACER Not Available Price: |
| 58 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available Price: |
| 59 |
710-0216 |
HEX SCREW 3/8-16 X .75 This part replaces 1100068. Price: $3.93 |
| 60 |
726-0135 |
PUSH NUT This part replaces 1727342. Price: $5.94 |
| 61 |
1744708 |
HEX LOCK NUT Not Available Price: |
| 62 |
1747236 |
RING-GRIP Not Available Price: |
| 63 |
1751526 |
GRIP-HANDLE Not Available Price: |
| 65 |
1900333 |
DECAL-U.S.A. Not Available Price: |
