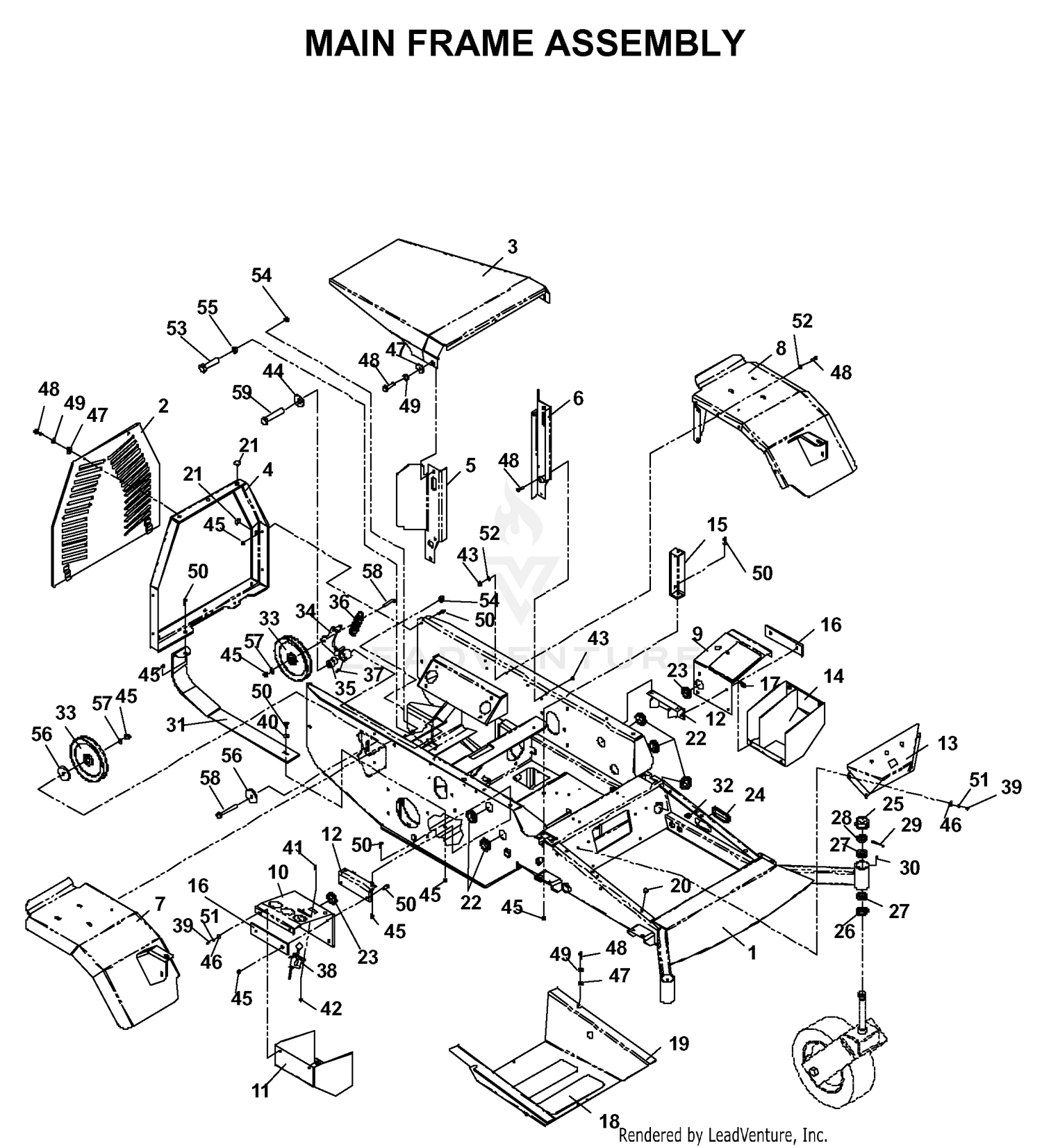

| Ref | Part Number | Description |
|---|
| 1 |
108-7388 |
SHAFT-ROLLER Price: $90.23 |
| 2 |
137-6142 |
TUBE ROLLER 3.0IN DIA X 24.85IN This part replaces 108-7389-03. Price: $203.64 |
| 2 |
539108362 |
PANEL W/ DECALS Price: $110.99 |
| 3 |
114-3717 |
SEAL-OIL Price: $2.77 |
| 3 |
539107853 |
HOOD ORANGE Price: $179.99 |
| 4 |
112-5290 |
BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 |
539107847 |
REAR FRAME Price: $188.99 |
| 5 |
112-7494 |
SEAL Price: $6.37 |
| 5 |
539106405 |
SUPPORT WLDMT, RT Price: $61.99 |
| 6 |
114-5411 |
NUT-LOCK, BEARING This part replaces 114-3745. Price: $24.46 |
| 6 |
539106406 |
SUPPORT WLDMT, LT Price: $60.99 |
| 7 |
108-0989 |
SCREW-SET Price: $0.99 |
| 7 |
539107205 |
FENDER WELDMT, RH Price: $147.99 |
| 8 |
114-5430 |
ROLLER REBUILD KIT Price: $99.53 |
| 8 |
539107206 |
FENDER WELDMT, LH Price: $303.99 |
| 9 |
539107781 |
TOP PANEL Price: $99.99 |
| 10 |
539107778 |
CONSOLE TOP-PAINTED Price: $30.99 |
| 11 |
539107776 |
CONSOLE BOTTOM Price: $83.99 |
| 12 |
539107788 |
MTG ANGLE WELDMT Price: $19.99 |
| 13 |
539107669 |
CENTER CONSOLE WELDMENT Price: $28.83 |
| 14 |
539107791 |
BOTTOM CONSOLE Price: $109.99 |
| 15 |
539108055 |
SUPPORT WELDMENT Price: $16.99 |
| 16 |
539107867 |
BLACK-STIFFNER-PAINTED Price: $6.99 |
| 17 |
539107232 |
MAGNETIC LATCH Price: $6.20 |
| 18 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 19 |
539104721 |
FOOT PLATE WIDMT Price: $179.99 |
| 20 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 21 |
539107858 |
GROMMET BUMPER Price: $3.99 |
| 22 |
539103684 |
GROMMET Price: $3.99 |
| 23 |
539107656 |
GROMMET Price: $3.99 |
| 24 |
539107210 |
GROMMET Price: $6.99 |
| 25 |
595281301 |
Caps This part replaces 539102535. Price: $4.99 |
| 26 |
539102851 |
SEAL Price: $6.99 |
| 27 |
539102543 |
TAPERED ROLLER BRG Price: $17.99 |
| 28 |
596241501 |
Nuts This part replaces 539102852. Price: $9.99 |
| 29 |
539124704 |
COTTER PIN 1/8 X 2 This part replaces 539102889. Price: $2.99 |
| 30 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 31 |
539106300 |
SKID PLATE Price: $48.99 |
| 32 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 33 |
539111568 |
IDLER This part replaces 539106348. Price: $59.99 |
| 34 |
539106418 |
ARM WELDMENT Price: $33.99 |
| 35 |
539106417 |
BUSHING Price: $69.99 |
| 36 |
539103256 |
SPRING Price: $9.99 |
| 37 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 38 |
597524002 |
THROTTLE This part replaces 539102732. Price: $37.99 |
| 39 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 40 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 41 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 42 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 43 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 44 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 45 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 46 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 47 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 48 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 49 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 50 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 51 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 52 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 53 |
539107026 |
HCS 1/2-13X2 GR 8 Price: $1.99 |
| 54 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 55 |
539990258 |
NUT HEX 1/2 Price: $3.99 |
| 56 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 57 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 58 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 59 |
539108346 |
HEX SCREW 1/2-13 X 2.5" GR 5 Price: $4.99 |
