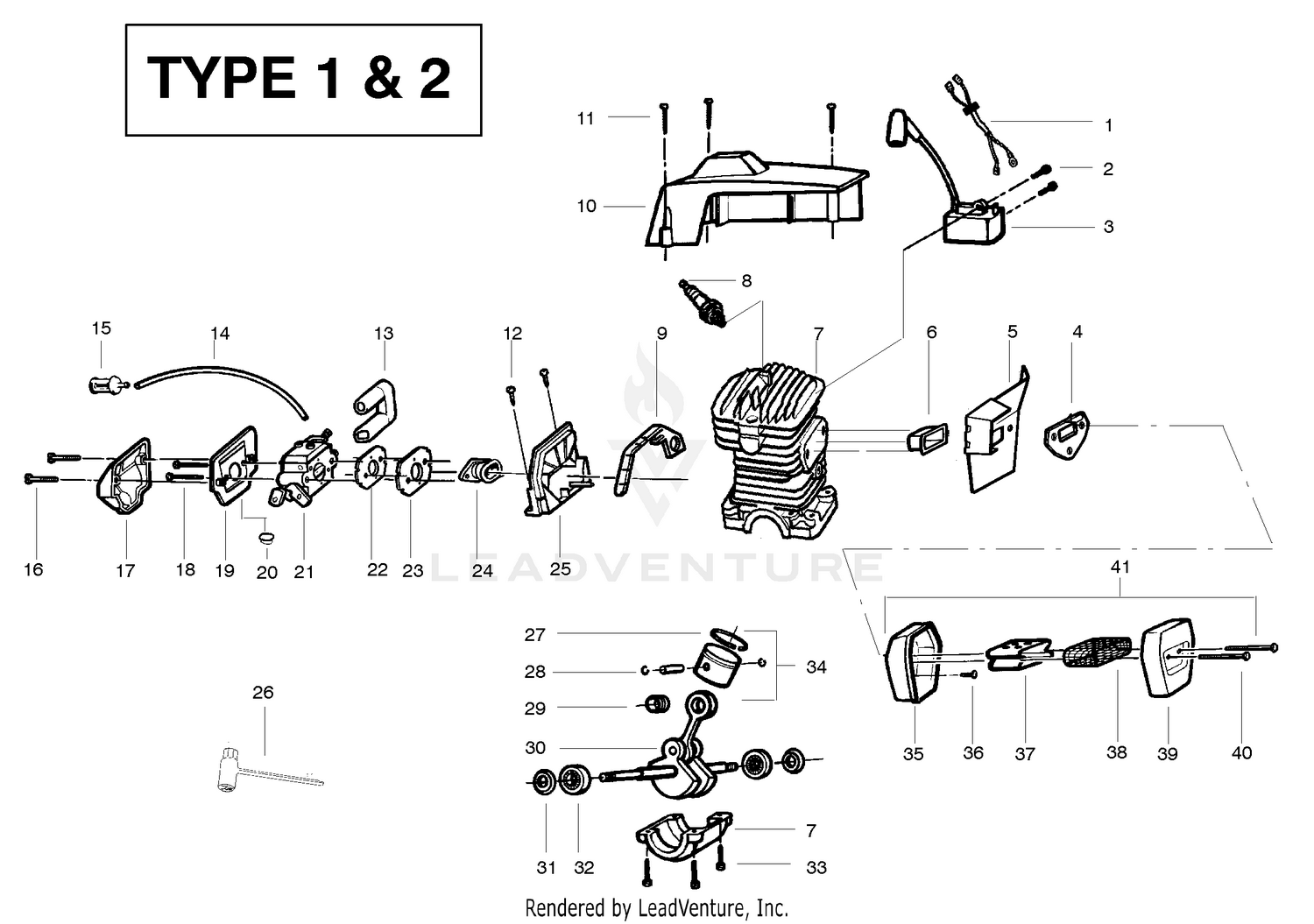

| Ref | Part Number | Description |
|---|
| 1 |
530037467 |
Switch Wire Ass'y. Price: $19.99 |
| 2 |
530015895 |
Screw Price: $1.99 |
| 3 |
545199901 |
IGNITION MODULE This part replaces 530039143. Price: $22.99 |
| 4 |
530019205 |
Muffler Gasket Price: $1.99 |
| 5 |
530056256 |
BACKPLATE MUFFLER This part replaces 530047801. Price: $8.99 |
| 6 |
530037652 |
Heat Insulator Price: $1.99 |
| 7 |
530014943 |
C'case&Cylinder Assy Price: Call Us |
| 8 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 9 |
530019251 |
Super Clean Seal Price: $1.99 |
| 10 |
530069700 |
Cylinder Shield Kit Price: $14.99 |
| 10 |
98-7734 |
STARTER ASM Price: $608.87 |
| 11 |
530016154 |
Screw Price: $0.99 |
| 12 |
530015814 |
Screw Price: $1.49 |
| 13 |
530037464 |
Carb. Grommet Price: $1.99 |
| 14 |
530069247 |
Kit - Line Carb / Purge Price: $3.69 |
| 15 |
530095646 |
Assy-Fuel Pick-up This part replaces 530047004. Price: $2.69 |
| 16 |
530015899 |
Screw Price: $1.99 |
| 17 |
545057701 |
Filter-Air (Top) This part replaces 530036141. Price: $2.99 |
| 18 |
530015970 |
Screw Price: $1.99 |
| 19 |
530059738 |
Filter-Air (Bottom) This part replaces 530037478. Price: $7.99 |
| 20 |
530036792 |
Isolator Price: $4.99 |
| 20 |
98-7741 |
YOKE ASM Price: $305.27 |
| 21 |
545013503 |
CARBURETOR This part replaces 530069629. Price: $32.99 |
| 22 |
530019172 |
Carburetor Gasket Price: $1.49 |
| 23 |
530037872 |
Carburetor Plate Price: $1.99 |
| 24 |
530071654 |
Kit-Carb.-Adapter This part replaces 530037668. Price: $17.99 |
| 25 |
530053396 |
Carb. Adaptor Price: $2.99 |
| 26 |
530031163 |
Bar Wrench Price: $4.99 |
| 27 |
530037380 |
Piston Ring Price: $2.99 |
| 28 |
530015697 |
Piston Pin Retainer Price: $1.99 |
| 29 |
530032117 |
Piston Pin Bearing Price: $4.36 |
| 30 |
503920801 |
This part replaces 530029794. Price: $124.99 |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 33 |
530015897 |
Screw Price: $1.99 |
| 35 |
530037728 |
Muffler Body Price: $5.99 |
| 36 |
530015902 |
Bolt Price: $1.99 |
| 37 |
530037813 |
Diffuser Price: $1.99 |
| 38 |
530036103 |
Spark Screen Price: Call Us |
| 39 |
530037249 |
Muffler Cover Price: $3.99 |
| 40 |
530016170 |
Muffler Bolt Price: $1.99 |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
98-7745 |
CLUTCH-RUNNING, OVER Price: $356.53 |
| 65 |
105-2887 |
PINION-BEVEL Price: $174.63 |
| 70 |
98-7746 |
FRAME-END, DRIVE Price: $131.70 |
| 80 |
110-0019 |
MAGNETIC SWITCH ASM Price: $722.27 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
98-7758 |
BOLT ASM Price: $4.90 |
| 200 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 210 |
98-7760 |
NUT-HEX Price: $2.05 |
| 220 |
100-9240 |
BOLT Price: $7.23 |
| 230 |
99-8376 |
NUT-HEX Price: $7.28 |
| 240 |
110-0020 |
COVER-TERMINAL Price: $5.58 |
