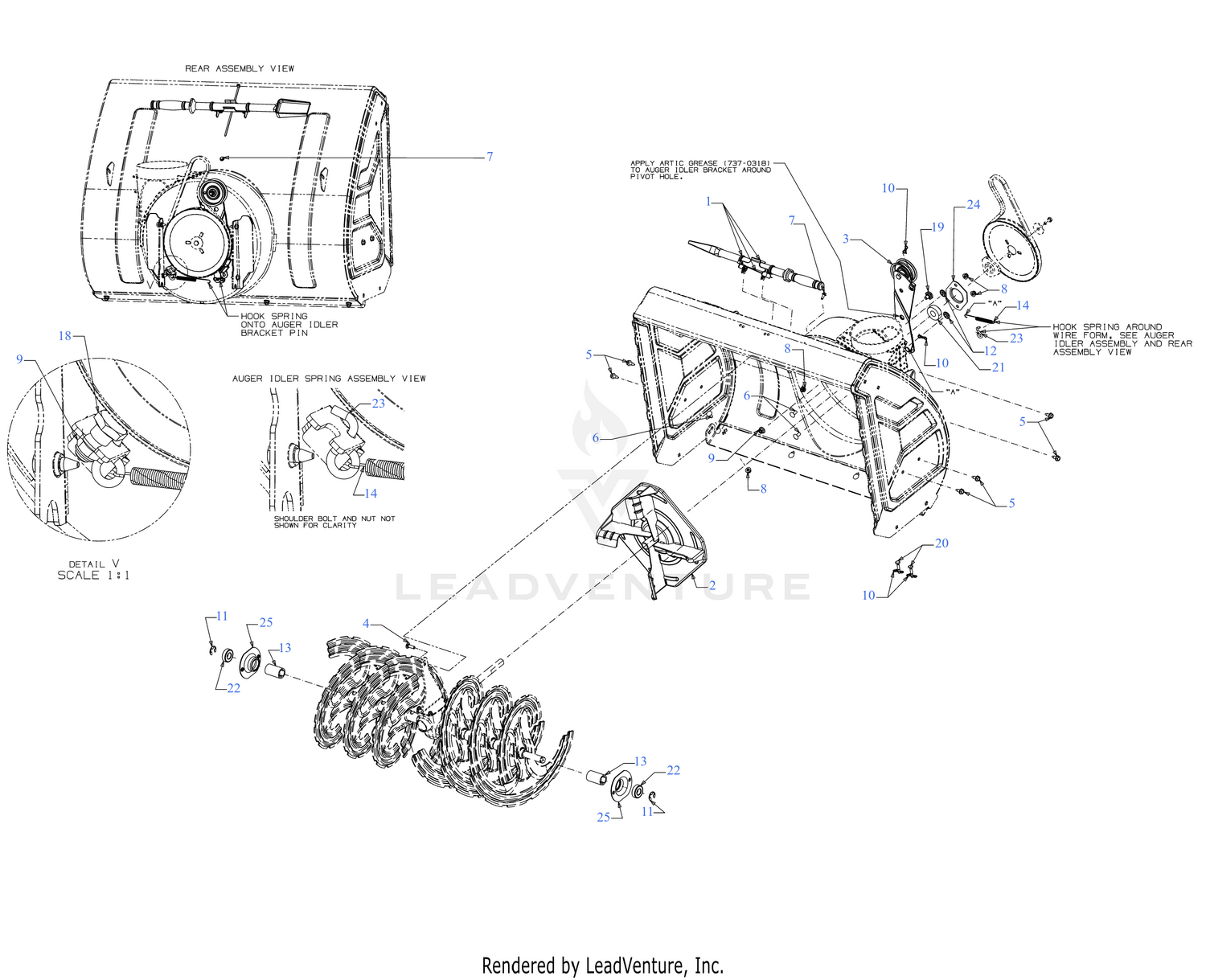

| Ref | Part Number | Description |
|---|
| 1 |
731-11421 |
CLEANOUT TOOL MOUNTING CLIP Price: $9.83 |
| 1 |
931-2643 |
CLEANOUT TOOL Price: $16.68 |
| 4 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 7 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-04065 |
NUT Price: $3.68 |
| 10 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 11 |
716-0231 |
E-ring..75 This part replaces 916-0231. Price: $3.50 |
| 12 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 13 |
731-11747 |
SPACER 1.25 x .75 x 2.085 Price: $3.64 |
| 14 |
732-04460 |
EXTENSION SPRING .38 OD x 4.59 Price: $4.69 |
| 18 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 19 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 20 |
738-04124A |
SHEAR PIN .25 x 1.50 GR2 Price: $1.56 |
| 21 |
941-0309 |
BEARING W/OUT COLLAR Price: $69.59 |
| 22 |
741-05194 |
BALL BEARING Price: $7.44 |
| 23 |
747-06779 |
ROD SPRING HOOK Price: $3.64 |
| 24 |
790-00075B |
BEARING HOUSING 1.85 ID Price: $5.66 |
