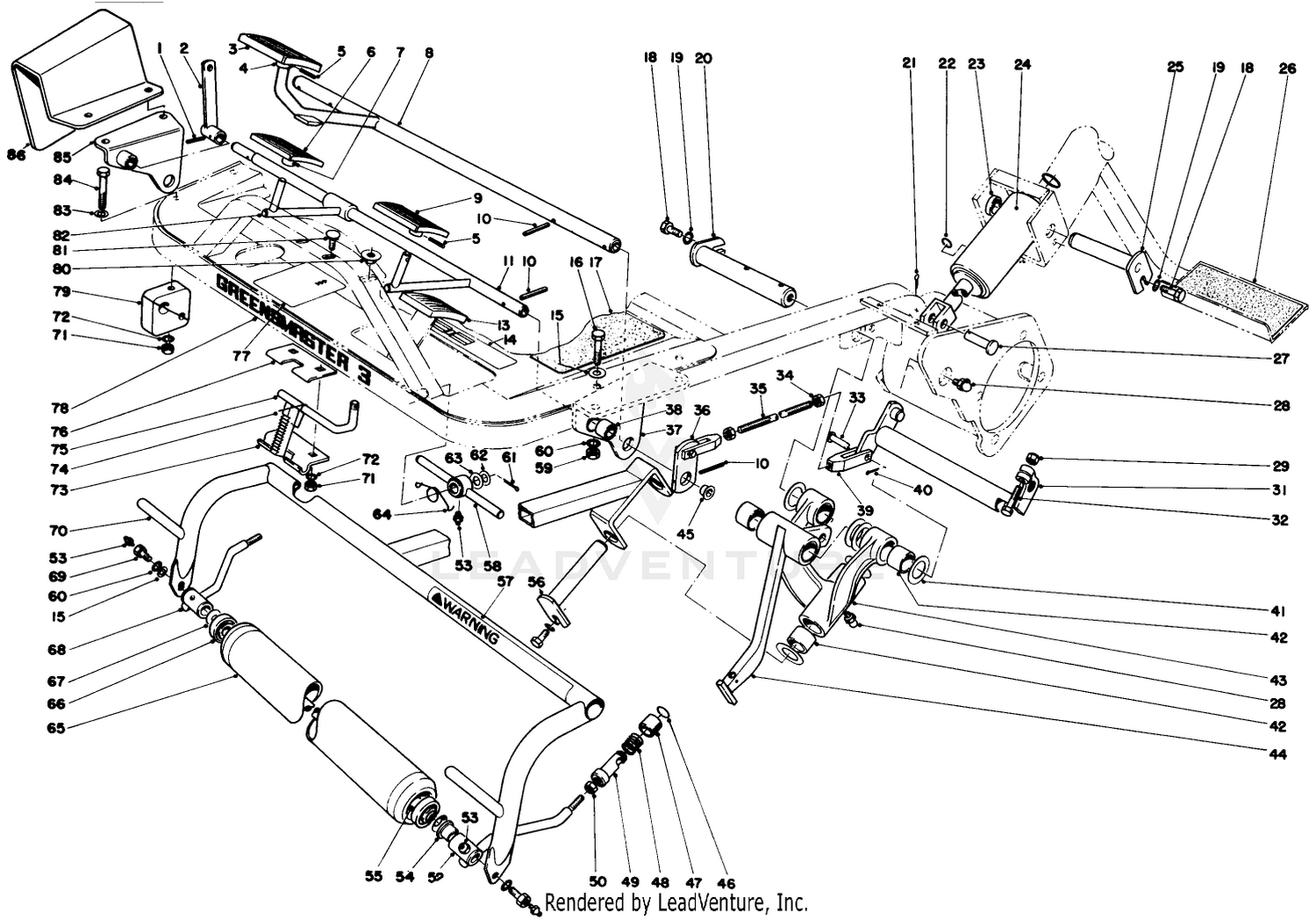

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
27-2330 |
DISCONTINUED Price: Call Us |
| 3 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 4 |
27-2210 |
DISCONTINUED Price: Call Us |
| 5 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 6 |
99-5650 |
MOW PAD & DECAL This part replaces 10-8250. Price: $15.33 |
| 7 |
10-6540 |
FOOT PEDAL WA *R Price: $94.63 |
| 8 |
27-2180 |
DISCONTINUED Price: Call Us |
| 9 |
99-6857 |
PAD-PEDAL, UPDATE KIT This part replaces 10-8240. Price: $25.77 |
| 10 |
32121-35 |
PIN-ROLL Price: $0.79 |
| 11 |
12-1900 |
DISCONTINUED Price: Call Us |
| 13 |
10-8230 |
DISCONTINUED Price: Call Us |
| 14 |
28-1750 |
DISCONTINUED Price: Call Us |
| 15 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 16 |
323-11 |
SCREW-HH Price: $1.08 |
| 17 |
10-8210 |
DISCONTINUED Price: Call Us |
| 18 |
322-1 |
SCREW-HH Price: $0.22 |
| 19 |
32534 |
Lockwasher Price: Call Us |
| 20 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
237-78 |
O-RING Price: $3.85 |
| 23 |
46-6350 |
SPACER Price: $25.99 |
| 24 |
84-8290 |
HYD CYLINDER ASSY This part replaces 46-3690. Price: $335.46 |
| 25 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 26 |
10-8200 |
FOOT STEP PAD Price: $16.91 |
| 27 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 28 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 29 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 31 |
27-2230 |
DISCONTINUED X-REF Price: Call Us |
| 32 |
329-7 |
SCREW-HH Price: $0.22 |
| 33 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 34 |
3220-2 |
NUT-JAM Price: $0.50 |
| 35 |
27-2270 |
ROD-ADJUSTMENT, BRAKE Price: $32.18 |
| 36 |
110-8100 |
Strap-Brake Shaft. Price: Call Us |
| 37 |
10-6250 |
DISCONTINUED Price: Call Us |
| 38 |
256-32 |
BUSHING Price: $9.99 |
| 39 |
282-2 |
YOKE Price: $30.04 |
| 40 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 41 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 42 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 43 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 44 |
20-7670 |
DISCONTINUED X-REF Price: Call Us |
| 45 |
285-16 |
DISCONTINUED Price: $2.00 |
| 49 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 50 |
3220-3 |
NUT-HJ Price: $0.28 |
| 52 |
21-8490-01 |
DISCONTINUED This part replaces 21-8490. Price: Call Us |
| 53 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 54 |
3-1506 |
BUSHING Price: $2.42 |
| 55 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 56 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 57 |
62-5070 |
DECAL-WARNING This part replaces 27-2890. Price: $5.59 |
| 58 |
12-9050 |
DISCONTINUED Price: Call Us |
| 59 |
3218-3 |
NUT-JAM Price: $0.25 |
| 60 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 61 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 62 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 63 |
3290-221 |
WASHER-SPRING Price: $3.12 |
| 64 |
10-9090 |
DISCONTINUED Price: Call Us |
| 65 |
25-5550 |
DISCONTINUED X-REF Price: Call Us |
| 66 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 67 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 68 |
3218-19 |
NUT-HJ This part replaces 21-8500. Price: $0.54 |
| 69 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 70 |
86-9810-01 |
L/H PULL FRAME ASM This part replaces 47-5970. Price: $327.77 |
| 71 |
3217-5 |
NUT-HEX Price: $0.25 |
| 72 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 73 |
10-7890 |
DISCONTINUED Price: Call Us |
| 74 |
10-8140 |
SPRING-LATCH, BRAKE Price: $18.38 |
| 75 |
10-7850 |
LATCH-BRAKE, PARKING Price: $111.12 |
| 76 |
10-7880 |
DISCONTINUED Price: Call Us |
| 77 |
27-2830 |
PARKING BRAKE DECAL Price: $8.92 |
| 78 |
54-7320 |
DISCONTINUED This part replaces 10-8170. Price: Call Us |
| 79 |
27-2170 |
DISCONTINUED Price: Call Us |
| 80 |
32141-111 |
NUT-ADJUSTING Price: $6.09 |
| 81 |
3229-11 |
SCREW-CARR This part replaces 3229-22. Price: $0.99 |
| 82 |
10-6300 |
MOW PEDAL WA Price: $76.13 |
| 83 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 84 |
321-19 |
SCREW-HH Price: $1.13 |
| 85 |
10-6280 |
DISCONTINUED Price: Call Us |
