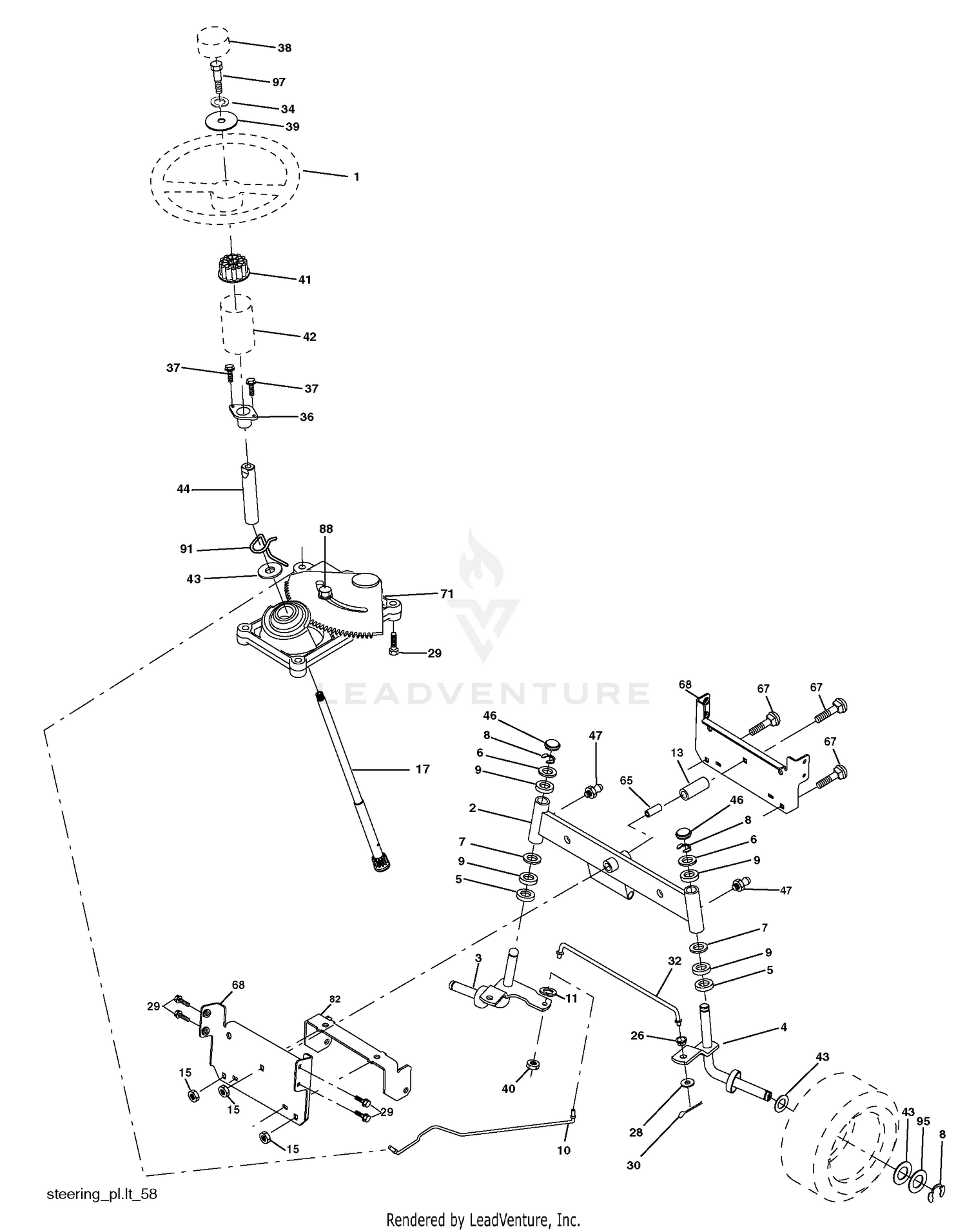

| Ref | Part Number | Description |
|---|
| 1 |
186093X428 |
Wheel Steering Price: Call Us |
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
175131 |
Axle Asm Price: Call Us |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
98-1215 |
HOSE-LOWER, RADIATOR Price: $60.21 |
| 5 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
104-5232 |
CLIP-WIRE Price: $3.13 |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 7 |
19272016 |
Washer 27/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 7 |
98-7895 |
TUBE Price: $6.88 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
98-1214 |
HOSE-RADIATOR, UPPER Price: $62.92 |
| 9 |
3366R |
Bearing Price: Call Us |
| 9 |
59-8440 |
DECAL-PRESSURE WARNING, RADIATOR Price: $8.90 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 10 |
58-5420 |
CAP-PRESSURE Price: $34.59 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
58-5540 |
COOLER-OIL Price: $1,352.93 |
| 12 |
92-4753-03 |
STRAP-COOLER, OIL Price: $26.43 |
| 13 |
136518 |
Spacer Brg Axle Front Price: Call Us |
| 13 |
75-7790 |
HANDLE Price: $28.16 |
| 14 |
47-2550 |
GRIP-HANDLE, BAG Price: $3.86 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 15 |
48-7680 |
SCREW-HH Price: $0.61 |
| 16 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 17 |
190753 |
Shaft Asm Steering Price: Call Us |
| 17 |
76-2290 |
SPACER Price: $4.14 |
| 18 |
92-4729 |
DISCONTINUED Price: Call Us |
| 19 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
68-7575 |
STRIP-SEALING Price: $4.18 |
| 22 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 25 |
98-1250 |
SHROUD-FAN Price: $351.34 |
| 26 |
126847X |
Bushing Link Drag Price: Call Us |
| 27 |
98-1234 |
HOSE-INTAKE Price: $103.04 |
| 28 |
19131416 |
Washer 13/32 x 7/8 x 16 Ga. Price: Call Us |
| 28 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 29 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 30 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 32 |
192757 |
Rod Tie Price: Call Us |
| 33 |
92-6062 |
FOAM-SEAL, RADIATOR Price: $30.90 |
| 34 |
10040500 |
Washer Lock Hvy Hlcl Spr 5/16 Price: Call Us |
| 34 |
281-2 |
PLUG-PIPE, SQH Price: $2.09 |
| 36 |
155099 |
Bushing Strg Price: Call Us |
| 37 |
152927 |
Screw Price: Call Us |
| 37 |
93-3220 |
DISCONTINUED Price: Call Us |
| 38 |
186095X428 |
Insert Cap Strg Wh Price: Call Us |
| 38 |
323-9 |
SCREW-HH Price: $1.29 |
| 39 |
19113812 |
Washer 11/32 ID x 2-3/8 OD 12 Ga. Price: Call Us |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 40 |
73540600 |
Crownlock nut Price: Call Us |
| 41 |
186737 |
Adaptor Wheel Strg Price: Call Us |
| 41 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 42 |
145054X428 |
Boot Steering Dash Price: Call Us |
| 42 |
93-1420 |
TRAY-BATTERY Price: $26.64 |
| 43 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 44 |
190752 |
Extension Steering Shaft Price: Call Us |
| 44 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 45 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 46 |
93-6681 |
DECAL-WARNING, FAN Price: $11.51 |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 47 |
322-4 |
SCREW-HH Price: $0.35 |
| 51 |
100-2597 |
AIR FILTER ASM Price: $351.83 |
| 52 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 53 |
69-1940 |
INDICATOR-ELECTRICAL Price: $80.62 |
| 54 |
93-2049 |
TANK-OVERFLOW Price: $89.55 |
| 55 |
93-2048 |
CAP-TANK, OVERFLOW Price: $39.28 |
| 56 |
104-5218 |
WATER / FUEL SEPARATOR FILTER ASM Price: $458.08 |
| 57 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 59 |
108-3283 |
HOSE-FUEL This part replaces 94-1348. Price: $4.60 |
| 60 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 61 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 62 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 63 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 64 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 65 |
33114-016 |
SCREW-HH Price: $0.27 |
| 66 |
92-6064 |
CLAMP-R Price: $2.04 |
| 67 |
110-4110 |
HOSE-LP This part replaces 104-4848. Price: $8.31 |
| 67 |
72110618 |
Bolt RDHD SQNK 3/8-16 x 2 1/4 Price: Call Us |
| 68 |
110-3257 |
HOSE-FUEL This part replaces 63-7630. Price: $17.26 |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 69 |
98-7896 |
TRIM-LOK Price: $12.62 |
| 70 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 71 |
110-4100 |
HOSE-FUEL This part replaces 23-2140. Price: $28.86 |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 72 |
321-4 |
SCREW-HH Price: $0.99 |
| 73 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 74 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 75 |
104-5215 |
PUMP-FUEL, ELECTRIC Price: $264.12 |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 95 |
188967 |
Washer Harden .739 x 1.637 x .060 Price: Call Us |
