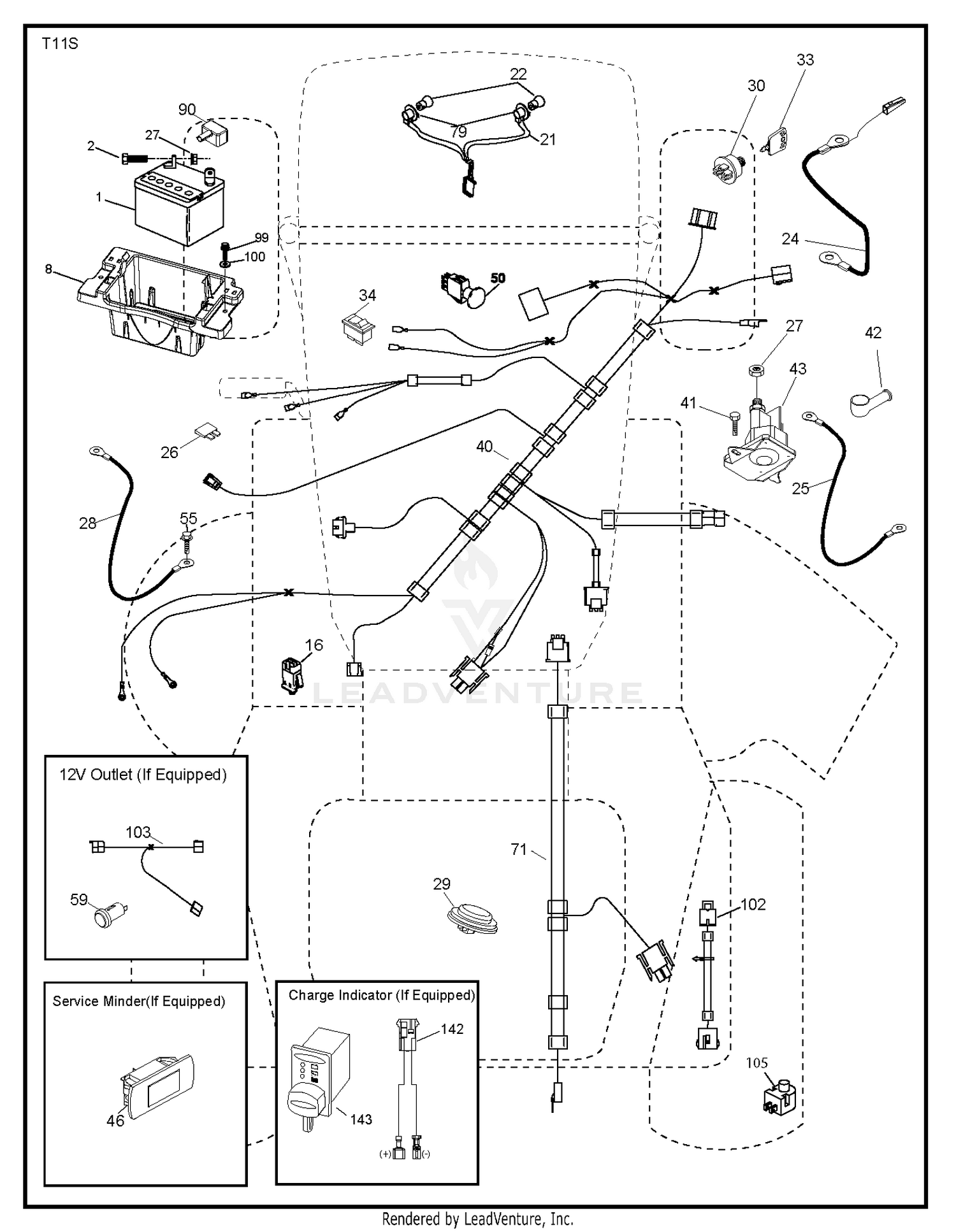

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 8 |
587205101 |
TRAY.BATTERY BOX.FRONT Price: $14.99 |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM Price: $196.85 |
| 15 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 112-7045. Price: $86.06 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532416588 |
CABLE.GROUND.21"BLK.8GA.90T Price: $11.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
112-7046 |
COVER-CASE, BEARING Price: $66.00 |
| 40 |
501132901 |
HARNESS HARNESS..DASH.ING.ELEC Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 582042801. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 50 |
112-0180 |
SEAL-OIL Price: $58.48 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 60 |
112-7037 |
GASKET-COVER, CASE Price: $14.14 |
| 70 |
98-9352 |
BOLT Price: $0.80 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 80 |
98-7568 |
BOLT Price: $0.84 |
| 90 |
115-4106 |
MAIN BEARING CASE ASM Price: $189.84 |
| 95 |
98-9524 |
METAL-CRANKSHAFT (STD SET) Price: $62.26 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
115-4107 |
MAIN BEARING CASE ASM Price: $152.88 |
| 125 |
115-4106 |
MAIN BEARING CASE ASM Price: $189.84 |
| 130 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 140 |
130-1265 |
MAIN BEARING CASE ASM This part replaces 115-4108. Price: $181.07 |
| 145 |
115-4106 |
MAIN BEARING CASE ASM Price: $189.84 |
