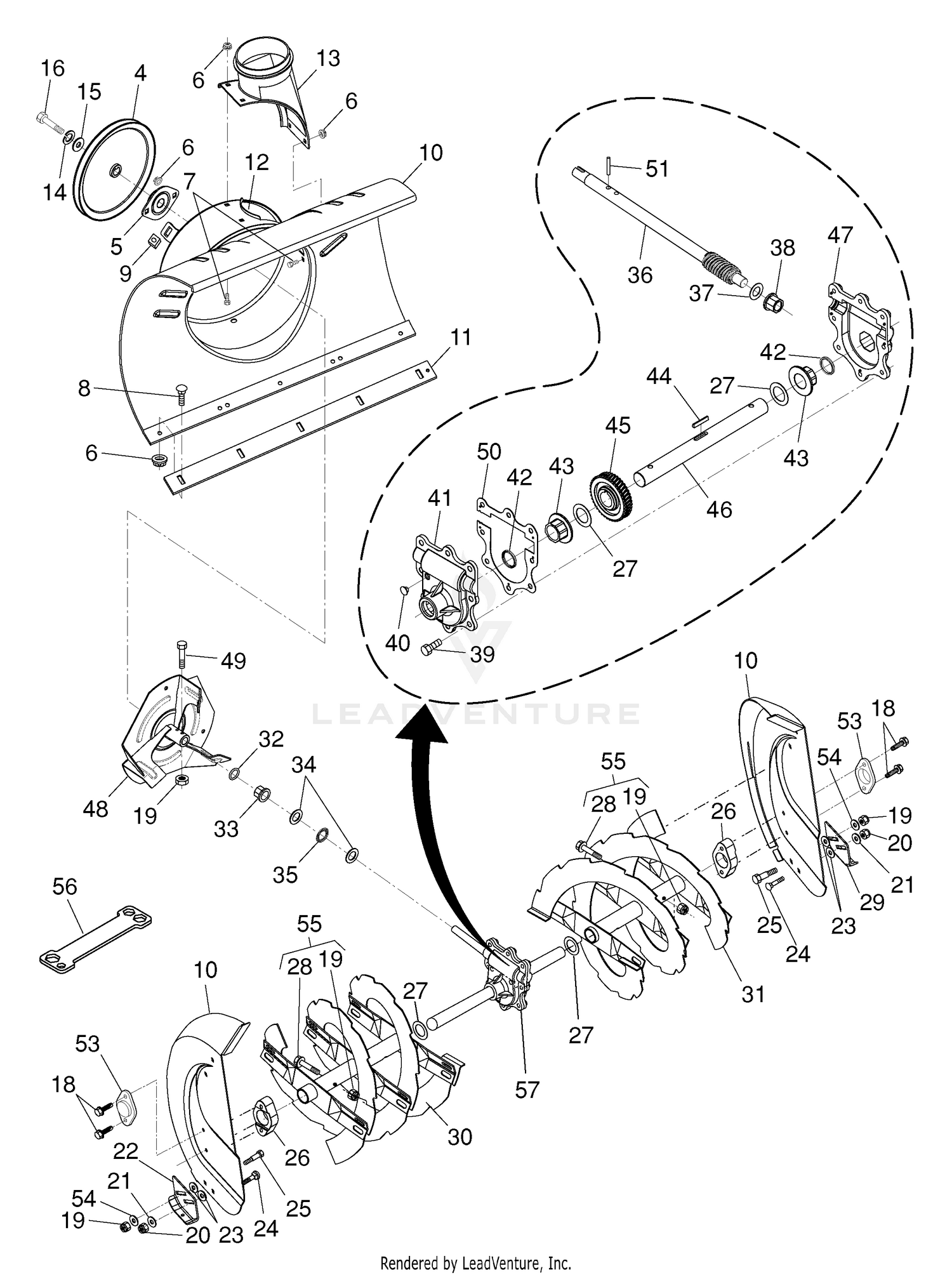

| Ref | Part Number | Description |
|---|
| 1 |
68-5370 |
DECAL Price: $6.21 |
| 2 |
66-9760 |
DISCONTINUED Price: Call Us |
| 3 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 4 |
532427071 |
PULLEY.IMPELLER.SNOW This part replaces 532191079. Price: $27.99 |
| 5 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 5 |
82-8660-01 |
COVER-TOWER This part replaces 82-8660. Price: $30.45 |
| 6 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 6 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 7 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 7 |
67-8690-03 |
SUPPORT-COLUMN This part replaces 67-8690. Price: $81.08 |
| 8 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 9 |
532178820 |
NUT, CAGE 3/8-16 Price: $5.99 |
| 9 |
77-3120-01 |
BRACKET-MOUNTING, COLUMN This part replaces 77-3120. Price: $49.33 |
| 10 |
581708369 |
KIT.AUGER.HOUSING.404930X668 This part replaces 532188191. Price: $279.99 |
| 10 |
80-2960 |
SPACER-TOWER Price: $11.13 |
| 11 |
532435830 |
BAR.SCRAPER.30.BLACK This part replaces 532184098. Price: $17.99 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 12 |
82-8760 |
ELBOW-HYD Price: $59.61 |
| 13 |
237-30 |
O-RING Price: $2.50 |
| 13 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532175322. Price: $9.99 |
| 14 |
63-8970 |
HOSE-HYD Price: $162.31 |
| 14 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 15 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 15 |
70-1390 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 16 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 16 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 17 |
70-1380 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 18 |
532179582 |
SCREW, HEX HD 5/16X1 Price: $3.99 |
| 18 |
68-9730 |
HOSE-STEERING, HYD Price: $116.90 |
| 19 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 19 |
68-9720 |
HOSE-STEERING, HYD Price: $118.16 |
| 20 |
237-22 |
O-RING Price: $2.43 |
| 20 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 21 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 21 |
82-8770 |
ELBOW-HYD Price: $73.15 |
| 22 |
532436125 |
PLATE.SKID.ADJ.RH.BLACK This part replaces 532184094. Price: $6.99 |
| 22 |
63-8980 |
HOSE-HYD Price: $160.86 |
| 23 |
532179246 |
WASHER, NYLON FRICTION Price: $3.99 |
| 23 |
63-8990 |
HOSE-HYD Price: $57.67 |
| 24 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 24 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 This part replaces 872270506. Price: $3.99 |
| 25 |
108-6557 |
STEER VALVE AND COLUMN ASM This part replaces 92-7308. Price: $1,800.82 |
| 25 |
532185600 |
SHOULDER BOLT Price: $3.99 |
| 26 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 26 |
532188170 |
BEARING RETAINER, PLASTIC Price: $7.99 |
| 27 |
323-6 |
SCREW-HH Price: $0.66 |
| 27 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 28 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 532192090. Price: $1.00 |
| 29 |
532174762 |
PLATE.SKID.ADJUSTABLE.LH.BLACK This part replaces 532184093. Price: $7.99 |
| 29 |
80-2940-03 |
PLATE-PIVOT This part replaces 80-2940. Price: $40.35 |
| 30 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 30 |
532435545 |
AUGER.WELDMENT.RH.30.BB This part replaces 532199530. Price: $139.99 |
| 31 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 31 |
532435544 |
KIT.AUGER.30.LH.BB This part replaces 532199529. Price: $139.99 |
| 32 |
532174699 |
O-RING Price: $7.99 |
| 32 |
80-2980 |
BOSS - TILT STEERING Price: $48.89 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 This part replaces 532174700. Price: $7.99 |
| 33 |
80-2970 |
PIN - TILT STRG Price: $40.05 |
| 34 |
532174681 |
WASHER, THRUST 3/4 Price: $11.99 |
| 34 |
80-2890 |
TILT STRG HANDLE Price: $62.27 |
| 35 |
233-21 |
KNOB Price: $12.99 |
| 35 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $6.99 |
| 36 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 36 |
532407757 |
SHAFT, IMPELLER This part replaces 532174660. Price: $89.99 |
| 37 |
532174683 |
WASHER, THRUST 5/8 Price: $6.99 |
| 37 |
82-8650 |
CLAMP-COLUMN Price: $16.37 |
| 38 |
532174686 |
BUSHING.FLANGE.(.625X.75) Price: $22.99 |
| 38 |
82-9010 |
DISC-FRICTION Price: $15.53 |
| 39 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 39 |
80-2930 |
WASHER-FLAT Price: $5.00 |
| 40 |
532086447 |
PLUG.AUGER.GEAR.BOX.SNOW Price: $3.99 |
| 40 |
80-2880 |
BRACKET-TILT Price: $18.75 |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 41 |
532174688 |
HOUSING.GEARBOX.RH.SNOW Price: $22.99 |
| 42 |
3218-7 |
NUT-JAM Price: $3.86 |
| 42 |
532174698 |
SEAL, OIL Price: $4.99 |
| 43 |
322-4 |
SCREW-HH Price: $0.35 |
| 43 |
532174701 |
BUSHING FLANGE 1" Price: $29.99 |
| 44 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 44 |
82-8940 |
DECAL-STEERING, TILT Price: $24.33 |
| 45 |
32144-21 |
SCREW Price: $0.20 |
| 45 |
598831601 |
Service Kit This part replaces 532174659. Price: $199.99 |
| 46 |
532174657 |
SHAFT, AUGER Price: $59.99 |
| 47 |
532407765 |
HOUSING.GEARBOX.LH(SERVICE) This part replaces 532174687. Price: $22.99 |
| 48 |
531167901 |
SERVICE KIT IMPELLER WELDMENT This part replaces 532184105. Price: $44.99 |
| 49 |
596322101 |
BOLT HEXAGON BOLT 1/4-20 X 1-5 This part replaces 874780426. Price: $2.99 |
| 50 |
532175311 |
GASKET.AUGER.GEARBOX Price: $7.99 |
| 51 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532184205. Price: $3.99 |
| 53 |
532187925 |
BEARING.BALL.AUGER.SHAFT Price: $54.99 |
| 54 |
819091214 |
WASHER This part replaces 532053847. Price: $8.99 |
| 56 |
532429112 |
WRENCH.SNOWTHROWER.ZINC.YZ This part replaces 532180684. Price: $3.99 |
