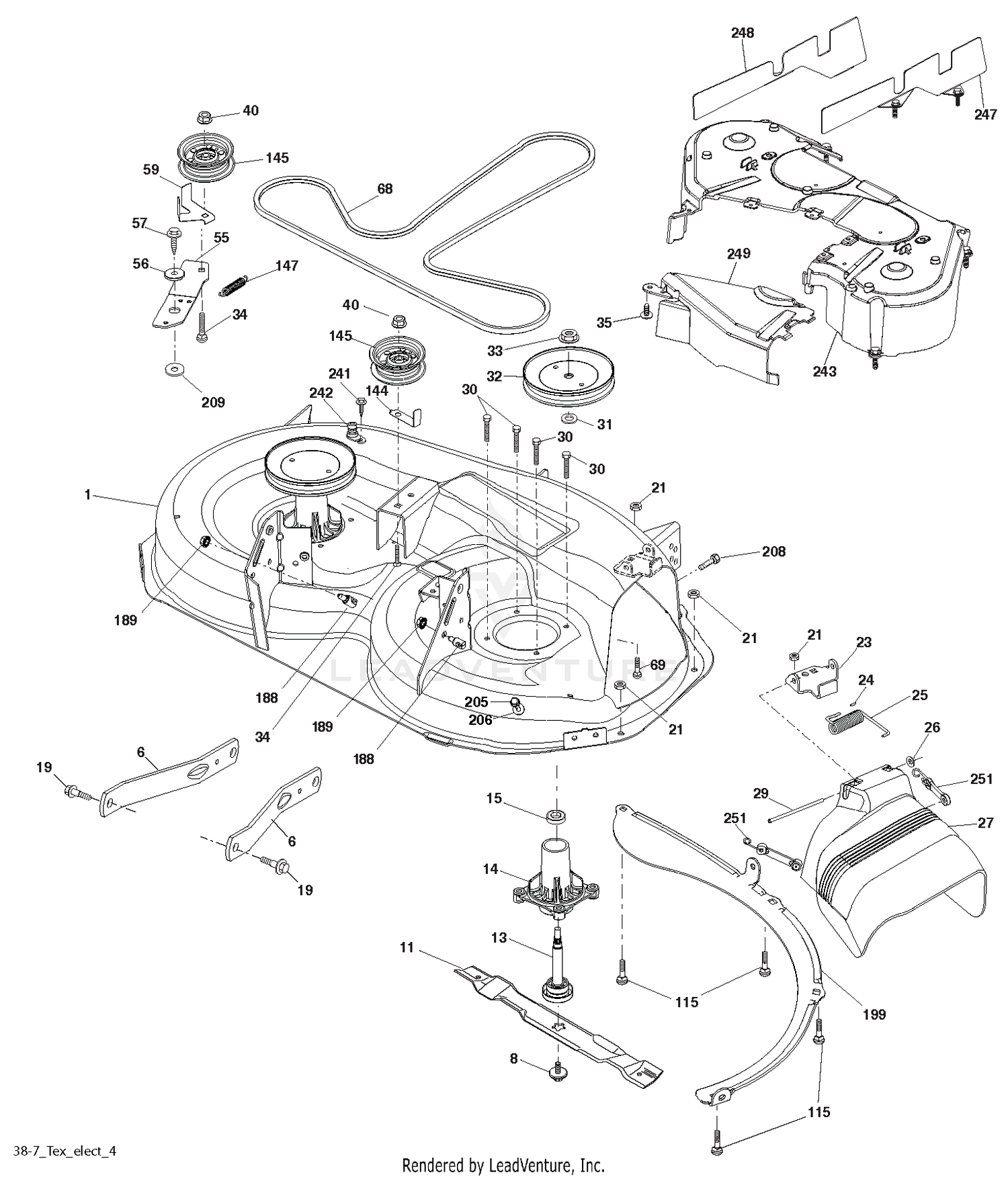

| Ref | Part Number | Description |
|---|
| 1 |
583498001 |
DECK SVCX1.38"194251X418 KIT This part replaces 532444163. Price: $249.99 |
| 1 |
74-3580 |
DISCONTINUED Price: Call Us |
| 2 |
109-0310 |
HOSE-FUEL This part replaces 62-2470. Price: $6.09 |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 4 |
108-3831 |
FILTER-FUEL This part replaces 18-1520. Price: $10.09 |
| 5 |
110-0047 |
HOSE-FUEL This part replaces 56-2240. Price: $12.42 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 6 |
56-2520 |
FITTING-SHUT OFF, FUEL Price: $31.19 |
| 7 |
56-2230 |
HOSE-FUEL Price: $3.66 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 10 |
55-3570 |
GAS CAP ASM Price: $13.99 |
| 11 |
237-136 |
GROMMET Price: $3.52 |
| 11 |
581116302 |
BLADE.2 IN 1.38"DECK.BLACK This part replaces 532193957. Price: $14.99 |
| 12 |
62-2210-01 |
FUEL TANK BASE WA This part replaces 62-2210. Price: $194.64 |
| 13 |
3250-36 |
SCREW-PPH Price: $2.41 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
323-6 |
SCREW-HH Price: $0.66 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
62-2190 |
PLAIN WASHER Price: $1.33 |
| 18 |
5-0698 |
KEY Price: $2.30 |
| 19 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 20 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3-8516 |
DISCONTINUED Price: Call Us |
| 23 |
3218-2 |
NUT-JAM Price: $0.25 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 25 |
61-9390-01 |
STEERING DRUM This part replaces 61-9390. Price: $542.69 |
| 26 |
237-149 |
O-RING Price: $4.86 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 27 |
597316601 |
Shields This part replaces 532401618. Price: $44.99 |
| 29 |
3217-5 |
NUT-HEX Price: $0.25 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
237-148 |
QUAD SEAL RING Price: $7.73 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 31 |
62-2170 |
WASHER-THRUST Price: $4.48 |
| 32 |
532173435 |
MANDREL.PULLEY.38.BRIGHT.ZINC This part replaces 532153532. Price: $19.99 |
| 32 |
62-2220 |
DISCONTINUED Price: Call Us |
| 33 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
5-3934 |
BOLT-CASTER Price: $55.92 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 35 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 36 |
253-111 |
SEAL-OIL Price: $6.87 |
| 37 |
254-78 |
BEARING-CONE Price: $12.22 |
| 38 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 39 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 40 |
75-9440 |
HUB ASM Price: $131.34 |
| 41 |
217-60 |
RIM Price: $110.16 |
| 42 |
28-3680 |
TIRE Price: $118.18 |
| 43 |
232-24 |
STEM-VALVE Price: $4.03 |
| 44 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 45 |
3296-67 |
NUT-LOCK, NI Price: $5.05 |
| 46 |
51-0350 |
PIN-SPRING, SEAT Price: $11.90 |
| 47 |
3-6685 |
SPRING Price: $10.99 |
| 48 |
3284-3 |
PIN-GROOVED Price: $2.24 |
| 49 |
3219-14 |
NUT-HEX Price: $0.25 |
| 50 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 51 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 52 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 53 |
28-4210 |
SOLENOID Price: $63.91 |
| 54 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 55 |
10-8120 |
BATTERY BOLT Price: $29.86 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
218-461 |
NUT-HH Price: $2.50 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 58 |
237-7 |
O-RING Price: $8.82 |
| 59 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 61 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 62 |
43-8610 |
GUIDE Price: $23.35 |
| 63 |
237-30 |
O-RING Price: $2.50 |
| 64 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 65 |
104-8162 |
BATTERY-DRY This part replaces 28-1400. Price: $114.99 |
| 68 |
583591101 |
BELT.38ELECTRICAL.DECK.DRIVE This part replaces 532447559. Price: $59.99 |
| 69 |
28-8080 |
BOOT-TERMINAL Price: $22.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
321-3 |
SCREW-HH Price: $0.28 |
| 71 |
100-6434 |
ROD-HOLD DOWN, BATTERY This part replaces 72-4790. Price: $10.10 |
| 72 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 73 |
32103-12 |
NUT-WING Price: $1.15 |
| 74 |
92-1707 |
DISCONTINUED Price: Call Us |
| 75 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 76 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 77 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 78 |
92-1699 |
DISCONTINUED Price: Call Us |
| 115 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872110505. Price: $2.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532197251 |
SPRING.MOWER.DRIVE.ELECTRIC Price: $9.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 199 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT This part replaces 532400095. Price: $14.99 |
| 205 |
817640416 |
This part replaces 817490416. Price: $1.92 |
| 206 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $3.99 |
| 209 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 243 |
532432363 |
Price: Call Us |
| 247 |
590528901 |
Guards This part replaces 532432361. Price: $7.99 |
| 248 |
583479201 |
ASSY.SHIELD.DECK.38 This part replaces 532432360. Price: $22.99 |
| 251 |
583508201 |
KIT.STRAP.BUNGEE.DEFLECTOR.SVC This part replaces 532436087. Price: $7.99 |
