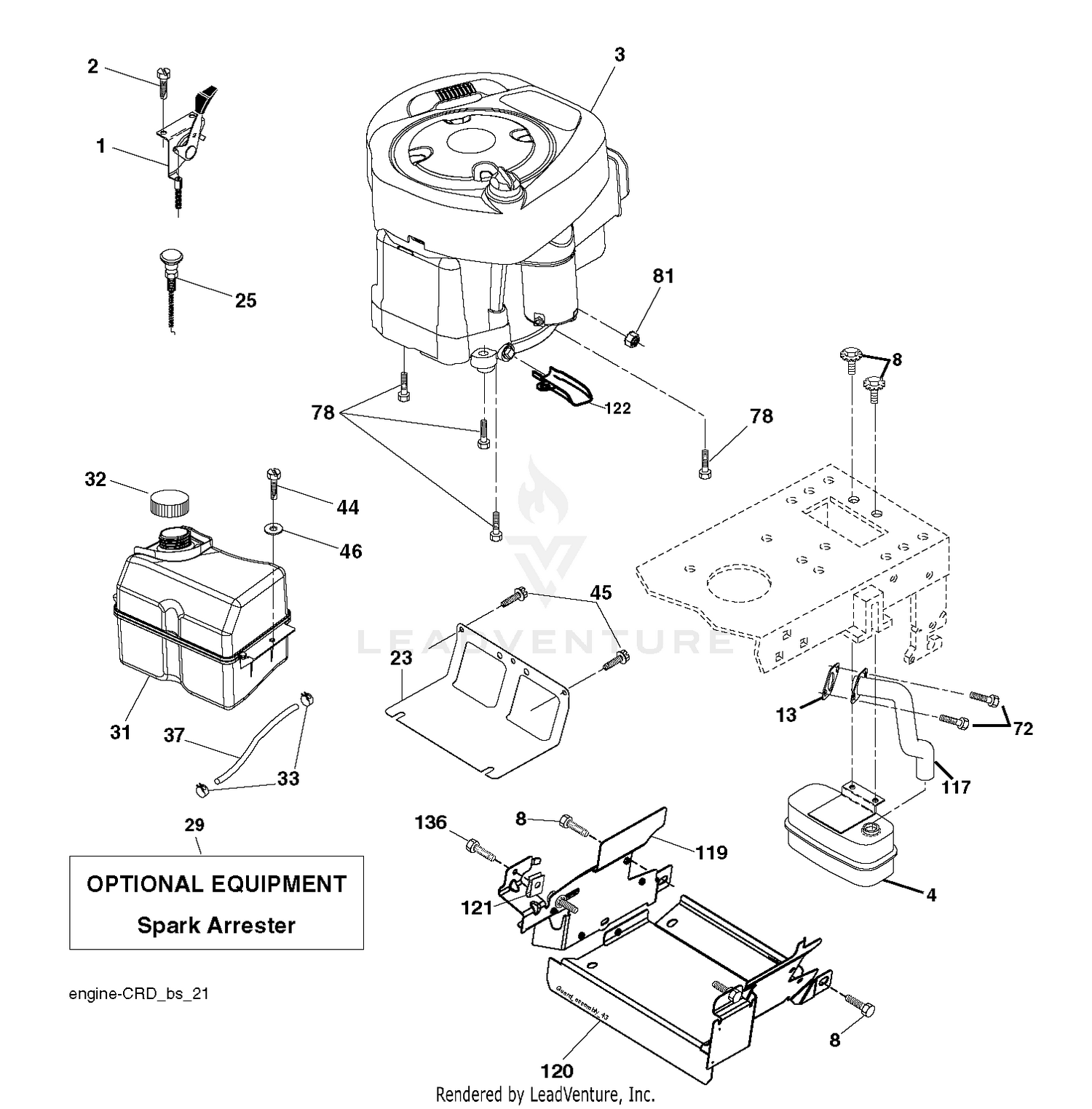

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL TH/CH FLAG Price: $22.99 |
| 2 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 817720408. Price: $1.99 |
| 4 |
532188655 |
MUFFLER.SINGLE.CYL.KOHL/B&S Price: $27.99 |
| 8 |
532171877 |
BOLT, 5/16-18 X 1 3/4 Price: $3.99 |
| 010 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 13 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 020 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 23 |
532169837 |
SHEILD.BROWNING.DBR.GUARD Price: $7.99 |
| 25 |
532190695 |
Price: $2.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532430825. Price: $54.99 |
| 32 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 46 |
819091416 |
WASHER Price: $3.99 |
| 050 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 060 |
98-7692 |
BOLT Price: $0.92 |
| 070 |
98-9356 |
BOLT Price: $2.06 |
| 72 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 080 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 81 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 090 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 100 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 110 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 117 |
532405450 |
EXHAUST.TUBE.B&S. Price: $26.99 |
| 119 |
532199768 |
Price: $6.99 |
| 120 |
532199767 |
Price: $12.99 |
| 120 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 121 |
532196688 |
CLIPS Price: $2.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $2.99 |
| 130 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
