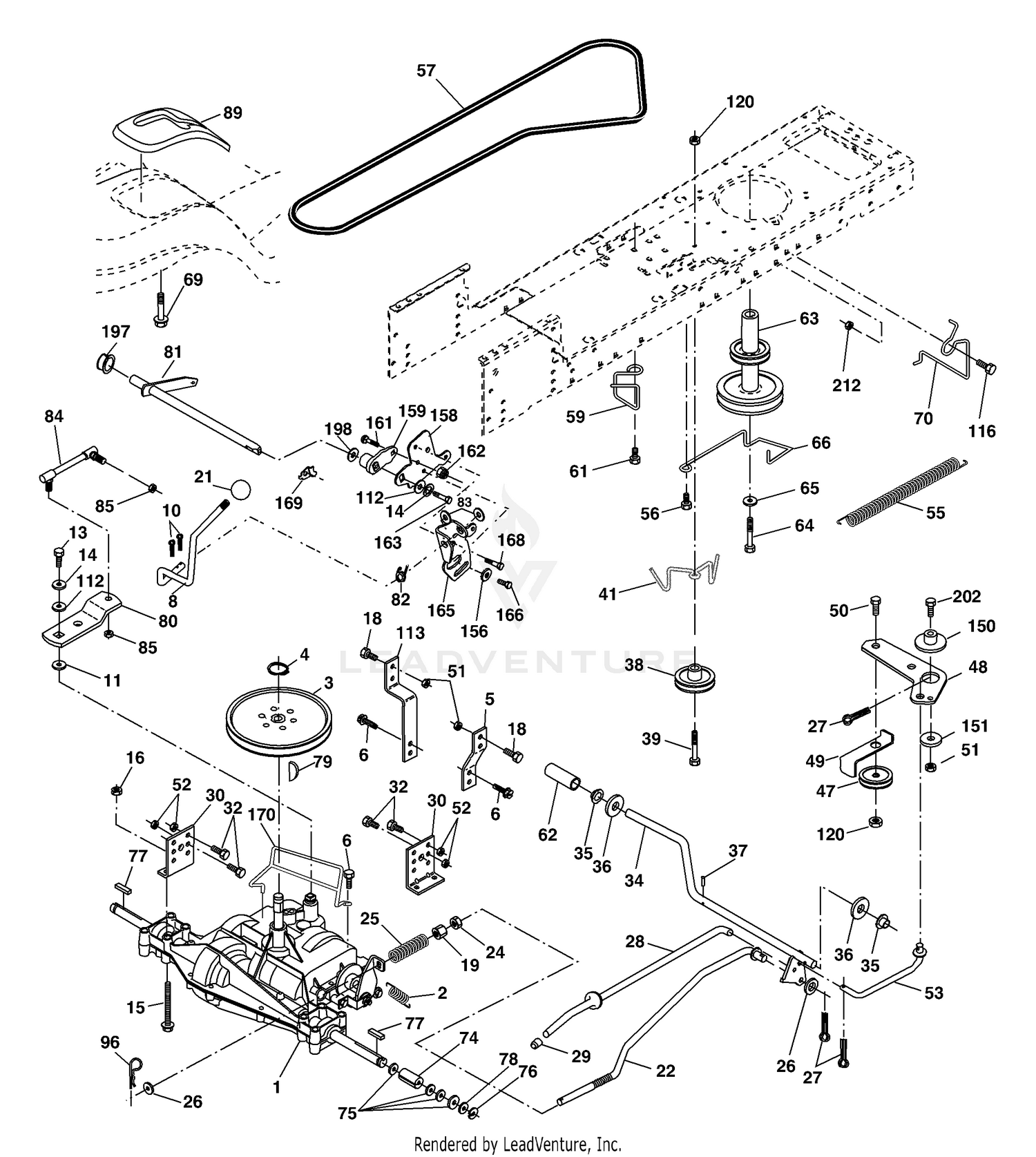

| Ref | Part Number | Description |
|---|
| 1 |
70-4480 |
SHAFT Price: $113.68 |
| 2 |
146682 |
Spring Return Brake T/a Zinc Price: Call Us |
| 2 |
70-4470 |
LEVER Price: $116.24 |
| 3 |
123666X |
Pulley Transaxle 18" tires Price: Call Us |
| 3 |
70-4490 |
CUP Price: $18.12 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
70-4510 |
SPRING Price: $8.53 |
| 5 |
121520X |
Strap Torque 30 Degrees Price: Call Us |
| 5 |
70-4520 |
SPRING Price: $8.25 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 6 |
70-4500 |
SPRING Price: $4.31 |
| 7 |
70-4460 |
PLATE Price: $11.24 |
| 8 |
165619 |
Rod Shift Fender Adjust Lt Price: Call Us |
| 8 |
70-6510 |
O-RING Price: $3.46 |
| 9 |
70-4230 |
BUSHING Price: $22.98 |
| 10 |
70-4580 |
CAP Price: $3.29 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
70-4360 |
PLUG Price: $9.65 |
| 12 |
70-4350 |
SHAFT Price: $11.57 |
| 13 |
70-4400 |
COVER Price: $264.67 |
| 13 |
74550412 |
Bolt 1/4-28 unf Gr. 8 W/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
70-6740 |
BOLT Price: $3.97 |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 15 |
99-2251 |
CAPSULE Price: $5.91 |
| 16 |
70-3890 |
WASHER Price: $4.45 |
| 16 |
73800500 |
Nut Lock Hex w/ins 5/16-18 Price: Call Us |
| 17 |
70-4310 |
NUT Price: $3.39 |
| 18 |
70-4440 |
NUT Price: $14.24 |
| 18 |
74780616 |
Bolt, Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 19 |
70-6540 |
BOLT Price: $3.73 |
| 19 |
73800600 |
Nut Lock 3/8-16 unc Price: Call Us |
| 20 |
99-2254 |
DISCONTINUED Price: Call Us |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
99-2248 |
NUT - CAP Price: $15.91 |
| 22 |
130804 |
Rod Brake Blk Zinc 26 840 Price: Call Us |
| 22 |
70-6690 |
WASHER Price: $2.18 |
| 23 |
99-2260 |
NUT - HEXAGON Price: $2.57 |
| 24 |
70-6500 |
O-RING Price: $2.10 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 25 |
70-4330 |
BUSHING Price: $19.24 |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 26 |
99-2255 |
BOLT W/WASHER Price: $3.80 |
| 27 |
70-4430 |
SCREW Price: $8.39 |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
70-6560 |
NUT Price: $3.28 |
| 29 |
70-6790 |
PACKING Price: $12.55 |
| 29 |
71673 |
Cap Brake Parking Price: Call Us |
| 30 |
174973 |
Bracket Mtg Transaxle Price: Call Us |
| 30 |
70-6750 |
BOLT Price: $4.49 |
| 31 |
70-6920 |
SEAL Price: $7.99 |
| 32 |
74760512 |
Bolt Hex Hd 5/16-18 unc x 3/4 Price: Call Us |
| 32 |
99-2253 |
LEVER - ADJUSTING Price: $161.01 |
| 33 |
70-6730 |
BOLT Price: $3.57 |
| 34 |
175578 |
Shaft Asm Pedal Foot Price: Call Us |
| 34 |
70-4530 |
COVER Price: $7.00 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 35 |
70-4570 |
STOP LEVER SUB ASSEMBLY Price: $39.29 |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Ga Price: Call Us |
| 36 |
70-6520 |
BOLT Price: $4.01 |
| 37 |
1572H |
Pin Roll 3/16 x 1" Price: Call Us |
| 37 |
99-2249 |
LEVER - TENSION Price: $320.66 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 38 |
70-4370 |
SPRING Price: $14.33 |
| 39 |
70-4320 |
LEVER ASSEMBLY Price: $165.41 |
| 39 |
72110622 |
Bolt Fin Hex 3/8-16 unc x 2-3/4 Price: Call Us |
| 40 |
70-4540 |
SLIDER Price: $19.04 |
| 41 |
175556 |
Keeper Belt Flat Idler Price: Call Us |
| 41 |
70-6610 |
WASHER Price: $2.56 |
| 41 |
70-6620 |
WASHER Price: $1.96 |
| 41 |
70-6630 |
WASHER Price: $1.96 |
| 41 |
70-6640 |
WASHER Price: $1.96 |
| 41 |
70-6650 |
WASHER Price: $2.56 |
| 42 |
70-6490 |
RING Price: $3.41 |
| 43 |
70-4200 |
PLATE Price: $40.89 |
| 44 |
70-4190 |
SLEEVE Price: $175.44 |
| 45 |
70-4180 |
NUT Price: $5.36 |
| 46 |
70-6670 |
WASHER Price: $2.15 |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 47 |
70-4170 |
FLYWEIGHT ASSEMBLY Price: $454.50 |
| 48 |
154407 |
Bellcrank Asm Price: Call Us |
| 48 |
99-2258 |
GASKET Price: $6.19 |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 49 |
99-2250 |
NUT - HEXAGON Price: $1.69 |
| 50 |
72110612 |
Bolt Carr. Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 50 |
99-2247 |
SCREW - ADJUST Price: $10.98 |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 51 |
99-2259 |
GASKET Price: $6.30 |
| 52 |
70-6870 |
KEY Price: $10.53 |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
105710X |
Link Clutch Price: Call Us |
| 53 |
99-2246 |
HOUSING - GOVERNOR Price: $281.28 |
| 54 |
70-6710 |
WASHER Price: $4.69 |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 55 |
70-4590 |
PLUG Price: $14.04 |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 56 |
70-4210 |
PLATE Price: $17.61 |
| 57 |
130801 |
V-Belt Ground Drive 95 25 Price: Call Us |
| 57 |
70-6810 |
WASHER Price: $5.36 |
| 58 |
99-2252 |
LEVER - SWIVELLING Price: $121.27 |
| 59 |
169691 |
Keeper Belt Span Ctr Price: Call Us |
| 59 |
70-6860 |
KEY Price: $10.53 |
| 60 |
70-4380 |
SPRING Price: $5.21 |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 61 |
70-4340 |
SHACKLE ASSEMBLY Price: $38.08 |
| 62 |
70-6480 |
PIN Price: $1.83 |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley Price: Call Us |
| 63 |
99-2257 |
SPRING Price: $3.00 |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr Price: Call Us |
| 64 |
70-6890 |
O-RING Price: $4.85 |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 65 |
99-2256 |
BUSHING - BEARING Price: $27.39 |
| 66 |
154778 |
Keeper Belt Engine Foolproof Price: Call Us |
| 66 |
70-4410 |
PIN Price: $5.36 |
| 69 |
142432 |
Screw Hex wsh Hi Lo 1/4 x 1/2 unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 x 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 x 3/4 Price: Call Us |
| 80 |
131486 |
Arm Shift Price: Call Us |
| 81 |
165594 |
Shaft Asm Cross Tap. PMST/20 Price: Call Us |
| 82 |
123782X |
Spring Torsion T/a Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
166228 |
Link Transaxle PMST/18" Zinc Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4 - 28 FNTHD Price: Call Us |
| 89 |
169372X428 |
Console Shift STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque LT Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Tapered Flange Shift Lt Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
187414 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
| 202 |
72110614 |
Bolt Rd Hd 3/8-16 unc x 1-3/4 Gr. 5 Price: Call Us |
