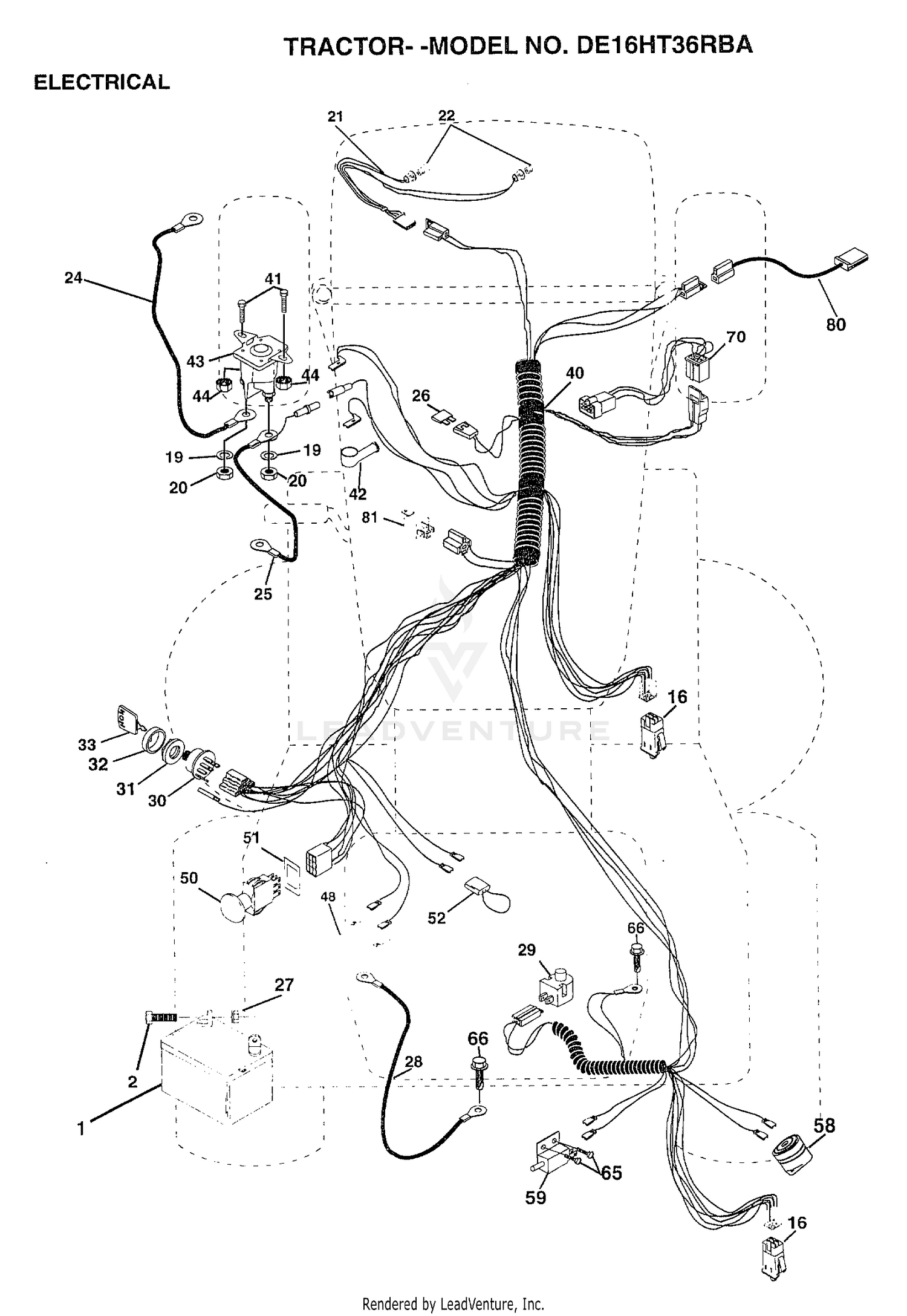

| Ref | Part Number | Description |
|---|
| REFER |
REFER |
TO IMAGE Price: Call Us |
| 1 |
144925 |
SUB= 123899X Price: Call Us |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 4 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 5 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 6 |
46-8840-01 |
SPRING-LIFT ARM Price: $35.71 |
| 8 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 9 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 10 |
110-9672 |
SCREW-HH Price: $2.24 |
| 11 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 12 |
21-2860-01 |
PUSH ARM BRACKET ASM Price: $154.46 |
| 13 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 14 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 15 |
117-6998 |
NUT-HF This part replaces 110-9671. Price: $1.36 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 17 |
21-2900-01 |
SPRING-TORSION, LH Price: $566.83 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
21-2890-01 |
SPRING-TORSION, RH Price: $566.83 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
166181 |
HARNESS.ASM.LIGHT W/4152J Price: Call Us |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
99-1299-03 |
ROPS-2 POST Price: $2,264.78 |
| 23 |
3-1365 |
CHAIN Price: $72.97 |
| 24 |
108423X |
CABLE ASM. Price: Call Us |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 25 |
165987 |
CABLE.BATTERY.CRD Price: Call Us |
| 25 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 26 |
166180 |
FUSE.15 AMP Price: Call Us |
| 26 |
3212-4 |
SCREW-HH Price: $2.73 |
| 27 |
328-12 |
SCREW-HH Price: $9.77 |
| 27 |
73510400 |
NUT Price: Call Us |
| 28 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 29 |
160784 |
SWITCH.PLUNGER Price: Call Us |
| 29 |
3217-12 |
NUT-HEX Price: $3.12 |
| 30 |
140301 |
SWITCH IGN 4POS Price: Call Us |
| 30 |
23-1950-01 |
SUPPORT-REINFORCEMENT Price: $69.64 |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 31 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
72-9390 |
BELT-SEAT Price: $140.77 |
| 33 |
122147X |
KEY Price: Call Us |
| 34 |
24-9510 |
PIN Price: $77.49 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 36 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 37 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 38 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 40 |
166158 |
HARNESS.IGN.CRD.ELECT Price: Call Us |
| 41 |
2412-133 |
CLAMP-R Price: $3.19 |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
110-9673 |
SCREW-HH Price: $2.22 |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 50 |
154959 |
PTO SWITCH.BLK Price: Call Us |
| 51 |
140405 |
RING RETAIN PTO Price: Call Us |
| 52 |
141940 |
PROTECTION LOOP Price: Call Us |
| 58 |
165943 |
BUZZER CRD Price: Call Us |
| 59 |
166299 |
SWITCH.FBI.CRD Price: Call Us |
| 65 |
17211008 |
SCREW Price: Call Us |
| 66 |
17490608 |
SCREW LT Price: Call Us |
| 70 |
166661 |
HARNESS.ENG.TEC/KOHL Price: Call Us |
| 80 |
146685 |
HARNESS.CLUT.EVX. Price: Call Us |
