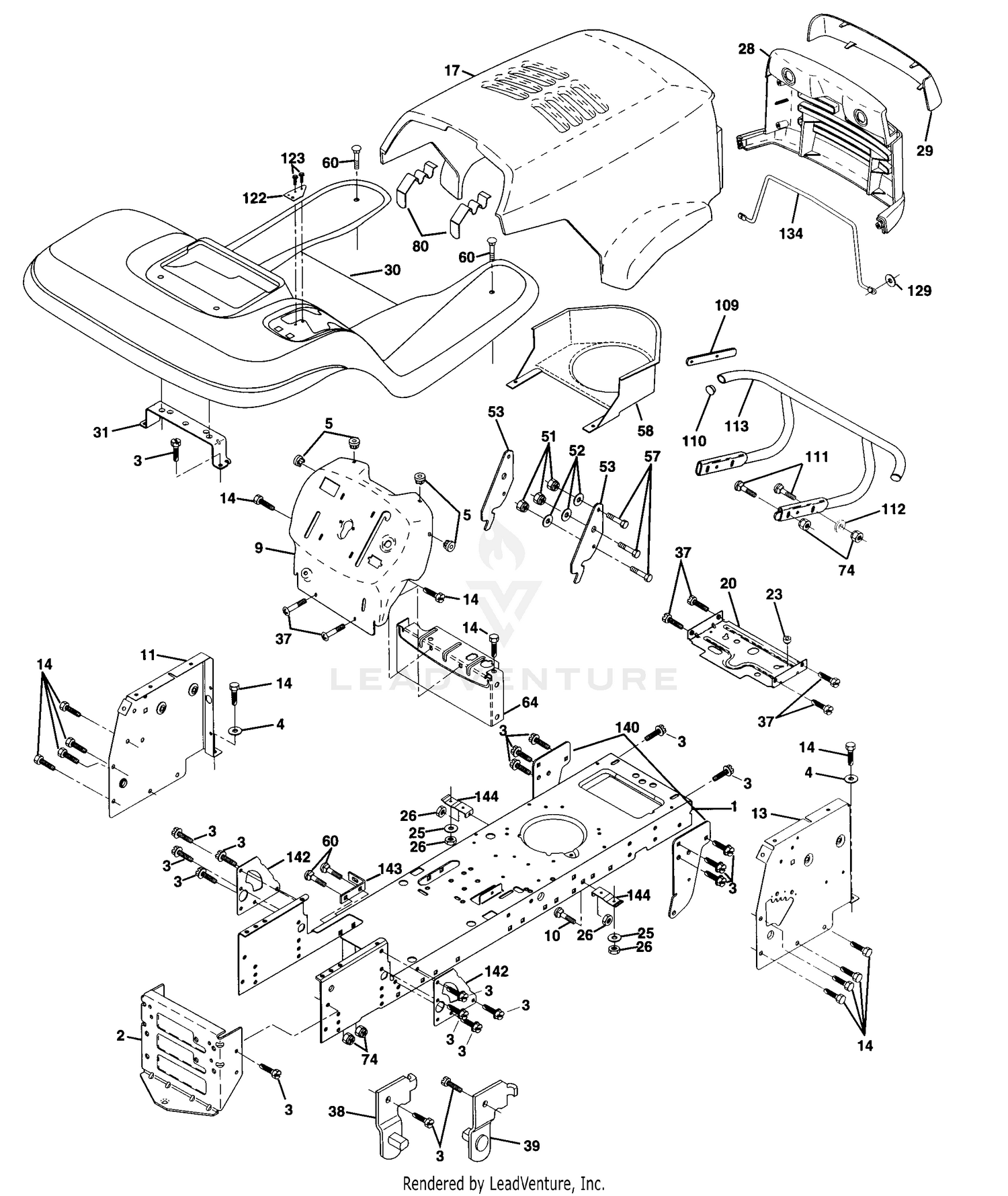

| Ref | Part Number | Description |
|---|
| 1 |
27-6861 |
SHAFT-FLANGED AXLE, LH Price: $984.28 |
| 1 |
532160525 |
CHASSIS KIT This part replaces 532153871. Price: $88.41 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 4 |
819131216 |
Washer 13/32 x 3/4 x 16 Ga. Price: $2.99 |
| 5 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 5 |
532155272 |
BUMPER.RUBBER.HOOD Price: $3.99 |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 9 |
532150154 |
DASHBOARD This part replaces 532157409. Price: $35.99 |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 10 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 11 |
532174996 |
PANEL.DASH.LH.LTX This part replaces 532155927. Price: $9.99 |
| 12 |
94-6935 |
LOCKNUT Price: $1.09 |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 13 |
532172107 |
DASH PANEL ASM. This part replaces 532157262. Price: $9.99 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 16 |
84-8600 |
SET-SHOES, LINED Price: $131.50 |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 17 |
532156051 |
HOOD - LT/YT Price: $549.99 |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 19 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 20 |
532180679 |
PLATE MTG.BATTERY/FUEL TANK This part replaces 532156437. Price: $9.99 |
| 21 |
94-6934 |
SCREW-HH Price: $6.99 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 23 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 23 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 25 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 28 |
532156880 |
GRILLE.LT.P/L HUSQVARNA.SERVIC This part replaces 532149776. Price: $256.99 |
| 29 |
532149777 |
LENS LT/PL HUSQVARNA Price: $24.99 |
| 30 |
532192813 |
FENDER W/OUT CUP HOLDER This part replaces 532156489. Price: $125.54 |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $14.99 |
| 37 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $6.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $6.99 |
| 51 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 52 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 53 |
532150067 |
BRACKET PNT PICK OFF LT/PL Price: $1.64 |
| 57 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 58 |
532150127 |
AIR DUCT P/L/LT Price: $13.99 |
| 60 |
872140606 |
Bolt Rdhd Sqnk 3/8-16unc x 3/4 Price: $4.99 |
| 64 |
532154798 |
DASH LOWER Price: $17.99 |
| 74 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 80 |
532155854 |
LATCH HOOD Price: $3.99 |
| 109 |
532170310 |
BUMPER BRACKET This part replaces 532141461. Price: $4.99 |
| 110 |
532143679 |
PLUG PLASTIC Price: $2.99 |
| 111 |
872140612 |
Bolt RDHD 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 112 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 113 |
532170311 |
BUMPER ASM. This part replaces 532150300. Price: $127.99 |
| 129 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 134 |
532150132 |
ROD SUPPORT HOOD LT/PL HUSQ Price: $7.99 |
| 140 |
532158418 |
BRACKET SUSPENSION FRONT This part replaces 532150556. Price: $7.99 |
| 142 |
532175702 |
PLATE REINFORCEMENT This part replaces 532156095. Price: $7.99 |
| 143 |
532186689 |
BRACKET, SWAYBAR CHASSIS This part replaces 532154966. Price: $5.99 |
| 144 |
532175582 |
BRKT, FOOT REST This part replaces 532154207. Price: $4.99 |
| 146 |
532154334 |
SCREW TORX HD 5/16X18 Price: $2.99 |
