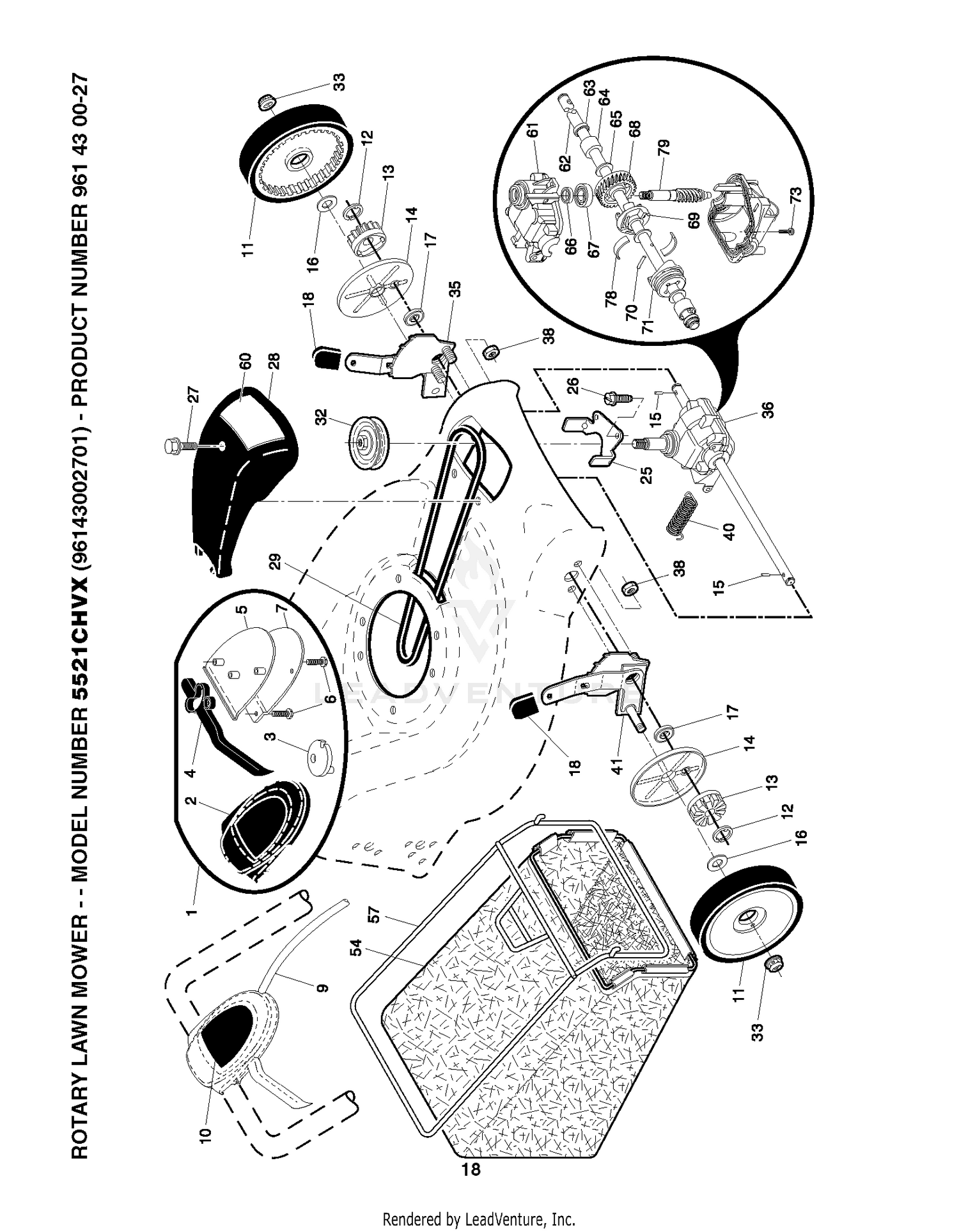

| Ref | Part Number | Description |
|---|
| 1 |
532425580 |
CONTROL.DR.AW.FWGD.GRY/BLACK This part replaces 532407316. Price: $59.99 |
| 2 |
532406260 |
COVER TOP AUTO WALK CONTROL This part replaces 532411673. Price: $12.99 |
| 3 |
532406262 |
PULLEY.CAM.DRIVE.CONTROL.EZ This part replaces 532406282. Price: $7.99 |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 5 |
532406261 |
COVER BOTTOM AUTO WLK CONTROL This part replaces 532411664. Price: $12.99 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 10 |
532189378 |
DECAL, DRIVE Price: $29.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE This part replaces 532191017. Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532404831. Price: $12.99 |
| 18 |
532185574 |
SELECTOR KNOB Price: $5.99 |
| 25 |
532431711 |
BRACKET.BELT.GUIDE.22+FGD.BZP This part replaces 532411663. Price: $2.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 29 |
532194149 |
BELT.DRIVE.FG Price: $19.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 36 |
532404833 |
TRANSMISSION.21.FGD.HT.VST Price: $119.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532406558 |
SPRING Price: $6.99 |
| 54 |
580953406 |
GBAG.34710090.H-GREY MS498 This part replaces 532401190. Price: $54.99 |
| 57 |
532411950 |
FRAME.GBAG.21.FWGD This part replaces 532401802. Price: $64.99 |
| 60 |
532193557 |
DECAL DRIVE COVER Price: $7.99 |
| 61 |
532410726 |
CASE.UPPER.00254(SERVICE) Price: $12.99 |
| 62 |
532410949 |
SHAFT OUTPUT (12289) Price: $54.99 |
| 63 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 64 |
532183511 |
BUSHING Price: $4.99 |
| 65 |
532183509 |
WASHER Price: $3.99 |
| 66 |
532183514 |
SEAL INPUT SHAFT Price: $6.99 |
| 67 |
532183506 |
BEARING Price: $5.99 |
| 68 |
532410729 |
GEAR 28 TEETH 36208 Price: $11.99 |
| 69 |
532410732 |
FIXED DOG CLUTCH Price: $2.99 |
| 70 |
532412746 |
PIN 3.50.337 - 33733 This part replaces 532410733. Price: $7.99 |
| 71 |
532410730 |
MOVEABLE DOG CLUTCH Price: $6.99 |
| 73 |
532183513 |
SCREW Price: $3.99 |
| 78 |
532410731 |
SPRING LEAF Price: $2.99 |
| 79 |
532410727 |
SHAFT WORM Price: $19.99 |
