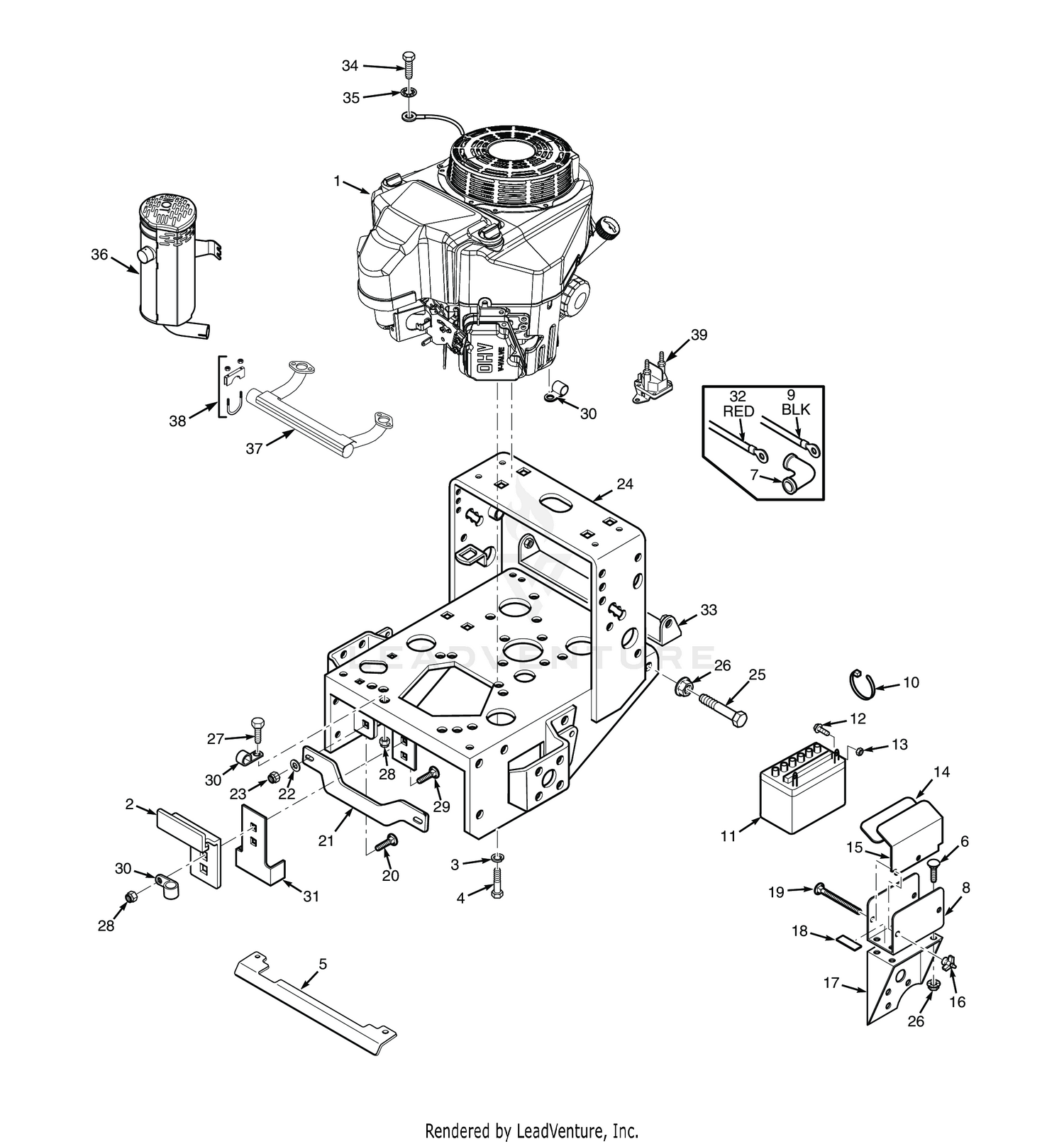

| Ref | Part Number | Description |
|---|
| 2 |
424620 |
Plate, Clutch Bracket Price: Call Us |
| 3 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 4 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 5 |
424730 |
Heatshield, 20" Large Frame Price: Call Us |
| 6 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 7 |
48126 |
RUBBER BOOT Price: Call Us |
| 8 |
423308 |
Plate, Battery Box Price: Call Us |
| 9 |
48029-14 |
Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki Price: Call Us |
| 10 |
48028-05 |
Cable Tie, .19 x 8.0" Price: Call Us |
| 12 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 13 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 14 |
48099 |
INSULATION, BATTERY COVER Price: Call Us |
| 15 |
42392 |
Battery Box Cover Price: Call Us |
| 16 |
04029-01 |
ELASTIC STOP WINGNUT, 1/4-20 Price: Call Us |
| 17 |
423746 |
Battery Support Price: Call Us |
| 18 |
48661 |
PAD, BATTERY SUPPORT Price: Call Us |
| 19 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 20 |
04003-11 |
SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4" Price: Call Us |
| 21 |
424009 |
Brace, (20" Large Frame) Price: Call Us |
| 22 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 23 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 24 |
462288 |
Engine Deck (20" Wide) with Decals - Large Frame Price: Call Us |
| 25 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2-1/2" (x3) (35BV & 37BV-EFI) Price: Call Us |
| 26 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 27 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 28 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 29 |
04003-04 |
Bolt, Carriage 5/16-18x1" (large frame units only) Price: Call Us |
| 30 |
48030-09 |
Clamp, Cable 1/2" I.D. Price: Call Us |
| 31 |
421370 |
Plate, Clutch Anti-Rotation Price: Call Us |
| 32 |
48029-06 |
Battery Cable, 18.0" Red Price: Call Us |
| 32 |
48029-13 |
Battery Cable, 25" Red (Kawasaki) Price: Call Us |
| 33 |
45419 |
Pulley Guard, 20" Large Frame Price: Call Us |
| 34 |
04002-06 |
Bolt, Hex Head M8 - 1.25 x 16 (48V / 52V) Price: Call Us |
| 35 |
04031-03 |
Lockwasher, 5/16" Ext. Tooth (Kohler x1) Price: Call Us |
| 36 |
485571 |
Muffler, Kawasaki (FS651) - SWZT61 Price: Call Us |
| 37 |
485572 |
Manifold, Kawasaki (FS651) - SWZT61 Price: Call Us |
| 38 |
481259 |
Clamp, Muffler 1.25 Dia. Kawasaki Price: Call Us |
