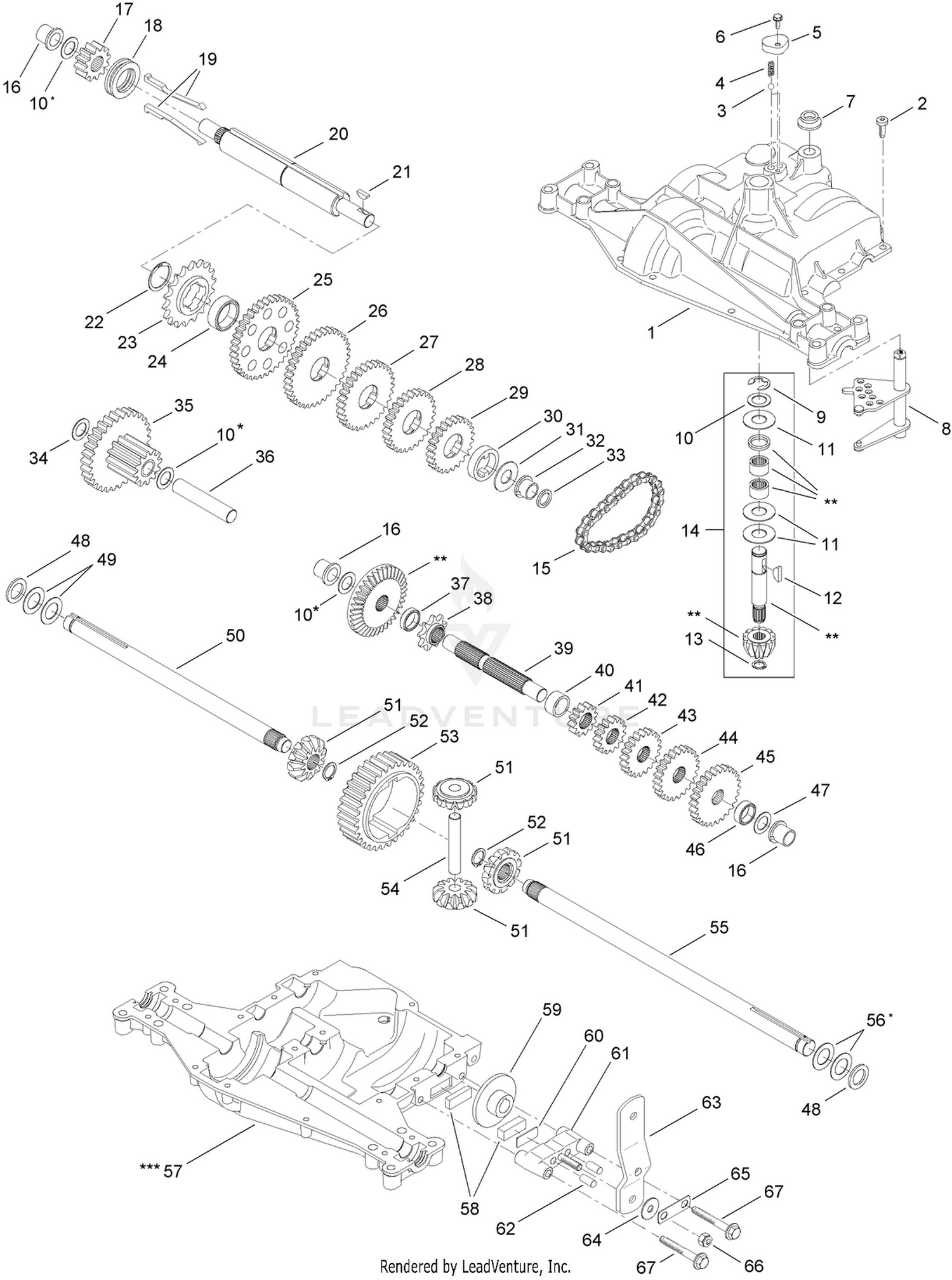

| Ref | Part Number | Description |
|---|
| 1 |
117-0850 |
HOUSING-UPPER Price: Call Us |
| 2 |
110-3153 |
SCREW-TAPPING Price: $2.33 |
| 3 |
110-3154 |
BALL-DETENT Price: $2.49 |
| 4 |
110-3155 |
SPRING-DETENT Price: $2.33 |
| 5 |
110-3156 |
COVER-DETENT Price: $2.36 |
| 6 |
110-3157 |
SCREW-TAPPING Price: $2.33 |
| 7 |
110-3158 |
DISCONTINUED Price: Call Us |
| 8 |
117-0851 |
SHIFTER KIT Price: Call Us |
| 9 |
110-3161 |
RING-RETAINING Price: $2.36 |
| 10 |
110-3162 |
SHIM ASM (.625 SHAFT) Price: $26.15 |
| 11 |
110-3163 |
WASHER-PLAIN Price: $3.35 |
| 12 |
110-3164 |
KEY-WOODRUFF Price: $5.21 |
| 13 |
110-3167 |
RING-RETAINING Price: $2.04 |
| 14 |
117-0852 |
INPUT SHAFT KIT Price: Call Us |
| 15 |
110-3168 |
CHAIN-PITCH, 24 Price: $21.34 |
| 16 |
110-3169 |
BEARING-FLANGE Price: $12.65 |
| 17 |
110-3170 |
GEAR-SPUR, 12T Price: $17.22 |
| 18 |
110-3171 |
COLLAR-CLUTCH Price: $23.82 |
| 19 |
110-3172 |
CLUTCH KEYS ASM Price: $74.68 |
| 20 |
110-3173 |
SHAFT-INTERMEDIATE Price: $147.15 |
| 21 |
110-3174 |
KEY-WOODRUFF Price: $3.58 |
| 22 |
110-3175 |
RING-RETAINING Price: $3.46 |
| 23 |
110-3176 |
SPROCKET-18T Price: $32.38 |
| 24 |
117-0853 |
SPACER Price: Call Us |
| 25 |
117-0854 |
GEAR-SPUR,37T Price: Call Us |
| 26 |
110-3178 |
GEAR-SPUR, 35T Price: $65.24 |
| 27 |
117-0855 |
GEAR-SPUR,30T Price: $47.54 |
| 28 |
117-0856 |
GEAR-SPUR,25T Price: Call Us |
| 29 |
117-0857 |
GEAR-SPUR,22T Price: Call Us |
| 30 |
110-3181 |
DISCONTINUED Price: Call Us |
| 31 |
110-3182 |
WASHER-PLAIN Price: $3.46 |
| 32 |
110-3183 |
BEARING-FLANGE Price: $8.08 |
| 33 |
110-3184 |
SEAL-OIL Price: $2.98 |
| 34 |
110-3185 |
WASHER-PLAIN Price: $2.51 |
| 35 |
110-3186 |
COMBINATION GEAR ASM (12T 30T) Price: $134.78 |
| 36 |
110-3187 |
SHAFT-IDLER Price: $17.76 |
| 37 |
117-0858 |
SPACER Price: Call Us |
| 38 |
110-3190 |
SPROCKET-9T Price: $9.46 |
| 39 |
117-0859 |
SHAFT-DRIVE Price: Call Us |
| 40 |
117-0860 |
SPACER Price: Call Us |
| 41 |
117-0861 |
GEAR-SPUR,12T Price: Call Us |
| 42 |
110-3195 |
GEAR-SPUR, 15T Price: $13.12 |
| 43 |
117-0862 |
GEAR-SPUR,20T Price: Call Us |
| 44 |
117-0863 |
GEAR-SPUR,25T Price: Call Us |
| 45 |
117-0864 |
GEAR-SPUR,28T Price: Call Us |
| 46 |
110-3194 |
SPACER Price: $2.85 |
| 47 |
110-3198 |
WASHER-PLAIN Price: $2.85 |
| 48 |
110-3199 |
WASHER-NEOPRENE Price: $10.31 |
| 49 |
9202574 |
WASHER-FLAT This part replaces 110-3200. Price: $1.79 |
| 50 |
117-0865 |
AXLE-LH Price: Call Us |
| 51 |
117-0866 |
MITER GEAR KIT Price: Call Us |
| 52 |
110-3203 |
RING-RETAINING Price: $0.85 |
| 53 |
110-3204 |
GEAR-SPUR, 32T Price: $127.36 |
| 54 |
110-3205 |
SHAFT-CROSS Price: $12.65 |
| 55 |
117-0867 |
AXLE-RH Price: Call Us |
| 56 |
110-3192 |
SHIM ASM (.750 SHAFT) Price: $37.94 |
| 57 |
110-3208 |
HOUSING-LOWER Price: $281.84 |
| 58 |
117-0868 |
PUCK-BRAKE Price: Call Us |
| 59 |
110-3210 |
DISC-BRAKE Price: $23.36 |
| 60 |
110-3211 |
SPACER-PUCK, BRAKE Price: $2.28 |
| 61 |
110-3212 |
JAW-BRAKE Price: $51.40 |
| 62 |
110-3213 |
PIN-DOWEL Price: $12.26 |
| 63 |
117-0869 |
LEVER-ACTUATING Price: Call Us |
| 64 |
110-3215 |
WASHER-PLAIN Price: $6.21 |
| 65 |
110-3216 |
BRACKET-ROTATION, ANTI Price: $5.04 |
| 66 |
110-3218 |
NUT-LOCK Price: $3.58 |
