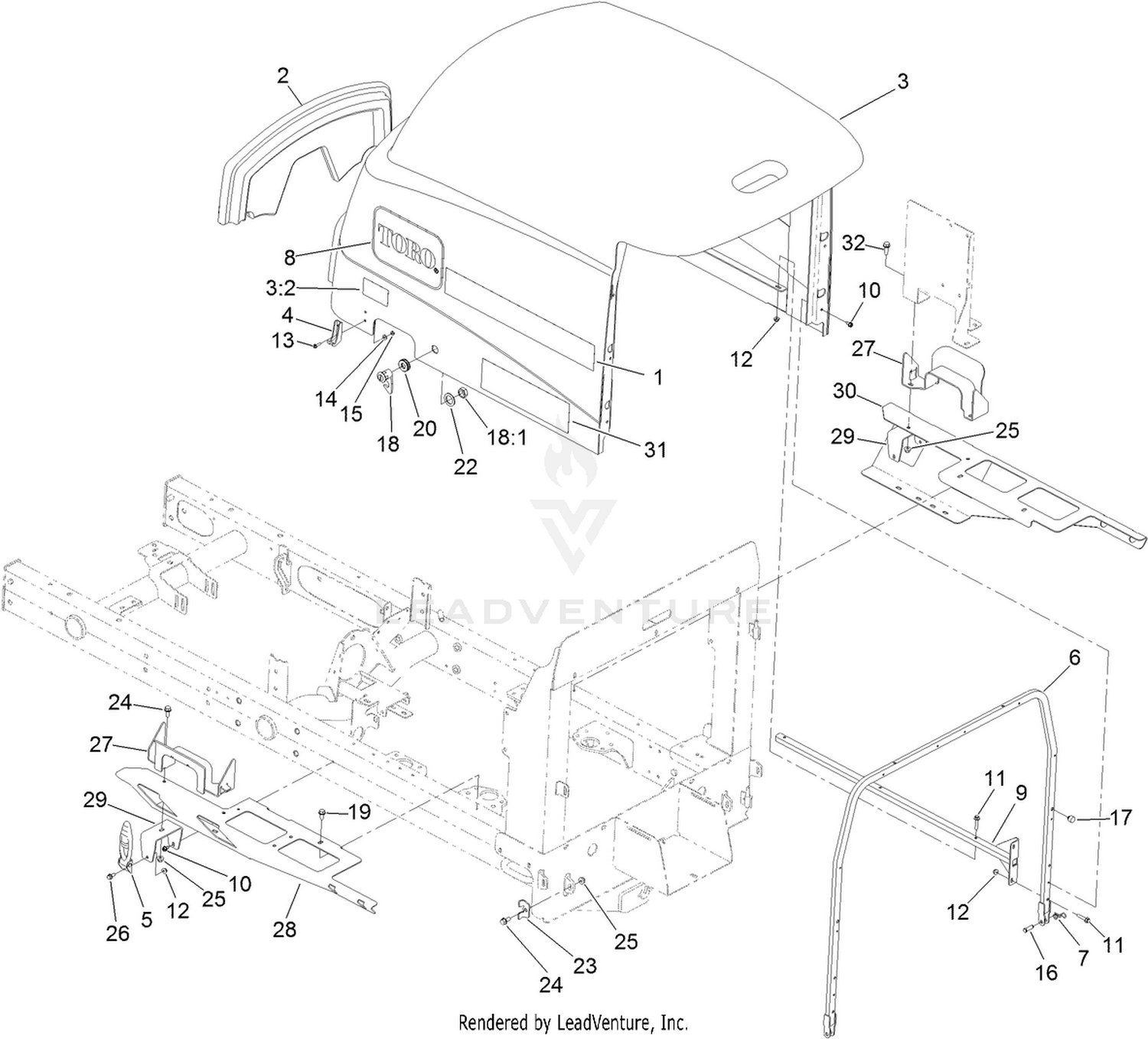

Hood Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-0173 | DECAL Price: $41.49 |
| 2 | 108-7587 | SADDLE-HOOD Price: $151.95 |
| 3 | 121-5616 | HOOD ASM Price: $2,580.84 |
| 4 | 103-2897 | LATCH-CATCH Price: $7.99 |
| 5 | 103-2898 | LATCH-RUBBER Price: $32.99 |
| 6 | 125-8813-03 | TUBE-FRAME, HOOD Price: $135.28 |
| 7 | 105-7512 | PIN-TIE, BOW Price: $4.27 |
| 8 | 66-6140 | DECAL Price: $25.48 |
| 9 | 108-1790-03 | TUBE Price: $95.49 |
| 10 | 32104-17 | SCREW-HWH Price: $0.99 |
| 11 | 3234-21 | SCREW-HHF Price: $2.19 |
| 12 | 104-7201 | NUT-HF Price: $0.69 |
| 13 | 32105-13 | SCREW-HWH Price: $1.59 |
| 14 | 3256-14 | WASHER-FLAT Price: $0.39 |
| 15 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 16 | 283-61 | PIN-YOKE Price: $1.56 |
| 17 | 107-8042 | BUMPER-RUBBER Price: $1.30 |
| 18 | 98-5398 | LATCH Price: $32.53 |
| 19 | 32104-32 | SCREW-HWH Price: $1.99 |
| 20 | 104-1453 | GROMMET Price: $6.57 |
| 22 | 99-4958 | SPACER Price: $2.39 |
| 23 | 110-8946 | CLAMP-FRAME, RADIATOR Price: $7.87 |
| 24 | 3234-5 | SCREW-HHF Price: $0.42 |
| 25 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 26 | 3234-33 | SCREW-HHF Price: $0.79 |
| 27 | 121-5627-03 | GUIDE-HOOD Price: $85.06 |
| 28 | 110-5253-01 | ADAPTER-HOOD, LH Price: $137.45 |
| 29 | 110-5256-01 | BRACKET-LATCH, HOOD Price: $28.55 |
| 30 | 110-5254-01 | ADAPTER-HOOD, RH Price: $137.47 |
| 31 | 110-8859 | DECAL Price: $31.04 |
