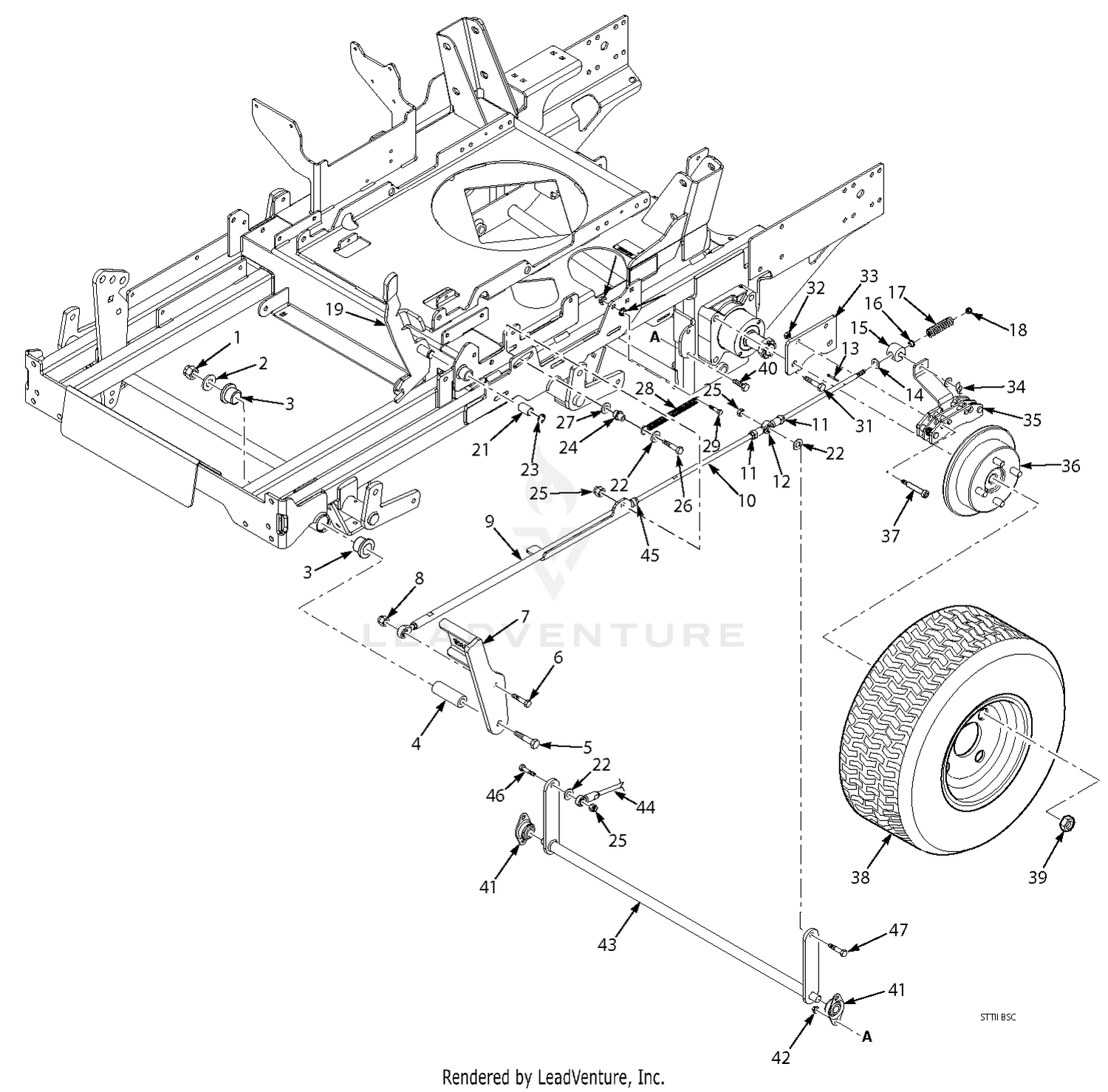

| Ref | Part Number | Description |
|---|
| 1 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 2 |
04040-13 |
Flatwasher, 1/2-.562 x 1.375 x .109 Price: Call Us |
| 3 |
483453-03 |
Bearing Price: Call Us |
| 4 |
43872 |
Sleeve, Brake Pivot Price: Call Us |
| 5 |
04001-194 |
Bolt, Hex Head 1/2-13 x 4-1/4" Price: Call Us |
| 6 |
04001-22 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 7 |
425703 |
Foot Pedal, Brake Price: Call Us |
| 8 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 9 |
462842 |
Linkage Assy., Brake Price: Call Us |
| 11 |
04020-25 |
Nut, Jam 3/8-24 UNF Price: Call Us |
| 12 |
485620 |
Rod End w/Trunion Price: Call Us |
| 13 |
04061-02 |
Cotter Pin, 3/32 x .75 Price: Call Us |
| 14 |
04040-05 |
Flatwasher, 3/8-.406 x .812 x .065 Price: Call Us |
| 16 |
483453-23 |
Bearing Price: Call Us |
| 17 |
484535 |
Spring, Brake Price: Call Us |
| 19 |
462910 |
BRAKE HANDLE W/ GRIP This part replaces 462855. Price: Call Us |
| 19 |
482102 |
Grip Price: Call Us |
| 20 |
43572 |
Spacer Price: Call Us |
| 21 |
483453-14 |
Bearing Price: Call Us |
| 22 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 23 |
040550-18 |
Retaining Ring, .625 Ext. "E" Price: Call Us |
| 24 |
431026 |
Pivot, Brake Spring Price: Call Us |
| 25 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 26 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2" Price: Call Us |
| 27 |
485695 |
Spacer, Brake Pivot Price: Call Us |
| 28 |
485659 |
Spring, Brake Return Price: Call Us |
| 30 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 31 |
04001-190 |
Bolt, Hex Head 1/2-13 x 2-3/4" Price: Call Us |
| 32 |
04021-19 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 33 |
426983 |
Mounting Bracket, Brakes Price: Call Us |
| 34 |
04069-01 |
Pin, Rue Cotter - 3/8 Price: Call Us |
| 35 |
485595 |
Brake Caliper Price: Call Us |
| 36 |
462808 |
Wheel Hub w/Disc Price: Call Us |
| 37 |
04009-10 |
Bolt, Shoulder 1/2 x 2-3/4" Price: Call Us |
| 38 |
481659 |
Rim w/ Valve Stem (52V) Price: Call Us |
| 38 |
481851 |
Rim (61" Deck) Price: Call Us |
| 38 |
485604 |
Wheel Assy., 26 x 12-12 (61V & 72V) Price: Call Us |
| 38 |
485605 |
Tire, 26 x 12-12 (61V & 72V) Price: Call Us |
| 38 |
485607 |
Wheel Assy., 26 x 9.5-12 (52V) Price: Call Us |
| 38 |
485608 |
Tire, 26 x 9.5-12 (52V) Price: Call Us |
| 39 |
04028-02 |
Wheel Nut, 1/2-20 Price: Call Us |
| 40 |
04001-59 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 41 |
48796 |
Bearing, Self Aligning - 5/8 I.D. Price: Call Us |
| 42 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 43 |
452737 |
Bellcrank Weldment, Brake Actuator Price: Call Us |
| 45 |
04020-26 |
Nut, 3/8-24 UNF LH Jam Price: Call Us |
| 46 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
