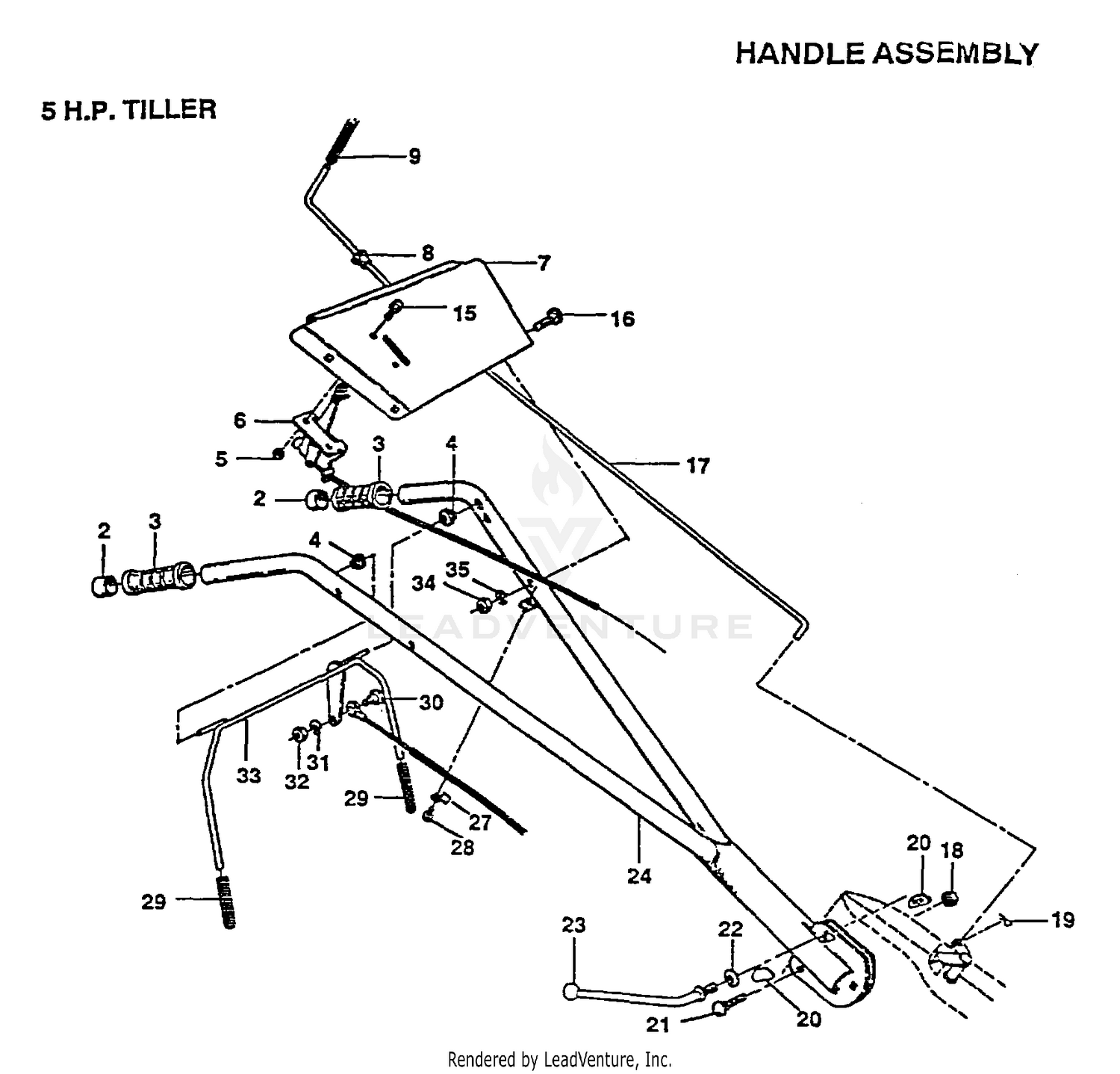

| Ref | Part Number | Description |
|---|
| 1 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 2 |
108544X |
CAP CRT Price: Call Us |
| 2 |
3296-45 |
NUT-HEX Price: $3.79 |
| 3 |
108279X |
NLA Price: Call Us |
| 3 |
112-1635 |
ARM-LIFT, RH This part replaces 112-1635-03. Price: $163.14 |
| 4 |
5420J |
SUB= 146480 Price: Call Us |
| 4 |
94-8000 |
NUT-HEX Price: $2.65 |
| 5 |
323-11 |
SCREW-HH Price: $1.08 |
| 5 |
73731000 |
NUT Price: Call Us |
| 6 |
93-6981 |
SPACER Price: $4.69 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
126949X419 |
SUB= 126949X500 Price: Call Us |
| 8 |
112-9544 |
PIN-HOC This part replaces 112-1621. Price: $6.66 |
| 8 |
121248X |
BUSHING Price: Call Us |
| 9 |
112-1637 |
ARM-LIFT, LH This part replaces 112-1637-03. Price: $122.56 |
| 9 |
8389J |
GRIP TI Price: Call Us |
| 10 |
32151-29 |
RING-RETAINING Price: $3.59 |
| 11 |
110-9820-03 |
LIFT-RH Price: $146.50 |
| 12 |
327-22 |
SCREW-HH Price: $4.41 |
| 13 |
114-4059 |
LINK ASM This part replaces 112-1600. Price: $91.43 |
| 14 |
110-9828 |
SPRING-TORSION Price: $98.42 |
| 15 |
120-5570 |
PIN-RETAINER This part replaces 112-1622. Price: $24.69 |
| 15 |
71091008 |
SCREW Price: Call Us |
| 16 |
112-1625 |
PULL LINK ASM Price: $212.18 |
| 16 |
72110514 |
BOLT CARRIAGE CRT Price: Call Us |
| 17 |
108281X |
ROD SHIFT CRT Price: Call Us |
| 17 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
110-9845 |
SPACER-PLAIN Price: $34.73 |
| 19 |
4497H |
RETAINER M Price: Call Us |
| 20 |
103-1898 |
SCREW-HH Price: $1.79 |
| 20 |
109229X |
LOCK CRT Price: Call Us |
| 21 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 21 |
5394H |
SUB= 73930600 Price: Call Us |
| 22 |
1-633447 |
CHAIN-LIFT, DECK Price: $9.99 |
| 22 |
19131611 |
WASHER CRT Price: Call Us |
| 23 |
109228X |
LEVER LOCK CRT Price: Call Us |
| 23 |
32128-37 |
NUT-HF Price: $3.63 |
| 24 |
121566X |
HANDLE Price: Call Us |
| 24 |
3296-61 |
NUT-LOCK Price: $14.99 |
| 25 |
110-9818-03 |
LIFT-LH Price: $146.50 |
| 26 |
102162X |
CABLE.CLUTCH.CRT Price: Call Us |
| 26 |
112-9585 |
WASHER-HARDENED Price: $15.28 |
| 27 |
325-22 |
SCREW-HH Price: $4.26 |
| 27 |
9484R |
CONDIUT CLIP T Price: Call Us |
| 28 |
112-1602 |
PIN-RETAINER Price: $60.94 |
| 28 |
86777 |
SUB= 750097 Price: Call Us |
| 29 |
102604X |
GRIP BAR CRT Price: Call Us |
| 29 |
112-9522-03 |
SHAFT-LIFT, DECK Price: $245.33 |
| 30 |
69-9010 |
WASHER Price: $1.83 |
| 30 |
81328 |
SHOULDER BOLT ST Price: Call Us |
| 31 |
10040400 |
LOCKWASHER Price: Call Us |
| 31 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 32 |
73220400 |
SUB= 50675 Price: Call Us |
| 33 |
108276X |
HANDLE BAR CRT Price: Call Us |
| 34 |
1685H |
SUB= 68478 Price: Call Us |
| 35 |
10040500 |
LOCKWASHER Price: Call Us |
| 110614X |
DECAL |
TI Price: Call Us 110614X |
| 110678X |
NLA |
Price: Call Us 110678X |
| 127208X |
NLA |
Price: Call Us 127208X |
| 127209X |
OWNER'S |
MANUAL (FRENCH) Price: Call Us 127209X |
