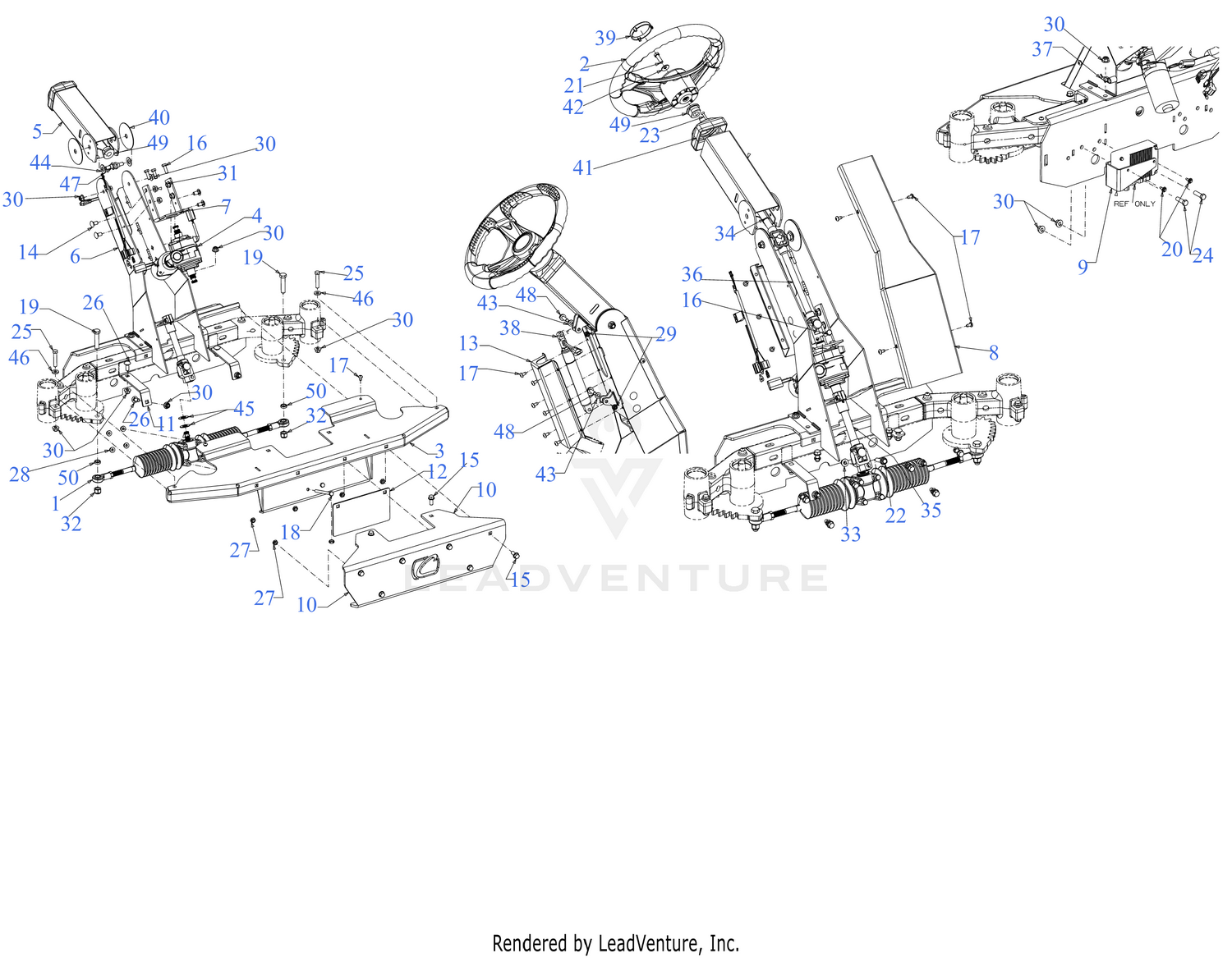

| Ref | Part Number | Description |
|---|
| 1 |
759-05642B |
LOWER STEERING SHAFT KIT This part replaces 917-04088. Price: $954.59 |
| 2 |
631-04008B |
STEERING WHEEL Price: $87.97 |
| 4 |
980-00458A |
POWER STEERING (W/MODULE AND HARNESS) Price: $1,740.39 |
| 14 |
710-0389 |
CARRIAGE BOLT 3/8-16 x .750 GR5 Price: $3.89 |
| 15 |
710-04482 |
SCREW 3/8-16 x .875 GR5 Price: $4.08 |
| 16 |
710-04629 |
SCREW M8-1.25 x 25 GR8.8 Price: $2.64 |
| 17 |
710-05070A |
SCREW 1/4-20 x .5 Price: $6.01 |
| 18 |
710-05410 |
SCREW 5/16-18 x 4.00 GR5 Price: $3.37 |
| 19 |
710-06059 |
SCREW 1/2-20 x 2.25 Price: $5.62 |
| 20 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 21 |
710-0643 |
SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 22 |
710-06749 |
HEX HEAD BOLT (3/8-16:1.50 GR8) Price: $5.95 |
| 23 |
710-1331 |
SCREW #10-16 x 1.25 Price: $3.91 |
| 24 |
710-3005 |
SCREW 3/8-16 x 1.25 GR5 Price: $3.61 |
| 25 |
710-3144 |
SCREW 3/8-16 x 2.0 GR5 Price: $4.02 |
| 26 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 Price: $3.61 |
| 27 |
712-0266A |
JAM LOCK NUT Price: $3.43 |
| 28 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 29 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 30 |
712-04065 |
NUT Price: $3.68 |
| 31 |
912-0431 |
HEX LOCK NUT Price: $4.29 |
| 32 |
712-05022 |
HEX NUT 1/2-20 GR8 NYLON Price: $3.37 |
| 33 |
712-05239 |
LOCK NUT (3/8-16) Price: $5.25 |
| 34 |
916-0171 |
RETAINING RING .570 ID Price: $5.04 |
| 35 |
759-05642B |
LOWER STEERING SHAFT KIT This part replaces 759-05202. Price: $954.59 |
| 36 |
917-04905 |
STEERING SHAFT TOP Price: $200.90 |
| 37 |
726-04124 |
J TYPE CLIP Price: $3.14 |
| 38 |
727-05163 |
TILT STEERING DAMPENING CYLINDER Price: $85.92 |
| 39 |
731-04039 |
STEERING WHEEL CAP Price: $7.17 |
| 40 |
731-08236 |
COLUMN PLATE Price: $15.73 |
| 41 |
731-11491A |
STEERING COLUMN COVER Price: $12.77 |
| 42 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 43 |
736-0264 |
WASHER-FL-.344 X .62 This part replaces 936-0264. Price: $5.99 |
| 44 |
736-0414 |
Fl-Wash. .56" I.D. x 1.12" O.D. This part replaces 936-0414. Price: $3.82 |
| 45 |
736-04602 |
FLAT WASHER NYLON 5/8 Price: $3.37 |
| 46 |
736-3010 |
FLAT WASHER Price: $4.02 |
| 47 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 48 |
738-04185 |
SHOULDER SCREW Price: $7.45 |
| 49 |
948-0209 |
FLANGE BEARING Price: $19.32 |
| 50 |
750-04719 |
SPACER Price: $3.91 |
