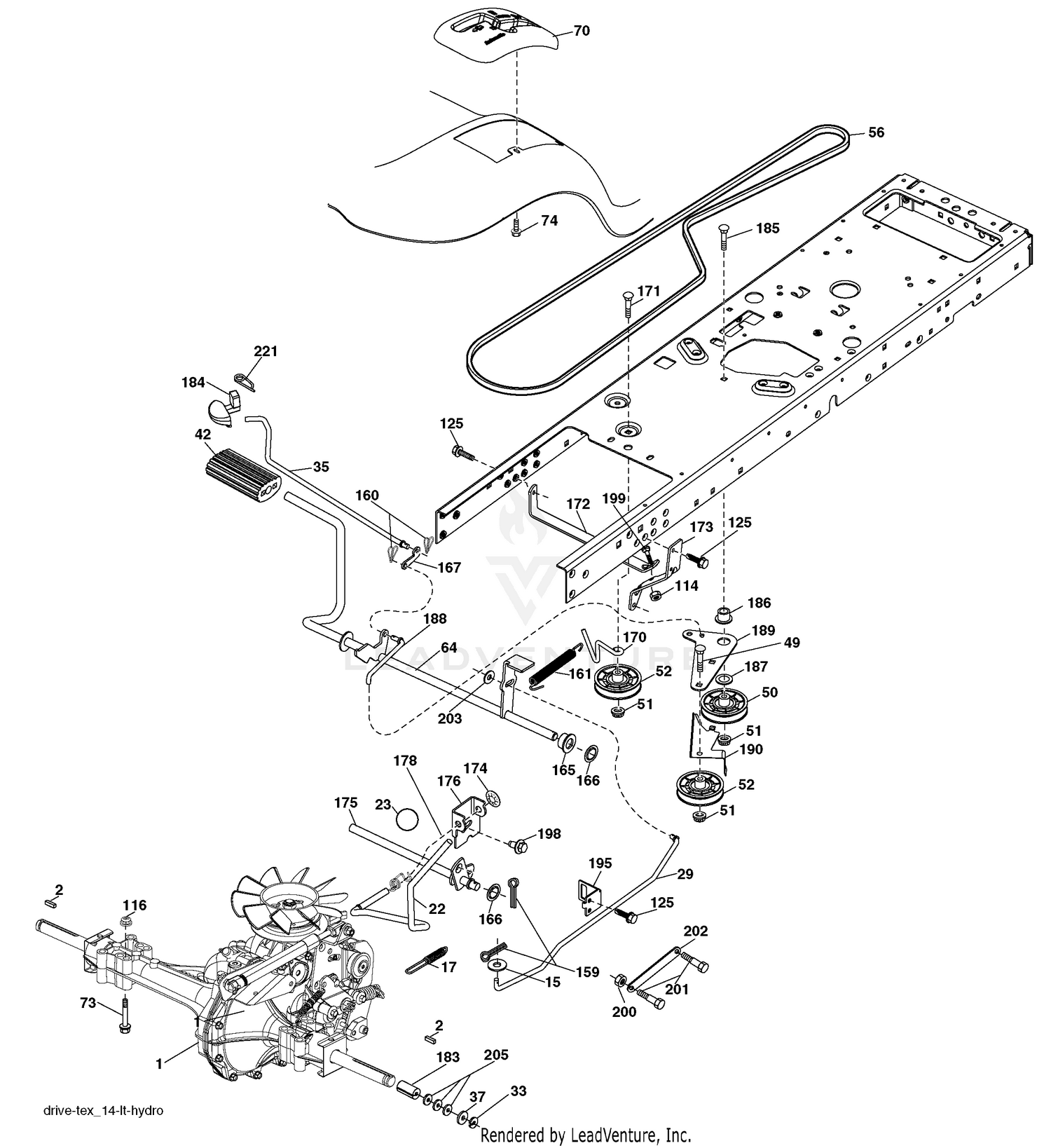

| Ref | Part Number | Description |
|---|
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
123583X |
Key Price: Call Us |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
108-1402 |
GEAR CASE ASM This part replaces 99-8381. Price: $859.88 |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
98-9372 |
O-RING Price: $1.66 |
| 8 |
98-7547 |
O-RING Price: $0.92 |
| 9 |
98-9356 |
BOLT Price: $2.06 |
| 10 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 11 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 12 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 13 |
98-9437 |
BOLT Price: $1.05 |
| 14 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
98-9684 |
GASKET-CASE, GEAR Price: $2.18 |
| 16 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 22 |
197660 |
Rod Shift Price: Call Us |
| 23 |
174779 |
Knob Price: Call Us |
| 29 |
197659 |
Rod, Brake Price: Call Us |
| 33 |
12000001 |
Ring E Price: Call Us |
| 35 |
197722 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 42 |
123533X |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
140218 |
V-Belt, Drive Price: Call Us |
| 64 |
196200 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 70 |
193220X428 |
Console Shift Price: Call Us |
| 73 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 74 |
142432 |
Screw Hex WSH Hi-Lo 1/4 x 1/2 UNC Price: Call Us |
| 114 |
73800500 |
Nut Lock Hex W/INS 5/16-18UNC Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 165 |
196212 |
Bushing Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
196211 |
Latch Brake Parking Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110616 |
Bolt Price: Call Us |
| 172 |
197656 |
Strap Torque LH Price: Call Us |
| 173 |
197655 |
Strap Torque RH Price: Call Us |
| 174 |
197289 |
Nut Push Price: Call Us |
| 175 |
197653 |
Shaft Asm Price: Call Us |
| 176 |
196214 |
Asm Clevis Rod Shift Price: Call Us |
| 178 |
197456 |
Spring Shift Price: Call Us |
| 183 |
137057 |
Spacer Axle Price: Call Us |
| 184 |
198403X428 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 195 |
198012 |
Bracket Rod Brake Price: Call Us |
| 198 |
199496 |
Screw 7/16-147 x 7/8 fl ange head Price: Call Us |
| 199 |
72140508 |
Bolt RDHD SQNK 5/16-18UNC x1 Price: Call Us |
| 200 |
73930500 |
Nut Center Lock 5/16-18UNC Price: Call Us |
| 201 |
169612 |
Bolt Shoulder 5/16-18UNC Price: Call Us |
| 202 |
197714 |
Link Trans Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
