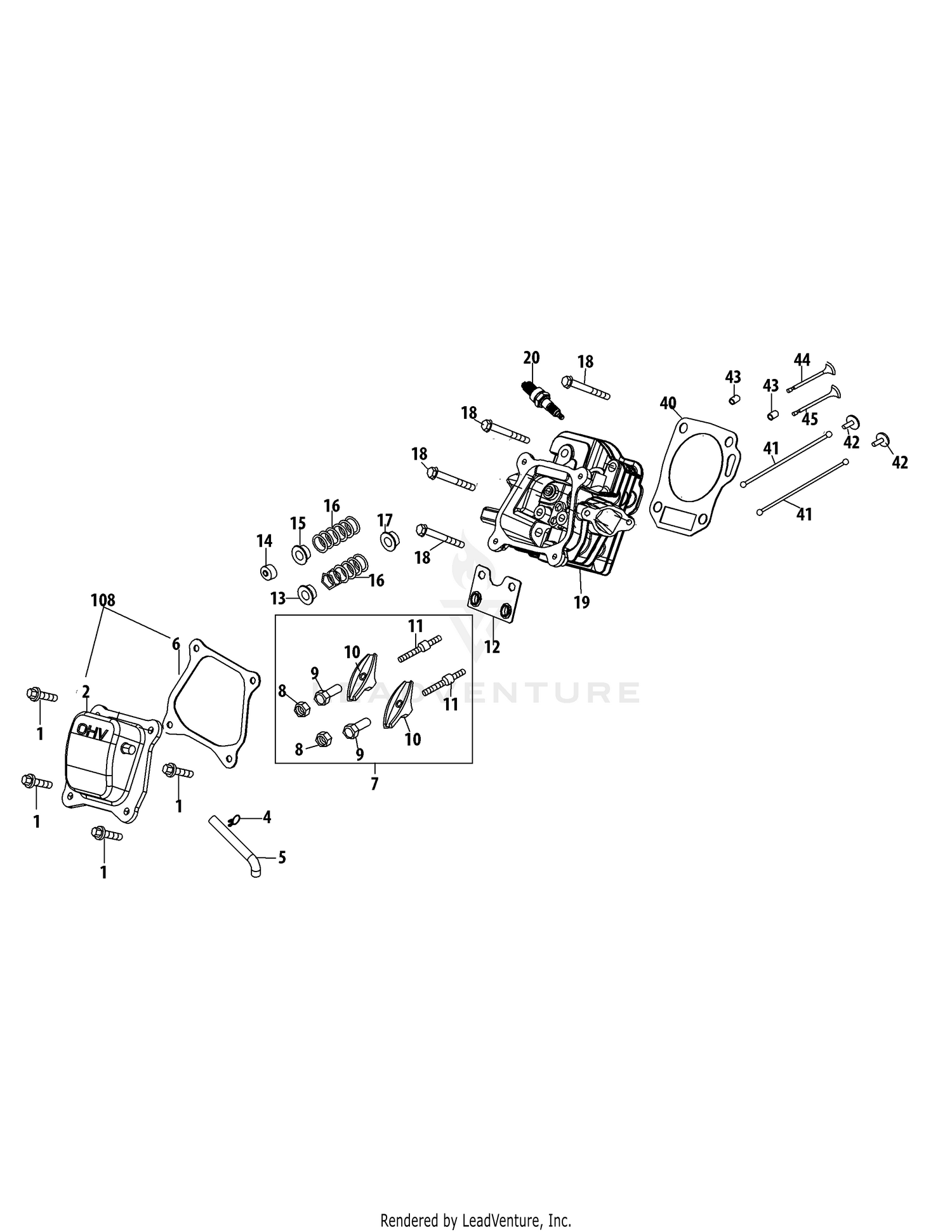

270-JU Cylinder Head

270-JU Cylinder Head

Parts (76)

RefPart NumberDescription
1 710-04968 Bolt M6×16 Price: $5.77
1 95-7522 AXLE Price: $377.20
2 532751153 NUT.LOCK.5/16-18 Price: $2.99
2 951-11054B Valve Cover This part replaces 951-11054. Price: $13.54
2 99-7564 SEAL-OIL Price: $25.36
3 95-7544 CLIP Price: $4.04
4 596030701 Screws This part replaces 817490508. Price: $2.99
4 726-04101 Breather Hose Clamp Not Available Price:
4 95-7523 SPACER Price: $26.89
5 532180017 BEARING, FLANGE Price: $22.99
5 731-07059 Breather Hose Price: $5.51
5 99-7555 SHIM 0.3 Price: $3.29
5 99-7556 SHIM 0.2 Price: $3.29
5 99-7557 SHIM 0.5 Price: $3.37
6 532180134 SHAFT, AUXILIARY Price: $6.99
6 751P11565B VALVE COVER GASKET This part replaces 951-11565. Price: $8.97
6 95-7524 GEAR-BEVEL, 29 TOOTH Price: $222.95
7 532179270 SPACER, PLATE Price: $9.99
7 99-7534 BEARING-BALL Price: $65.44
8 532192616 PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99
8 751-11124 Nut, Pivot Locking Price: $8.18
8 95-7521 COVER-AXLE Price: $107.87
9 106-1071 O-RING This part replaces 99-7538. Price: $18.43
9 751-11123 Adjusting Nut, Valve Price: $9.09
10 532180065 GEAR, PINION Price: $12.99
10 93-7775 BEARING-BALL This part replaces 99-7561. Price: $127.75
10 951-11893 Rocker Arm Price: $6.65
11 532187714 ROD.CLUTCH.YELLOW.ZINC Price: $9.99
11 710-04902 Bolt, Pivot Price: $5.94
11 99-7539 CLIP Price: $11.07
12 104-2374 BOLT This part replaces 99-7596. Price: $6.33
12 532180066 SHAFT.HEX.LONG Price: $84.99
12 951-11895 Push Rod Guide Price: $7.56
13 532128807 Pin, Pivot Price: Call Us
13 951-12000 Retainer, In.Valve Spring Price: $3.53
14 532184080 LEVER, SPEED CONTROL Price: $12.99
14 751P12002A EXHAUST VALVE ADJUSTER This part replaces 951-12002. Price: $2.36
15 597412801 BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99
15 951-12003 Retainer, Ex. Valve Spring Price: $3.53
16 532435793 BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99
16 751P12004A VALVE SPRING This part replaces 951-12004. Price: $1.74
17 585021001 RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99
17 951-11894 Intake Valve Seal Price: $9.48
18 532435789 PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99
18 710-04933 Bolt M8×55 Price: $3.42
19 873930500 NUT.CENTERLOCK.5/16- Price: $3.99
20 532178613 HUB, RUBBER WHEEL Price: $22.99
20 951-10292A SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35
21 596322201 BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99
22 532085179 RETAINER CLIP PM Price: $3.99
23 532180135 SPRING, BIAS Price: $3.99
25 532178695 PIN, PIVOT LEVER Price: $4.99
26 532197763 DRIVE PLATE WELDMENT Price: $54.99
27 532404923 AXLE.ASM.SHAFT.W/ROLLPIN.PS Price: $54.99
28 532197764 SHAFT.HEX.SHORT Price: $11.99
29 532184077 LEVER.SHIFTER.PLATE.BLACK Price: $9.99
30 532175349 BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99
31 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99
32 532189282 KEY, SQUARE 1/4 X .875 Price: $4.99
33 532188909 BEARING FLANGE Price: $24.99
34 532184075 PLATE.DRIVE.MOUNTING.BLACK Price: $14.99
35 532182504 SPACER, BEARING Price: $5.99
36 532191080 PULLEY.TRACTION.7.75 Price: $49.99
37 596039201 GSPW Hardware This part replaces 532155377. Price: $2.99
38 819111507 WASHER, FLAT Price: $4.99
39 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99
40 874950512 Screw, Hex Head 5/16-18 x 3/4 Price: $3.99
40 951-11572 CYLINDER HEAD GASKET Price: $10.38
41 583607301 RING.RETAINING. This part replaces 812000012. Price: $2.99
41 951-10648 Push Rod Kit Price: $15.70
42 951-11899 Tappet Price: $7.14
43 532179095 SPRING.RETURN Price: $3.99
43 715-04108 Dowel Pin 10×16 This part replaces 715-04090. Price: $3.65
44 951-10647A Valve Kit Price: $57.04
45 951-10647A Valve Kit Price: $57.04
108 951-12626 Valve Cover Kit This part replaces 951-11063. Price: $24.96
