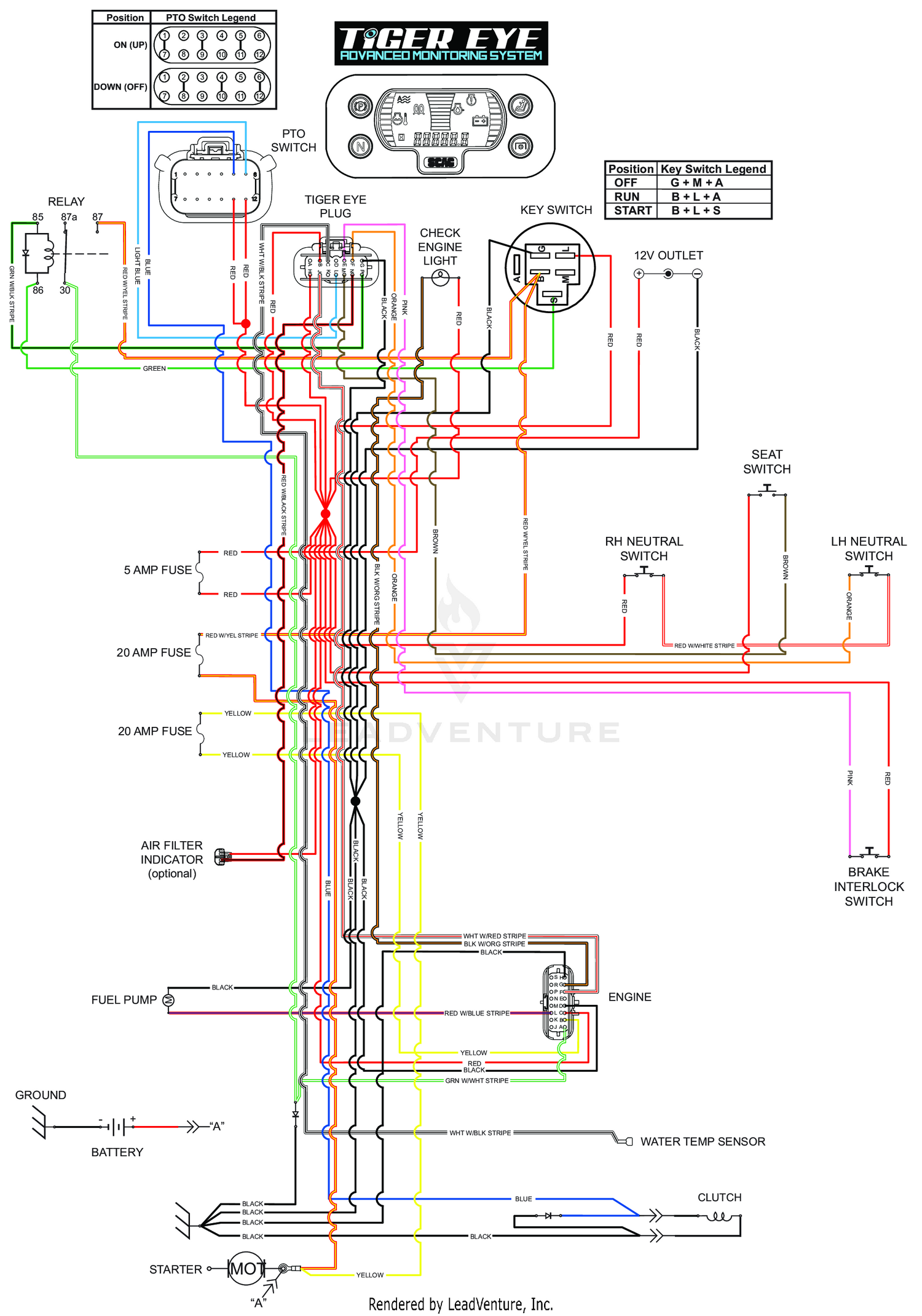

ELECTRICAL SCHEMATIC - KAWASAKI 31DFI

ELECTRICAL SCHEMATIC - KAWASAKI 31DFI

Parts (4)

RefPart NumberDescription
1 323-18 SCREW-HH Price: $0.82
2 3256-24 WASHER-FLAT Price: $0.28
3 40-6430 CLAMP *R Price: $82.11
4 603773 LOCKNUT This part replaces 32153-2. Price: $2.09
