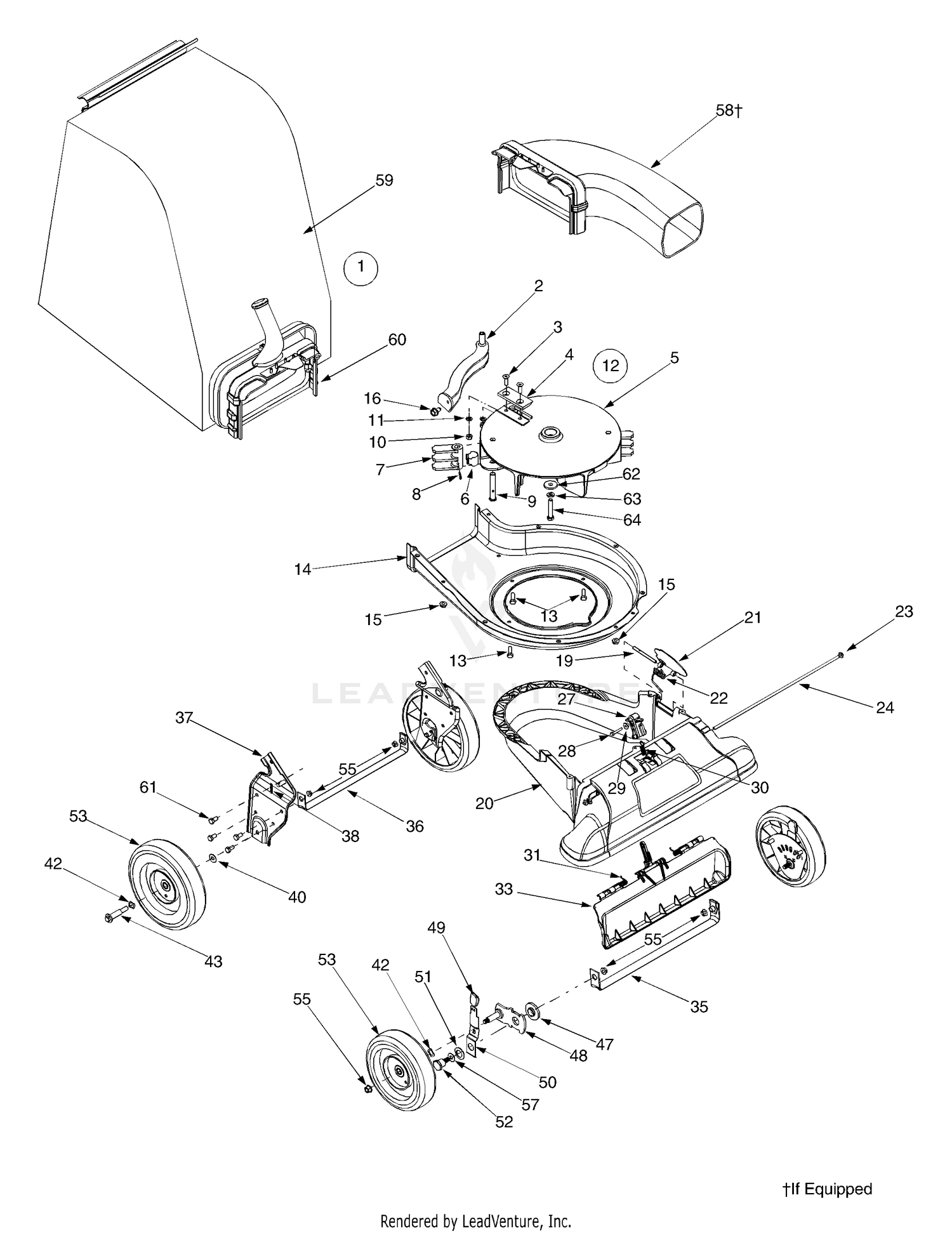

| Ref | Part Number | Description |
|---|
| 1 |
664-04040 |
Bag, Black with no logo This part replaces 664-0095. Price: $201.99 |
| 2 |
681-0154-0637 |
Screen Assembly This part replaces 681-0154. Price: $42.79 |
| 3 |
710-1054 |
Hex Screw 5/16-24 x 1.0 Price: $3.71 |
| 4 |
981-0490 |
CHIPPER BLADE This part replaces 781-0490. Price: $26.69 |
| 5 |
719-0530A |
Impeller Price: Call Us |
| 6 |
781-0735 |
Pin Clip Price: $3.71 |
| 7 |
719-0329 |
Flail Price: $27.90 |
| 8 |
715-0166 |
Spiral Pin Price: $5.94 |
| 9 |
711-1401 |
Clevis Pin Price: $8.54 |
| 10 |
712-0411 |
Lock Nut, 5/16-24 Price: $3.71 |
| 11 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 13 |
710-1650 |
Shoulder Screw, #12-24 x.30 x.46 Price: $4.22 |
| 14 |
781-0721B |
Lower Flail Housing Price: $120.30 |
| 15 |
712-04063 |
Flange Lock Nut 5/16-18 Price: $3.56 |
| 16 |
710-0607 |
Screw, 5/16-18 x.500 Price: $6.06 |
| 19 |
747-04297 |
Hinge Pin Price: $5.78 |
| 20 |
981-04031 |
Nozzle This part replaces 731-2293A. Price: $175.47 |
| 21 |
781-1064 |
Base Adapter Door Price: $32.18 |
| 22 |
732-1156 |
Torsion Spring Price: $4.22 |
| 23 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 24 |
711-1551 |
Pivot Rod Price: $10.96 |
| 27 |
731-2485A |
Nozzle Door Lever Price: $10.75 |
| 28 |
710-1256 |
Hex Screw, #8-18 x 1.25 Price: $5.25 |
| 29 |
750-1294 |
Shoulder Spacer Price: $11.82 |
| 30 |
732-3118 |
Extension Spring Price: $8.78 |
| 31 |
732-1151A |
Nozzle Door Torsion Spring Price: $4.17 |
| 33 |
731-2294A |
Nozzle Door Price: $37.59 |
| 35 |
781-04082-0637 |
Front Wheel Support Brace This part replaces 781-04082. Price: $25.01 |
| 36 |
781-04081-0637 |
Rear Wheel Support Brace This part replaces 781-04081. Price: $24.01 |
| 37 |
981-0156A |
Handle Bracket Ass’y RH This part replaces 681-0156A. Price: $32.19 |
| 38 |
714-0104 |
Cotter Pin Price: $3.90 |
| 40 |
736-0105 |
Bell Washer.401 ID x.870 OD Price: $3.96 |
| 42 |
736-0232 |
Wave Washer.531 ID x.781 OD Price: $4.02 |
| 43 |
738-1015 |
Shoulder Screw 3/8-16 Price: $9.41 |
| 47 |
741-0751 |
Height Adjustment Bearing Price: $7.50 |
| 48 |
987-02094 |
Pivot Arm This part replaces 687-02094. Price: $25.54 |
| 49 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 50 |
732-1026 |
Spring Lever Price: $5.77 |
| 51 |
736-0741 |
Bell Washer.760 ID x.25 OD Price: $3.99 |
| 52 |
738-1172 |
Shoulder Screw,.750 x.500 Price: $5.01 |
| 53 |
753-08091 |
WHEEL KIT IDLE 8 x 2 This part replaces 734-04033. Price: $40.81 |
| 55 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 57 |
736-0314 |
Thrust Washer.375 ID x.70 OD Price: $6.01 |
| 59 |
664-04040 |
Bag, Black with no logo This part replaces 764-0632A. Price: $201.99 |
| 60 |
631P0083A |
CHUTE DISCHARGE ASSEMBLY This part replaces 631-0083. Price: $94.09 |
| 61 |
710-0726 |
Hex Index Screw, 5/16-12 x.750 Price: $3.82 |
| 62 |
736-0247 |
Flat Washer.375 ID x 1.25 OD Price: $8.82 |
| 63 |
736-0217 |
Lock Washer 3/8 Price: $3.86 |
| 64 |
710-0818 |
Hex Cap Screw 3/8-24 x 2.0 Price: $5.95 |
