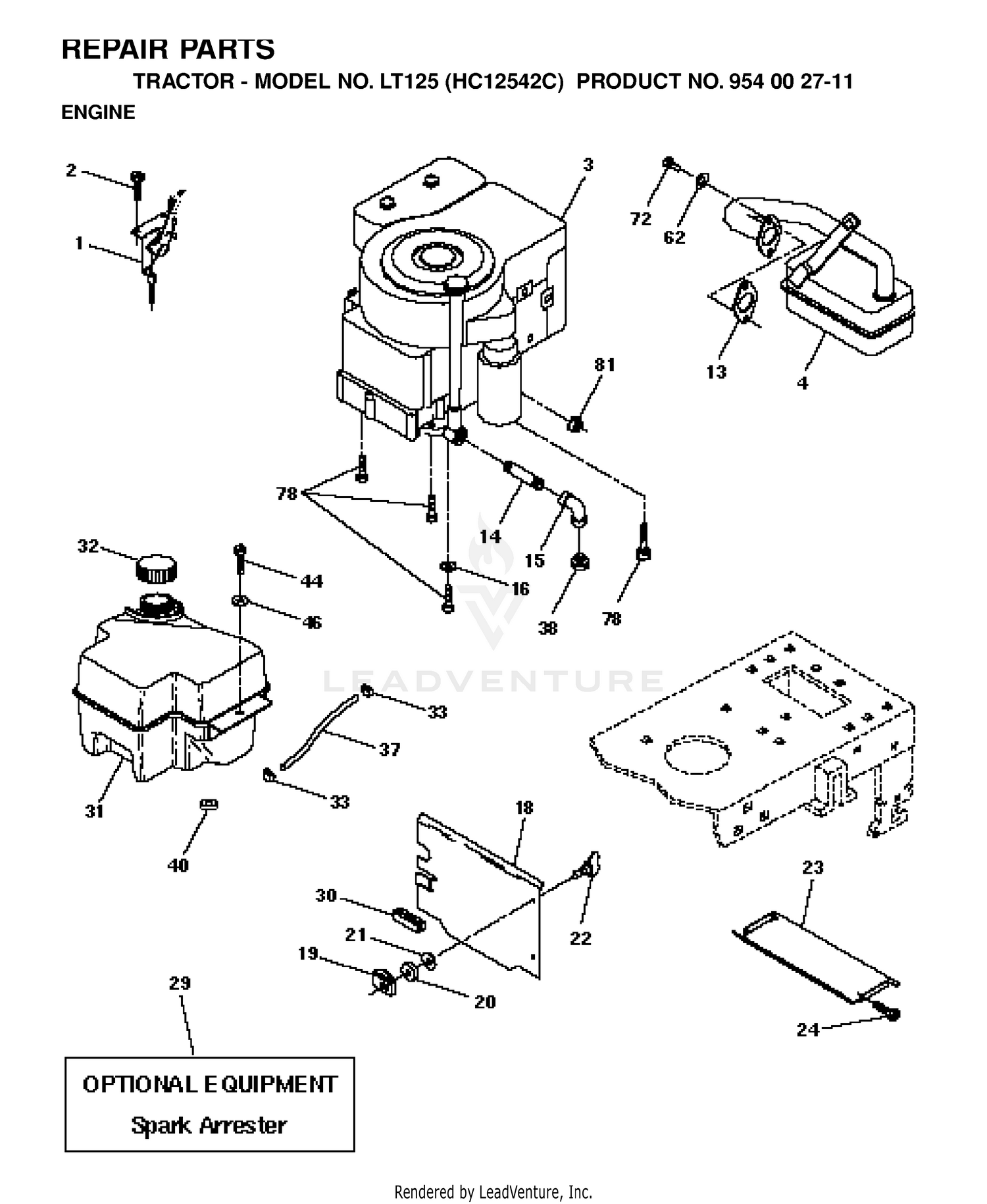

| Ref | Part Number | Description |
|---|
| 1 |
125-7091 |
CRANKSHAFT ASM Price: $2,915.83 |
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK This part replaces 532140310. Price: $24.99 |
| 2 |
125-6995 |
PIN Price: $5.45 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
125-6937 |
GEAR Price: $205.45 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
125-7185 |
KEY Price: $2.16 |
| 7 |
125-7182 |
PIN-SPRING Price: $3.77 |
| 8 |
125-6925 |
V-PULLEY Price: $255.74 |
| 9 |
125-7109 |
WASHER Price: $19.67 |
| 10 |
125-6956 |
BOLT Price: $40.22 |
| 11 |
125-6951 |
BOLT Price: $6.77 |
| 12 |
125-7172 |
FLYWHEEL ASM Price: $1,543.11 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532125593. Price: $8.99 |
| 14 |
125-6943 |
GEAR Price: $137.73 |
| 14 |
813280324 |
Nipple Pipe 3/8 Npt X 3-1/2 Price: $3.12 |
| 15 |
125-7072 |
PISTON ASM Price: $182.26 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
125-6983 |
PISTON RING SET Price: $84.29 |
| 18 |
532136718 |
HEAT SHIELD Price: $3.79 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 20 |
532105838 |
RETAINER LT Price: $4.99 |
| 21 |
125-7030 |
PIN Price: $43.23 |
| 21 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 22 |
125-7180 |
RING Price: $2.39 |
| 22 |
532123650 |
STUD 1/4 TURN Price: $4.99 |
| 23 |
125-7242 |
CONNECTING ROD ASM Price: $467.89 |
| 24 |
817021008 |
SCREW Price: $3.99 |
| 26 |
125-6955 |
BOLT Price: $20.62 |
| 27 |
125-7018 |
PIN-CRANK Price: $20.94 |
| 29 |
125-6997 |
PIN-PISTON Price: $21.73 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-7019 |
PIN-CRANK (.25) Price: $20.96 |
| 30 |
532127057 |
STRIP Price: $2.38 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532140280. Price: $59.99 |
| 32 |
125-7073 |
PISTON ASM (0.25 OS) Price: $228.05 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
