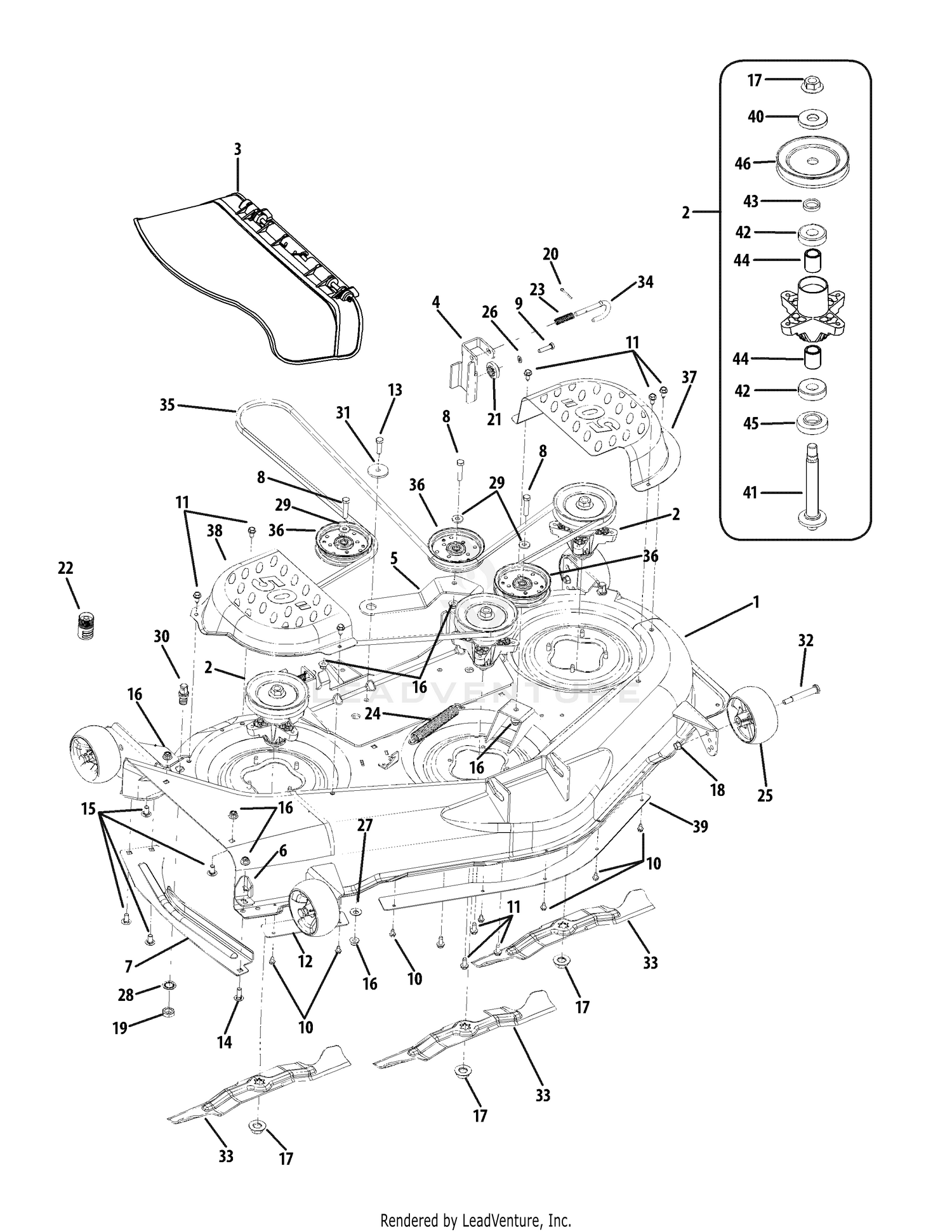

| Ref | Part Number | Description |
|---|
| 2 |
918-04125C |
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG This part replaces 918-04126B. Price: $123.95 |
| 3 |
631-04070C |
Discharge Chute This part replaces 631-04070A. Price: $107.73 |
| 4 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-4033. Price: |
| 5 |
703-05825C-0637 |
Idler Arm This part replaces 703-05825B-4033. Price: $47.55 |
| 6 |
703-3279 |
Bracket, Stop This part replaces 703-3279-4033. Price: $35.25 |
| 7 |
703-3511B-0637 |
Finger Guard This part replaces 703-3511A-0637. Price: $61.47 |
| 8 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 9 |
710-0528 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $3.90 |
| 10 |
710-0599 |
Hex Washer Head Screw, 1/4-20 x .5 Price: $3.86 |
| 11 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 12 |
783-04415-0637 |
RH Skirt This part replaces 783-04415-4033. Price: $26.98 |
| 13 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 14 |
710-04095 |
Hex Screw, 3/8-16 x 1.00 Price: $4.39 |
| 15 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 16 |
712-04065 |
Hex Insert Flange Lock Nut, 3/8-16 Price: $3.68 |
| 17 |
712-0417A |
HEX NUT Price: $6.50 |
| 18 |
912-0431 |
Hex Flange Lock Nut, 3/8-16 Price: $4.29 |
| 19 |
712-0641 |
Nut, Hex, M16-1.5 This part replaces 912-0641. Price: $5.58 |
| 20 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 21 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 22 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 23 |
732-04652 |
Compression Spring, .535 x 1.75 Price: $5.88 |
| 24 |
732-04609 |
Extension Spring, .94 x 6.74 Price: $14.09 |
| 25 |
734-04155 |
Deck Ball Wheel, 5.0 Price: $19.04 |
| 26 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 27 |
736-0407 |
Bell Washer, .45 x 1.0 x .062 Price: $3.64 |
| 28 |
736-0225 |
Internal Tooth Lock Washer, 5/8 Price: $3.90 |
| 29 |
736-3072 |
Flat Washer, .38 x .93 x .110 Price: $4.11 |
| 30 |
737-04003D |
Deck Wash Nozzle Price: $20.69 |
| 31 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 32 |
938-3056 |
Shoulder Screw, .5 x 2.5 x 3/8-16 Price: $8.53 |
| 33 |
942-04053C |
Blade, 2 in 1, 17.9 Price: $26.85 |
| 34 |
747-1116 |
Deck Hanger Rod Price: $11.17 |
| 35 |
954-04044A |
V-Belt Price: $59.35 |
| 36 |
753-08171 |
Pulley Kit, Idler, 4.25"Dia This part replaces 756-04129B. Price: $33.06 |
| 37 |
783-04399-0637 |
LH Belt Cover This part replaces 783-04399-4033. Price: $83.68 |
| 38 |
783-04400 |
Cover, Belt RH This part replaces 783-04400-4033. Price: $83.68 |
| 39 |
783-04414A |
Deck Skirt, Center This part replaces 783-04414A-4033. Price: $28.73 |
| 40 |
736-0315 |
Flat Washer, .76 x 1.50 x .12 Price: $5.94 |
| 41 |
738-1010A |
Spindle Shaft, 5.75 Price: $43.21 |
| 42 |
741P0919B |
BALL BEARING This part replaces 941-0919. Price: $18.90 |
| 43 |
748-0160A |
Spacer, .79 x 1.25 x .175 Price: $5.87 |
| 44 |
750-1000 |
Spacer, .80 x 1.10 x 1.32 Price: $3.90 |
| 45 |
750-1349A |
Spacer, .79 x 1.82 x .55 Price: $12.22 |
