Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts

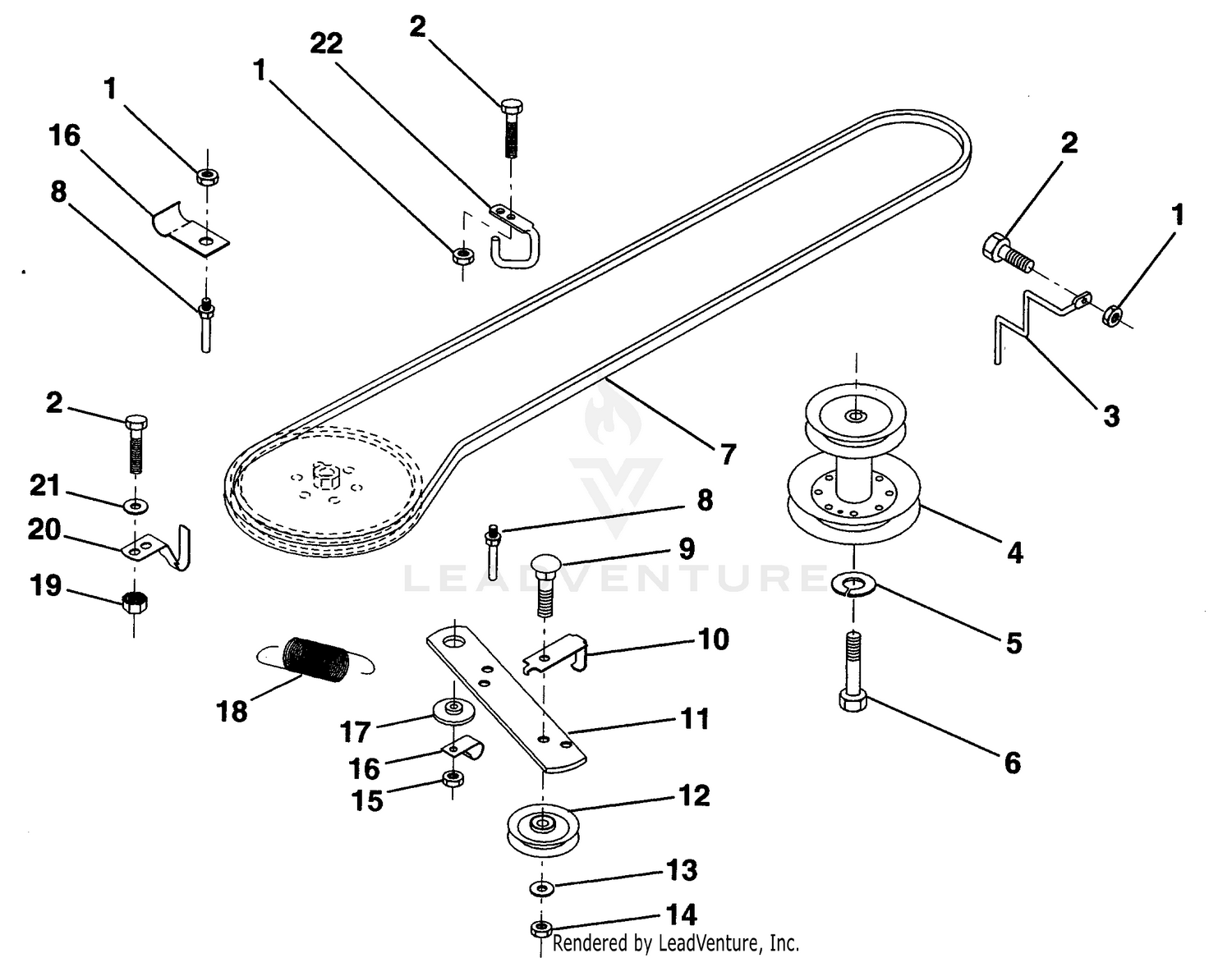

GROUND DRIVE

GROUND DRIVE

Parts (77)

RefPart NumberDescription
1 3211-17 SCREW-HH Price: Call Us
1 873800500 NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99
2 3272-5 PIN-COTTER Price: $1.39
2 539976934 HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99
3 3-1305 DISCONTINUED Price: Call Us
3 532132946 Keeper, Mower Drive Belt, Engine (AYP part number) Price: $3.84
4 5-1724 DISCONTINUED Price: Call Us
4 532138029 Pulley, Engine (AYP part number) This part replaces 532135036. Price: $49.99
5 3-1303 DISCONTINUED Price: Call Us
5 539990247 WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99
6 3256-3 WASHER-FLAT Price: $0.49
6 871130748 Bolt, Hex, Fin 7/16-20 UNF x 3 (AYP part number) Price: $4.99
7 3210-8 SCREW-HH Price: $1.02
7 532124525 Traction, V-Belt Drive (AYP part number) Price: $34.99
8 5-1765 DISCONTINUED Price: Call Us
8 532164173 KEEPER.BELT.ENGINE This part replaces 532123405. Price: $4.99
9 3210-10 DISCONTINUED Price: Call Us
9 872140612 Bolt, Carriage 3/8-16 x 1-1/2 (AYP part number) Price: $2.99
10 5-1771 DISCONTINUED Price: Call Us
10 532123396 Keeper, Ground Drive Belt, Idler (AYP part number) Price: $4.99
11 5-1763 DISCONTINUED Price: Call Us
11 532140911 Arm, Ground Drive Clutch (AYP part number) This part replaces 532123395. Price: $4.35
12 5-1775 DISCONTINUED Price: Call Us
12 532123674 Idler, Flat (AYP part number) This part replaces 532004859. Price: $17.99
13 5-1780 DISCONTINUED Price: Call Us
13 819131316 Washer 13/32 x 13/16 x 16 Gauge (AYP part number) Price: $2.99
14 5-1774 DISCONTINUED Price: Call Us
14 873680600 LOCKNUT This part replaces 873930600. Price: $1.99
15 32136-4 NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56
15 873680600 Nut, Crownlock 3/8-16 UNC Price: $1.99
16 5-0875 DISCONTINUED Price: Call Us
16 532126471 Clip, Insulated (AYP part number) Price: $2.99
17 3211-15 SCREW-HH Price: $7.99
17 532165723 SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99
18 5-1826 DISCONTINUED Price: Call Us
18 532131459 Spring, Extension (AYP part number) Price: $4.99
19 5-1950 DISCONTINUED Price: Call Us
19 873510500 Nut, Keps 5/16-18 UNC (AYP part number) Price: $5.99
20 283-14 PIN-CLEVIS Price: $2.92
20 532123891 Keeper, T/A Ground Drive Belt (AYP part number) Price: $10.28
21 5-1777 DISCONTINUED Price: Call Us
21 819111016 Washer 11/32 x 5/8 x 16 Gauge (AYP part number) Price: $5.99
22 3211-11 SCREW-HH Price: $2.24
23 3211-23 Screw Price: Call Us
24 5-1762 DISCONTINUED Price: Call Us
25 5-1761 DISCONTINUED Price: Call Us
26 3272-10 PIN-COTTER Price: $0.25
27 302-5 FITTING-GREASE Price: $0.59
28 5-1760 DISCONTINUED Price: Call Us
29 3217-6 NUT-HEX Price: $1.19
30 3254-2 WASHER-LOCK, INTERNAL Price: $0.27
31 5-1773 DISCONTINUED Price: Call Us
32 3296-12 NUT-LOCK, NI Price: $1.29
33 5-1776 DISCONTINUED Price: Call Us
34 3219-2 NUT-HEX Price: $0.37
35 3253-4 WASHER-LOCK Price: $0.25
36 5-1772 DISCONTINUED Price: Call Us
37 5-1764 DISCONTINUED Price: Call Us
38 3220-2 NUT-JAM Price: $0.50
39 3256-4 WASHER-FLAT Price: $0.28
40 5-1723 DISCONTINUED Price: Call Us
41 283-14 PIN-CLEVIS Price: $2.92
42 282-4 SHACKLE Price: $32.98
43 3219-3 NUT-HEX Price: $0.34
44 3253-5 WASHER-LOCK Price: $0.29
45 3220-3 NUT-HJ Price: $0.28
46 3255-9 WASHER-LOCK Price: $0.28
47 3-3515 DISCONTINUED Price: Call Us
48 23-3860 DISCONTINUED Price: Call Us
49 5-1766 DISCONTINUED Price: Call Us
50 5-1738 DISCONTINUED Price: Call Us
54 3218-3 NUT-JAM Price: $0.25
55 3-1310 DISCONTINUED Price: $2.00
56 323-8 SCREW-HH Price: $1.20
57 3-1311 DISCONTINUED Price: Call Us
58 34450 Fulcrum Price: Call Us
59 3-3514 DISCONTINUED Price: Call Us
