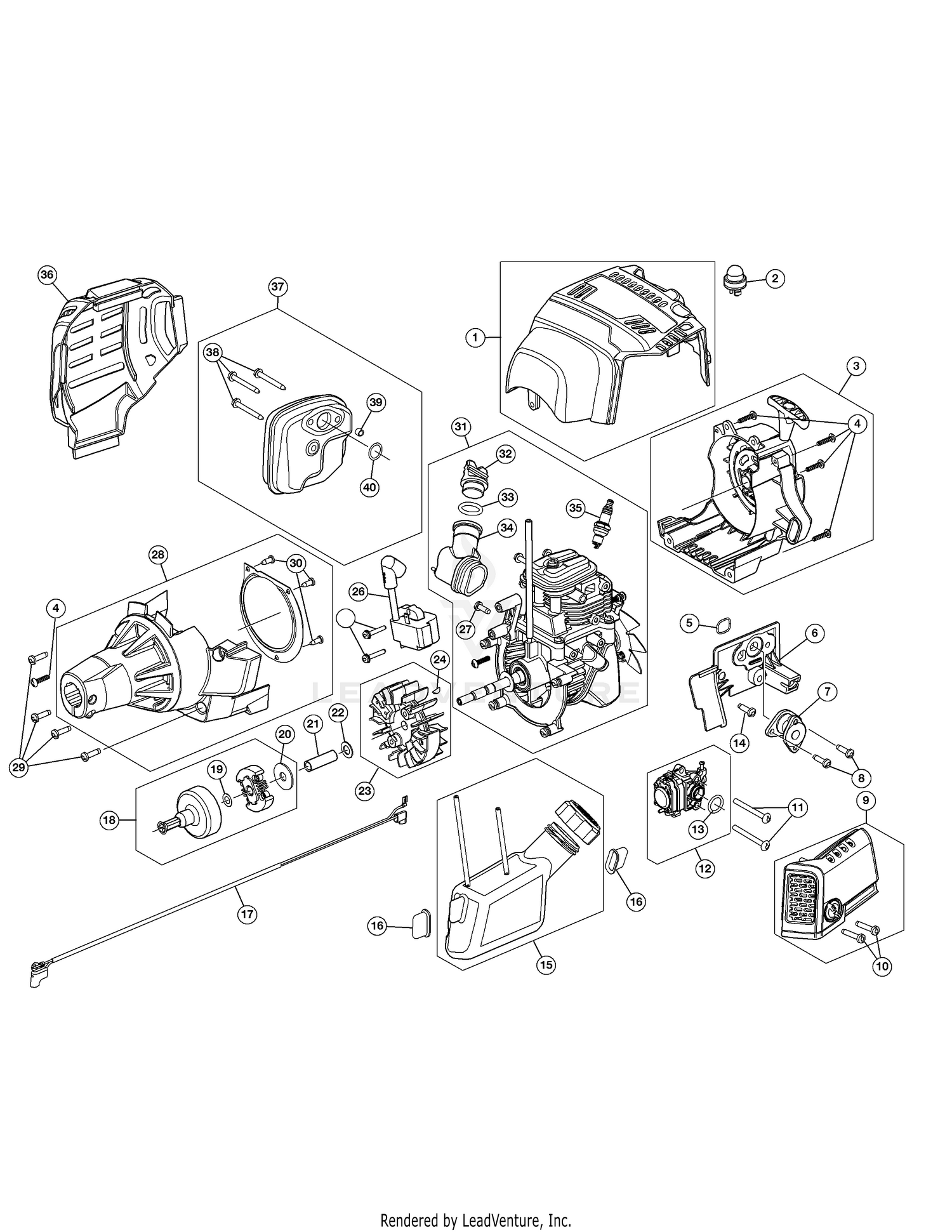

| Ref | Part Number | Description |
|---|
| 1 |
753-08320 |
Top Housing Assembly Price: $16.17 |
| 2 |
753-08319 |
PRIMER BULB Not Available Price: |
| 3 |
753-08321 |
Starter Housing Assembly Price: $23.48 |
| 4 |
710-04194 |
Screw Price: $3.66 |
| 5 |
721-04466 |
O-RING AC8 Not Available Price: |
| 6 |
731-10184A |
Intake Port This part replaces 731-10184. Price: $5.94 |
| 7 |
753-08053 |
Boot Assembly Price: $18.74 |
| 8 |
710-06238 |
Screw Price: $2.30 |
| 9 |
753-08304 |
AIRCLEANER ASSEMBLY Not Available Price: |
| 10 |
753-06470 |
Screw Price: $2.32 |
| 11 |
710-06003 |
Screw Price: $2.32 |
| 12 |
753-08323 |
Carburetor Assembly Price: $33.16 |
| 13 |
791-181751 |
O-Ring Price: $3.92 |
| 14 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 15 |
753-08325 |
FUEL TANK ASSEMBLY Not Available Price: |
| 16 |
753-05259 |
Fuel Tank Pad Price: $5.72 |
| 17 |
794-00047A |
Lead Wire Price: $4.92 |
| 18 |
753-05860 |
Clutch Assembly Price: $22.50 |
| 19 |
6674 |
Thrust Washer This part replaces 791-182569. Price: $3.05 |
| 20 |
9162-1 |
Clutch Washer Price: $3.91 |
| 21 |
2557 |
Power Shaft Spacer Not Available Price: |
| 22 |
736-0314 |
Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01 |
| 23 |
753-06246 |
Flywheel Assembly Price: $19.20 |
| 24 |
914-04016 |
Key Price: $3.82 |
| 25 |
710-06224 |
Screw Price: $2.30 |
| 26 |
753-08210 |
MODULE ASSEMBLY TEC Not Available Price: |
| 27 |
9054 |
Screw Price: $3.82 |
| 28 |
753-08322 |
Clutch Cover Assembly Price: $10.15 |
| 29 |
710-06284 |
Screw This part replaces 710-06225. Price: $2.77 |
| 30 |
1755 |
Screw Price: $3.37 |
| 31 |
753-08326 |
Shortblock Assembly Price: $109.14 |
| 32 |
731-08920A-9 |
Oil Fill Plug This part replaces 731-08920-9. Price: $2.29 |
| 33 |
721-04509 |
O-Ring Price: $2.29 |
| 34 |
753-08204 |
OIL FILL TUBE ASSEMBLY Price: $10.52 |
| 35 |
794-00082 |
Spark Plug Price: $6.35 |
| 36 |
753-08338 |
MUFFLER HOUSING Not Available This part replaces 731-08903-1. Price: |
| 37 |
753-08324 |
Muffler Assembly Price: $20.83 |
| 38 |
710-04809 |
SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 39 |
750-06057 |
SPACER Not Available Price: |
