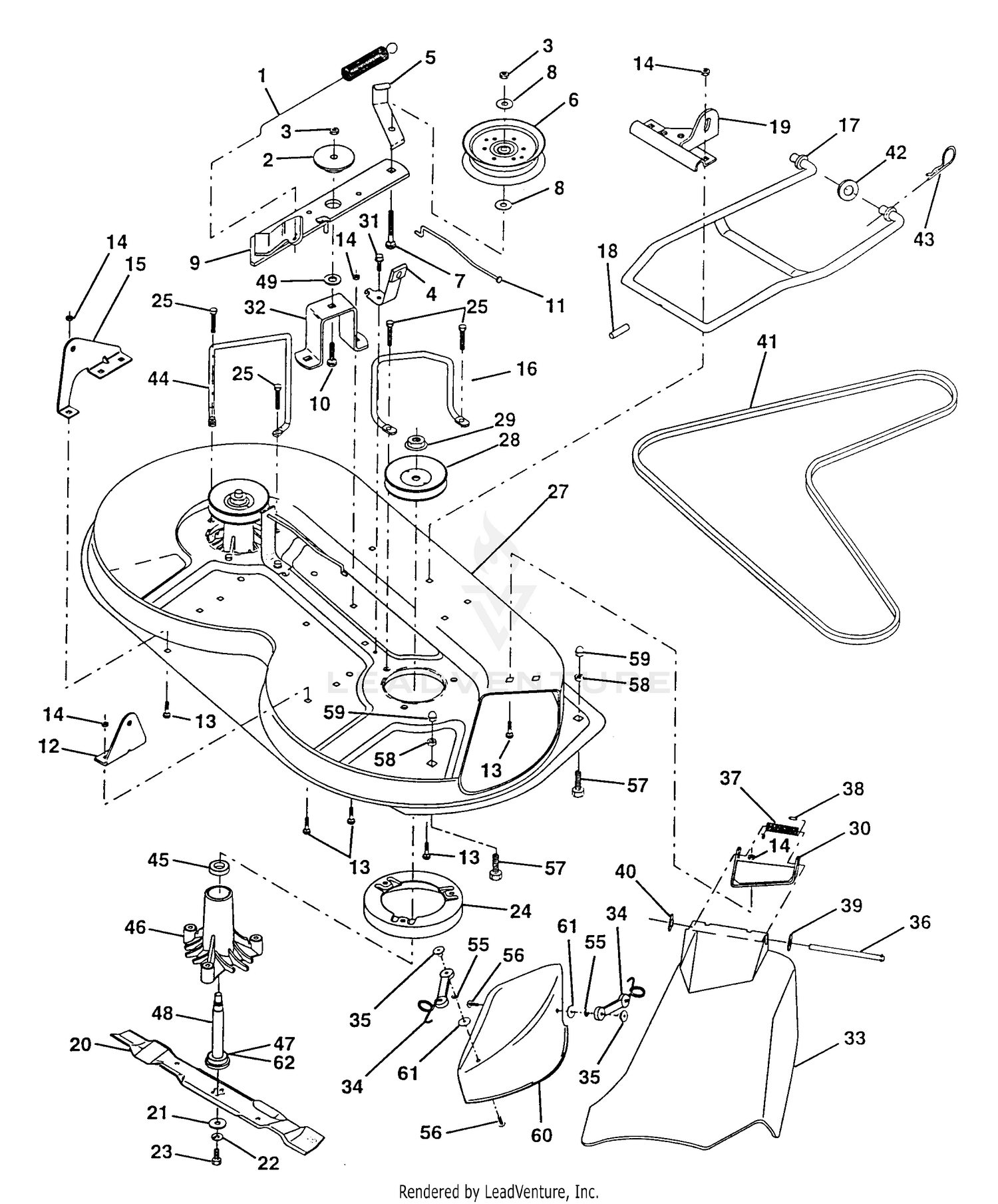

| Ref | Part Number | Description |
|---|
| 0 |
632029 |
SERVICE CARB Price: Call Us |
| 1 |
140064 |
Spring, Mower Clutch Price: Call Us |
| 1 |
631866 |
THROTTLE SHAFT Price: $13.40 |
| 2 |
122052X |
Spacer, Retainer Price: Call Us |
| 3 |
73680600 |
Nut, Crownlock 3/8-16 Price: Call Us |
| 4 |
130840 |
Brake Asm. Price: Call Us |
| 5 |
131251 |
Guide, Belt Idler Price: Call Us |
| 6 |
121316X |
Pulley, Flat Idler Price: Call Us |
| 6 |
631778 |
SHUTTER Price: $1.20 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 7 |
72110616 |
Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 8 |
19131410 |
Washer 13/21 x 7/8 x 10 Ga. Price: Call Us |
| 8 |
650782 |
SCREW Price: $1.20 |
| 9 |
127744 |
Arm Asm., Idler Mower (AYP part number) Price: Call Us |
| 10 |
72140610 |
Bolt, Carriage 3/8-16 x 1-1/4 Price: Call Us |
| 11 |
130841 |
Rod, Brake Price: Call Us |
| 12 |
127356 |
Bracket, Lift R.H. Rear Price: Call Us |
| 13 |
72140506 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 14 |
73680500 |
Nut, Crownlock 5/16-18 Price: Call Us |
| 15 |
127357 |
Bracket, Lift L.H. Rear Price: Call Us |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
153298 |
Keeper, R.H. Price: Call Us |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 17 |
128508 |
Link, Asm. Mower Stabilizer Price: Call Us |
| 18 |
128511 |
Pin, Drive Price: Call Us |
| 19 |
127380 |
Bracket, Asm. Front Price: Call Us |
| 20 |
140101 |
Blade Mulching Price: Call Us |
| 20 |
632281 |
IDLE SCREW Price: $2.60 |
| 21 |
140296 |
Washer, Hard Price: Call Us |
| 21 |
630766 |
SPRING Price: $1.25 |
| 22 |
10030600 |
Washer, Lock 3/8 (AYP part number) Price: Call Us |
| 22 |
630739 |
WASHER Price: $1.25 |
| 23 |
630740 |
O RING Price: $1.49 |
| 23 |
850857 |
Bolt 3/8-24 x 1-1/4 Gr. 8 Price: Call Us |
| 24 |
140329 |
Stripper (AYP part number) Price: Call Us |
| 25 |
138776 |
Screw Thdrol Hex Hd (AYP part number) Price: Call Us |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 27 |
156600 |
Deck Assembly Price: Call Us |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
153531 |
Pulley, Mandrel (AYP part number) Price: Call Us |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
137266 |
Nut, Flangelock 9/16 Price: Call Us |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
136631 |
Bracket, Asm. Deflector Price: Call Us |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
17490508 |
Screw, Hex Wsh. Thdrol. 5/16-18 x 1/2 Price: Call Us |
| 31 |
631022 |
CLIP Price: $1.25 |
| 32 |
122051X |
Arm, Support Idler Mower Price: Call Us |
| 33 |
131560 |
Deflector (AYP part number) Price: Call Us |
| 34 |
130758 |
Latch Asm. Bagger Price: Call Us |
| 35 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532125004. Price: $2.99 |
| 36 |
121980X |
Rod, Hinge Price: Call Us |
| 37 |
123713X |
Spring, Torsion Deflector Price: Call Us |
| 38 |
105304X |
Cap, Sleeve Price: Call Us |
| 39 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga Price: Call Us |
| 40 |
110452X |
Pushnut Price: Call Us |
| 40 |
631583 |
POWER SCREW Price: $10.18 |
| 41 |
131264 |
V-Belt Price: Call Us |
| 41 |
630740 |
O RING Price: $1.49 |
| 42 |
19171616 |
Washer 11/32 x 5/8 16 Ga. Price: Call Us |
| 42 |
630739 |
WASHER Price: $1.25 |
| 43 |
3146R |
Retainer, Spring Price: Call Us |
| 43 |
630738 |
SPRING Price: $1.25 |
| 44 |
140608 |
Keeper, L.H. Price: Call Us |
| 44 |
27110A |
GASKET This part replaces 27110. Price: $1.45 |
| 45 |
110485X |
Bearing Price: Call Us |
| 46 |
128774 |
Housing Mandrel Vented Price: Call Us |
| 47 |
129895 |
Bearing Price: Call Us |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
| 49 |
133943 |
Washer, Hardened (AYP part number) Price: Call Us |
| 55 |
10071000 |
Washer, Lock #10 Price: Call Us |
| 56 |
71161010 |
Screw, Truss, Hd, Phil 10-24 X 5/8 (AYP part number) Price: Call Us |
| 57 |
74930516 |
Bolt, Fin, Hex 5/16 x 18 Unc x 1 Price: Call Us |
| 58 |
63124 |
Nut, Nylon Insert 5/16-18 Price: Call Us |
| 59 |
133841 |
Nut, Acorn, Hex 5/16 x 18 Price: Call Us |
| 60 |
532140102 |
Cover, Mulching 36 (AYP part number) Price: $49.99 |
| 61 |
19061216 |
Washer #10 Price: Call Us |
| 62 |
153390 |
Washer Felt Price: Call Us |
