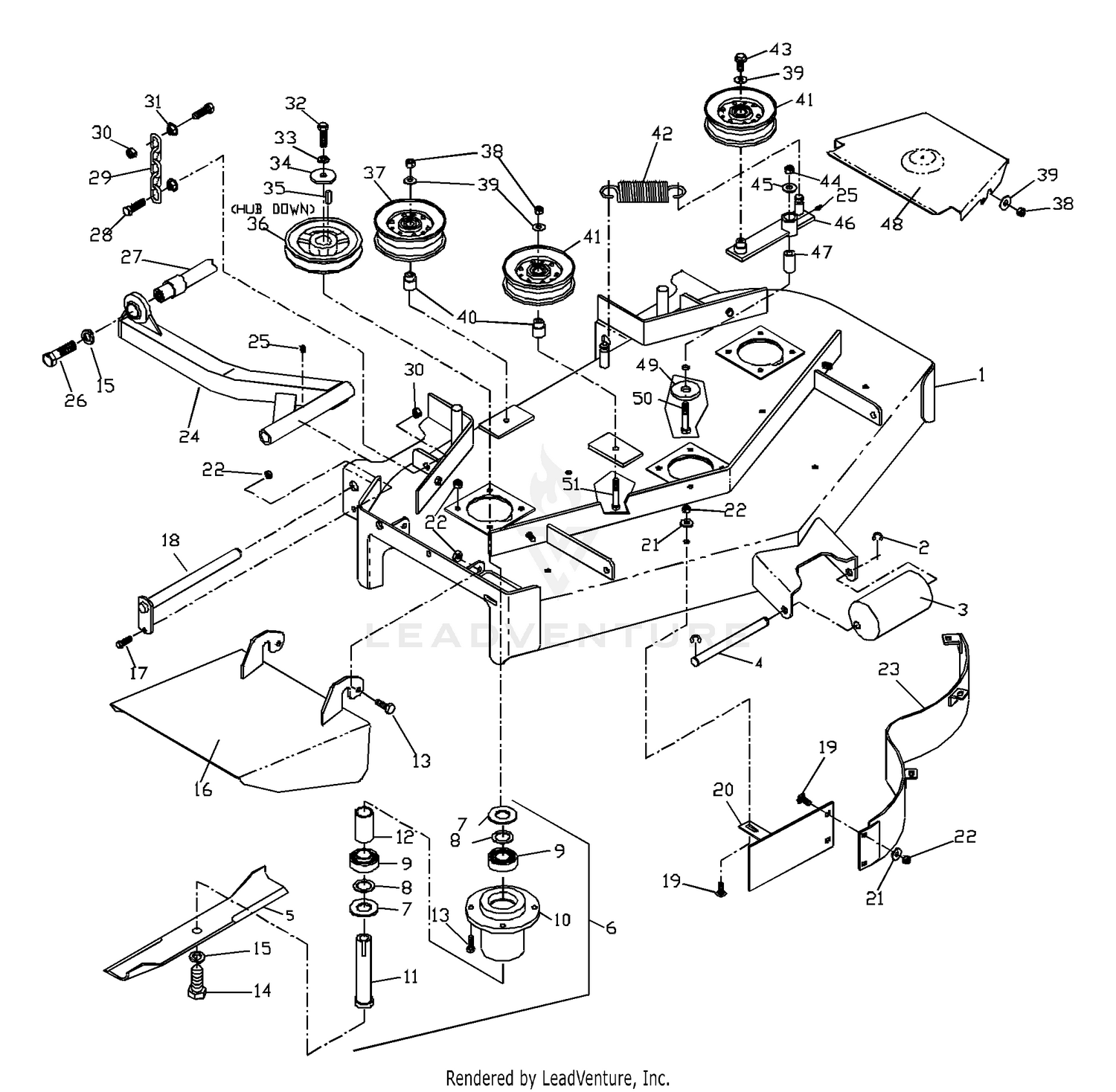

| Ref | Part Number | Description |
|---|
| 1 |
539105371 |
DECK W/DECALS HUS Price: $879.71 |
| 2 |
596671501 |
Washers This part replaces 539101949. Price: $2.99 |
| 3 |
539976828 |
ROLLER Price: $25.07 |
| 4 |
539103437 |
AXLE Price: $9.99 |
| 5 |
539103274 |
BLADE OEM, 14-7/8 Price: $17.99 |
| 6 |
539107410 |
HOUSING KIT FOR 103298 This part replaces 539103298. Price: $449.99 |
| 7 |
539102675 |
MACHINERY BUSHING 10 GA. Price: $8.99 |
| 8 |
539102244 |
BUSHING.MACHINE.18.GAUGE Price: $4.99 |
| 9 |
539115279 |
BEARING-ECC LOCK W/COLLAR This part replaces 539102677. Price: $30.99 |
| 10 |
539102673 |
HOUSING Price: $229.99 |
| 11 |
539103290 |
SPINDLE SHAFT Price: $64.99 |
| 12 |
539102676 |
SPACER Price: $8.99 |
| 13 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 14 |
539103299 |
HCS 5/8F X 1 1/4 Price: $5.99 |
| 15 |
539990333 |
LOCKWASHER 5/8 Price: $2.99 |
| 16 |
539105361 |
DISCHARGE CHUTE 42" Price: $109.99 |
| 16 |
825193 |
Crankshaft Price: Call Us |
| 17 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 18 |
539102619 |
PIVOT PIN Price: $32.99 |
| 19 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 20 |
539105435 |
CENTER BAFFLE Price: $59.99 |
| 21 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 22 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 23 |
539105439 |
MAIN BAFFLE Price: $179.99 |
| 23 |
825230 |
Flywheel Price: Call Us |
| 24 |
539108350 |
STRUT, RIGHT This part replaces 539104609. Price: $549.99 |
| 24 |
539108351 |
STRUT, LEFT This part replaces 539104621. Price: $139.99 |
| 25 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 25 |
825203 |
Asm-Piston (Standard) Price: Call Us |
| 26 |
539104199 |
HCS 5/8C X 2 GR.5 Price: $2.99 |
| 26 |
825036 |
Ring Set (Standard) Price: Call Us |
| 27 |
539104197 |
STRUT MOUNT WELDMENT Price: $51.99 |
| 28 |
594944601 |
Bolts This part replaces 539101175. Price: $2.99 |
| 29 |
594722002 |
LIFT This part replaces 539102641. Price: $4.99 |
| 29 |
825033 |
Rod-Connecting Price: Call Us |
| 30 |
539990839 |
NUT 7/16C CENTERLOCK Price: $2.99 |
| 31 |
596577901 |
Nuts This part replaces 539102582. Price: $2.99 |
| 32 |
539100141 |
HCS 7/16F X 1 1/2 Price: $7.99 |
| 32 |
820128 |
Screw-Hex. Price: Call Us |
| 33 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 34 |
539100132 |
WASHER, CRANKSHAFT Price: $5.99 |
| 35 |
539101995 |
KEY 1/4 SQ X 1 1/8 Price: $2.99 |
| 36 |
539103283 |
PULLEY Price: $59.99 |
| 37 |
539103258 |
IDLER PULLEY (TALL) Price: $44.99 |
| 38 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 39 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 40 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 41 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 42 |
539103256 |
SPRING Price: $9.99 |
| 43 |
596583101 |
Screws This part replaces 539990582. Price: $3.99 |
| 44 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 44C |
820080 |
Screw-Hex. Price: Call Us |
| 45 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 46 |
539103230 |
IDLER ARM Price: $159.99 |
| 47 |
539103427 |
PIVOT BUSHING Price: $7.99 |
| 48 |
539105363 |
BELT SHIELD Price: $26.98 |
| 49 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 49 |
820081 |
Screw-Hex. Price: Call Us |
| 50 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 51 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 52 |
539103240 |
BELT, DECK 42" Price: $109.99 |
| 53 |
539102892 |
DECAL, NO STEP Price: $0.64 |
| 54 |
539913010 |
DECAL, CPSC Price: $3.99 |
| 62 |
820079 |
Screw-Hex. Price: Call Us |
| 154 |
820073 |
Nut-Hex. Price: Call Us |
| 220 |
820140 |
Washer-Thrust (Standard) Price: Call Us |
| 718C |
820059 |
Pin-Locating Price: Call Us |
| 743 |
825013 |
Gear-Drive Price: Call Us |
| 900 |
820116 |
Shaft-Gear Price: Call Us |
| 1073 |
820117 |
Plate-Idler Gear Price: Call Us |
| 1075 |
820326 |
Pulley-Crankshaft Price: Call Us |
| 1076 |
820142 |
Bearing-Rod (Standard) Price: Call Us |
| 1076A |
825019 |
Bearing Set-Rod (Standard) (Includes 3 Sets) Price: Call Us |
| 1079 |
825040 |
Bearing Set-Main (Standard) Price: Call Us |
