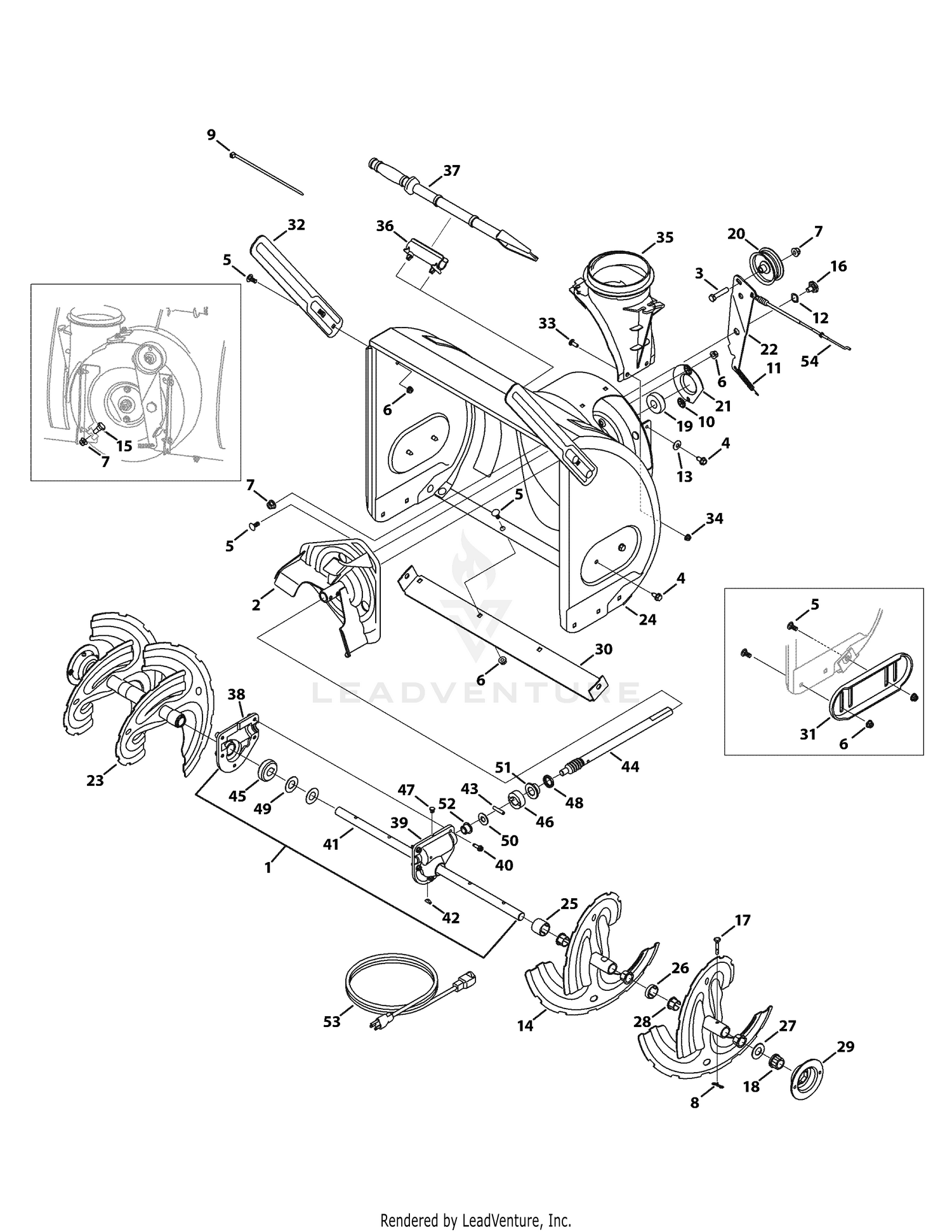

| Ref | Part Number | Description |
|---|
| 1 |
918-04165B |
Auger Gearbox 30", includes 38-52 This part replaces 918-04165A. Price: $392.88 |
| 2 |
684-04057C-0637 |
IMPELLER ASSEMBLY-12" This part replaces 684-04057A-0637. Price: $64.81 |
| 3 |
710-0347 |
Hex Head Screw, 3/8-16 x 1.75 Price: $4.39 |
| 4 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 5 |
710-0451 |
Bolt, Carriage, 5/16-18 x .750 Price: $3.53 |
| 6 |
712-04063 |
Nut, Flangelock, 5/16-18 Price: $3.56 |
| 7 |
712-04065 |
Nut, Flangelock, 3/8-16 Price: $3.68 |
| 8 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 9 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 10 |
726-04012 |
Nut, Push-on, .25 Dia This part replaces 926-04012. Price: $6.20 |
| 11 |
732-04460 |
Extension Spring, .38 OD x 4.59 Price: $4.69 |
| 12 |
736-0174 |
Washer, Wave, .625 x .885 x .015 Price: $5.94 |
| 13 |
736-0242 |
Washer, Bell, .340 x .872 x .060 Price: $3.75 |
| 14 |
684-04107A-0637 |
AUGER ASSEMBLY (LH) This part replaces 684-04107-0638. Price: $78.60 |
| 15 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 16 |
738-0281 |
Screw, Shoulder, .625 x .17, 3/8-16 This part replaces 938-0281. Price: $9.16 |
| 17 |
738-04124A |
Shear Pin, .25 x 1.50 Price: $1.56 |
| 18 |
941-0245 |
Bearing, Hex Flange, .75 ID Price: $9.07 |
| 19 |
941-0309 |
Bearing, Ball, .75 ID x 1.85 OD Price: $69.59 |
| 20 |
756-04224 |
Pulley, Idler, Flat, 2.75 OD Price: $24.80 |
| 21 |
790-00075B |
BEARING HOUSING 1.85 ID This part replaces 790-00075. Price: $5.66 |
| 22 |
790-00080D |
AUGER IDLER BRACKET This part replaces 790-00080A-0637. Price: $25.44 |
| 23 |
684-04108A-0637 |
AUGER ASSEMBLY (RH) This part replaces 684-04108-0638. Price: $83.13 |
| 25 |
731-04870 |
Spacer, 1.25OD x .75ID x 1.00 LG Price: $4.06 |
| 26 |
731-04871 |
Spacer, 1.25OD x .75ID x 3/16 LG Price: $5.94 |
| 27 |
736-0188 |
Washer, Flat, .76 x 1.49 x .06 Price: $3.75 |
| 28 |
741-0493C |
FLANGE BUSHING This part replaces 741-0493A. Price: $3.86 |
| 29 |
790-00087A-0637 |
Bearing, 1" Hex Price: $20.15 |
| 30 |
790-00119-0637 |
Shave Plate, 2.25 x 29.66 This part replaces 790-00119-4033. Price: $36.59 |
| 31 |
790-00091-0637 |
Skid Shoe, Deluxe This part replaces 790-00091-4033. Price: $26.92 |
| 32 |
790-00181-0637 |
Blade Guide This part replaces 790-00181-0691. Price: $37.95 |
| 33 |
710-0703 |
Screw, Carriage, 1/4-20 x .75 Price: $3.66 |
| 34 |
712-04064 |
Nut, Flangelock, 1/4-20 Price: $3.64 |
| 35 |
731-04705D |
CHUTE ADAPTER This part replaces 731-04705C. Price: $23.30 |
| 36 |
731-11421 |
Cleanout Tool Mount This part replaces 731-2635. Price: $9.83 |
| 37 |
931-2643 |
Chute Cleanout Tool This part replaces 731-2643. Price: $16.68 |
| 38 |
918-0123A |
Reducer, RH Price: $46.04 |
| 39 |
918-0124A |
Reducer, LH Price: $45.91 |
| 40 |
710-0642 |
Screw, 1/4-20 x 0.750 Price: $4.05 |
| 41 |
711-04282A |
Auger Axle, 30" This part replaces 711-04282. Price: $98.99 |
| 42 |
914-0161 |
Key, Hi-Pro, 3/16 x 5/8 Price: $3.82 |
| 43 |
715-04021 |
Dowel Pin, .25 OD x 1.25 LG Price: $3.68 |
| 44 |
917-04126 |
Worm Shaft, .75 OD Price: $69.83 |
| 45 |
917-04861 |
WORM GEAR 20T This part replaces 917-0528A. Price: $37.82 |
| 46 |
718-04071 |
Collar Thrust, .756 ID x .600 Price: $6.73 |
| 47 |
721-0325 |
Plug, 1/4 x .437 Price: $3.82 |
| 48 |
721-0327 |
Oil Seal, .75 x 1.131 x .188 Price: $6.10 |
| 49 |
736-0351 |
Washer, Flat, .760 ID x 1.5 OD This part replaces 936-0351. Price: $3.93 |
| 50 |
736-3084 |
Washer, Flat, .51 x 1.12 x .06 Price: $4.39 |
| 51 |
741-0662 |
Bearing, Flange, .75 ID x 1.00 x .59 Price: $9.52 |
| 52 |
741-0663 |
Bearing, Flange, .50 ID x .75 x .59 Price: $8.86 |
