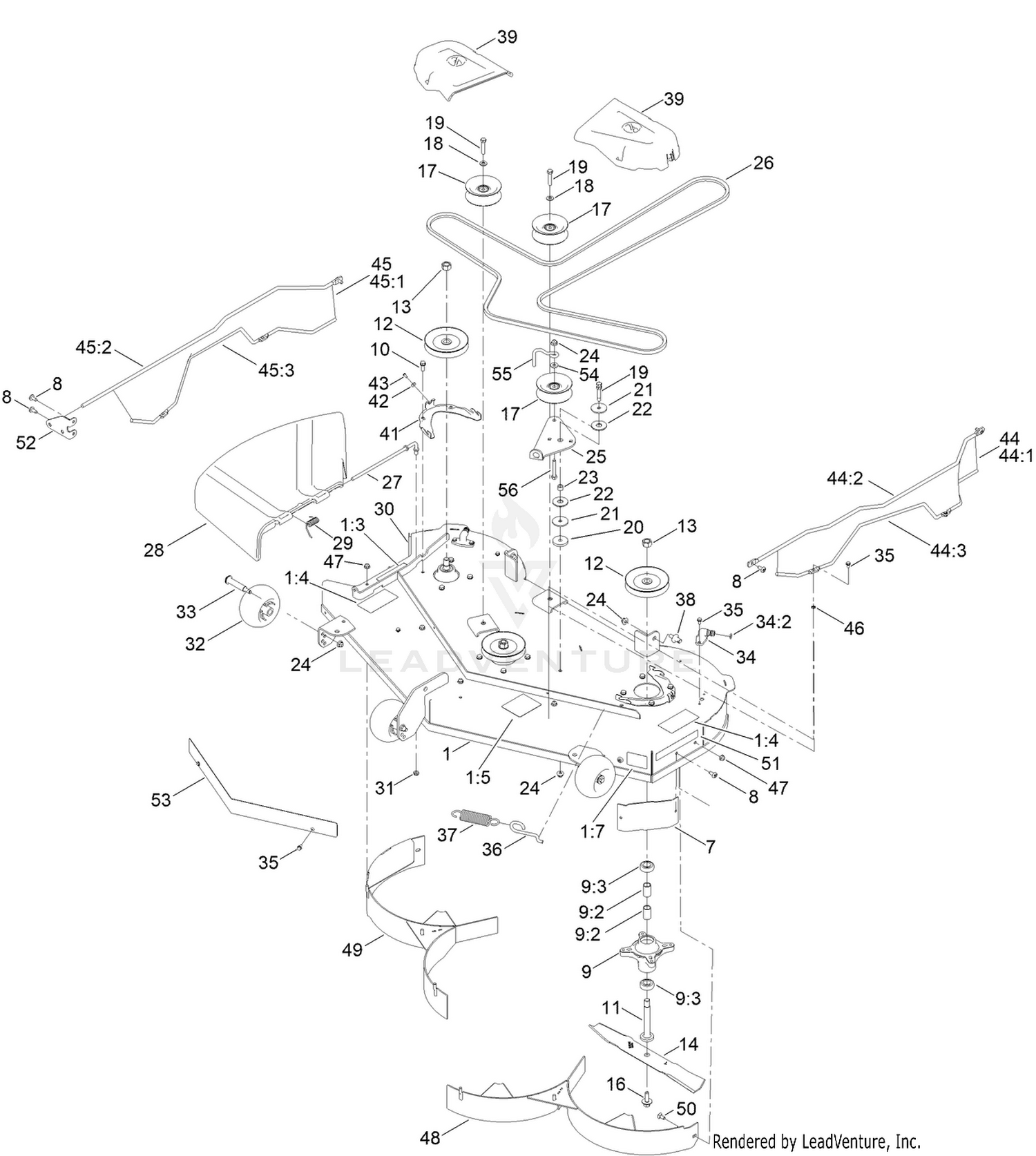

| Ref | Part Number | Description |
|---|
| 7 |
139-2448-03 |
BAFFLE-CORNER Price: $15.65 |
| 8 |
138-9753 |
SCREW Price: $0.39 |
| 9 |
139-3214 |
SPINDLE ASM Price: $51.71 |
| 10 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 11 |
117-7268 |
SHAFT-SPINDLE Price: $19.98 |
| 12 |
139-7454 |
PULLEY Price: $13.43 |
| 13 |
139-2578 |
NUT-HEX Price: $0.90 |
| 14 |
115-5062-03 |
BLADE-MULCH, 17.50 INCH Price: $24.06 |
| 16 |
145-0411 |
BOLT-BLADE, SEMS Price: Call Us |
| 17 |
132-9420 |
PULLEY-IDLER, FLAT Price: $25.16 |
| 18 |
115-1166 |
WASHER-FLAT Price: $3.08 |
| 19 |
138-0722 |
SCREW-HH Price: $0.80 |
| 20 |
139-5802 |
WASHER-PLAIN Price: $3.05 |
| 21 |
139-1726 |
WASHER-REBOUND Price: $1.46 |
| 22 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 23 |
115-4986 |
SPACER Price: $1.39 |
| 24 |
119-4042 |
NUT-HF, NI Price: $0.69 |
| 25 |
138-7262 |
ARM-IDLER Price: $12.02 |
| 26 |
119-8820 |
V-BELT Price: $48.15 |
| 27 |
137-2019 |
ROD-PIVOT Price: $8.15 |
| 28 |
138-7502 |
DEFLECTOR-DISCHARGE Price: $41.95 |
| 29 |
138-7268 |
SPRING-TORSION Price: $1.69 |
| 30 |
138-9800-03 |
BAFFLE-CUTOFF Price: $6.71 |
| 31 |
121-4600 |
NUT-HEX Price: $0.78 |
| 32 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 33 |
139-2551 |
BOLT-SHOULDER Price: $3.74 |
| 34 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 35 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 36 |
138-7266 |
SPRING-RETURN, HOOK Price: $2.95 |
| 37 |
138-7264 |
SPRING-EXTENSION Price: $5.10 |
| 38 |
139-5871 |
PIN-DECK Price: $1.66 |
| 39 |
144-1906 |
COVER-BELT Price: $7.65 |
| 41 |
139-3272-03 |
BRACKET-COVER, BELT Price: $7.82 |
| 42 |
137-3079 |
WASHER-PLAIN Price: $0.32 |
| 43 |
94-6961 |
SCREW Price: $0.89 |
| 44 |
140-0372 |
LEFT GUARD ASM Price: $33.55 |
| 45 |
140-0373 |
RIGHT GUARD ASM Price: $33.55 |
| 46 |
1-803037 |
NUT-RETAINING Price: $1.39 |
| 47 |
119-4041 |
NUT-HF Price: $0.48 |
| 50 |
139-2630 |
BOLT-CARR Price: $0.89 |
| 51 |
119-2368 |
DECAL-RECYCLER Price: $3.60 |
| 52 |
140-5183-01 |
PLATE-MOUNT, GUARD Price: $9.51 |
| 53 |
139-7485-03 |
SHIELD-FRONT Price: $26.85 |
| 54 |
138-7207 |
SPACER-HUB, BLOWER Price: $0.56 |
| 55 |
138-7270 |
GUIDE-BELT, IDLER Price: $1.69 |
