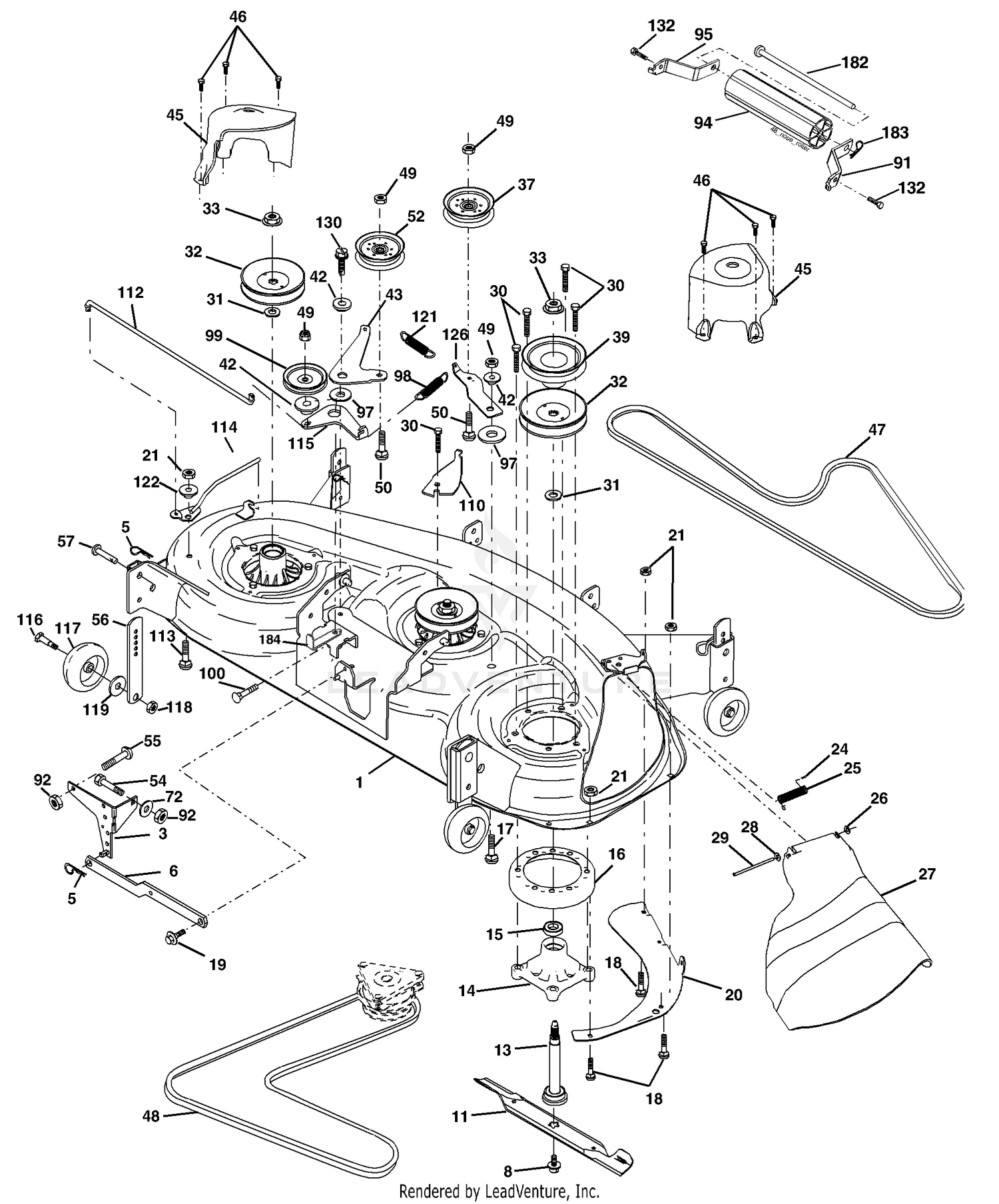

| Ref | Part Number | Description |
|---|
| 1 |
107-0851 |
SOLENOID ASM Price: $487.11 |
| 1 |
180358 |
Deck Weldment Mower 48 Price: Call Us |
| 2 |
107-0850 |
SOLENOID VALVE ASM Price: $138.19 |
| 3 |
107-0863 |
BOLT Price: $1.22 |
| 3 |
138017 |
Bracket Asm., Sway Bar Price: Call Us |
| 4 |
107-0864 |
BOLT Price: $4.07 |
| 5 |
107-0840 |
PUMP BODY ASM Price: $1,036.28 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
107-0848 |
PIN Price: $2.58 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 7 |
107-0856 |
O-RING Price: $5.13 |
| 8 |
107-0845 |
SPRING Price: $47.85 |
| 8 |
174365 |
Bolt 7/16 Asm. Blade Price: Call Us |
| 9 |
107-0844 |
COLLAR Price: $68.97 |
| 11 |
107-0846 |
COVER Price: Call Us |
| 12 |
93-0457 |
BOLT AND WASHER ASM Price: $3.89 |
| 13 |
174360 |
Shaft Mandrel Asm. Greaseable Price: Call Us |
| 14 |
107-0843 |
FILTER BYPASS VALVE ASM Price: $98.42 |
| 14 |
174358 |
Housing Mandrel Price: Call Us |
| 15 |
107-0818 |
PISTON Price: $250.42 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
107-0842 |
CHARGE RELIEF VALVE ASM Price: $57.20 |
| 16 |
174493 |
Stripper Mandrel Deck Price: Call Us |
| 17 |
107-0841 |
PRESSURE VALVE ASM Price: $75.24 |
| 17 |
72110610 |
Bolt RDHD Sq Neck 3/8-16 x 1.25 Price: Call Us |
| 18 |
108-5194 |
FILTER-OIL, HYD Price: $39.77 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
107-0865 |
KEY Price: $6.71 |
| 19 |
132827 |
Bolt, Hex Hd, Shoulder 5/16-18 Price: Call Us |
| 20 |
107-0855 |
CHARGE PUMP SEAL KIT Price: $18.69 |
| 20 |
174378 |
Baffle, Vortex Mower Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
180655X428 |
Deflector Shield Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 37 |
177968 |
Pulley, Idler Price: Call Us |
| 39 |
174375 |
Pulley, Idler, Driven Price: Call Us |
| 42 |
122052X |
Spacer, Retainer Price: Call Us |
| 43 |
174373 |
Arm, Idler Secondary Price: Call Us |
| 45 |
180806 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
180808 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
174368 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73900600 |
Nut, Crownlock 3/8-16 unc Price: Call Us |
| 50 |
72110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 52 |
175820 |
Pulley Idler Flat Price: Call Us |
| 54 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 55 |
72140608 |
Bolt Rdhd Sqnk 3/8-16 unc x 1 Price: Call Us |
| 56 |
155986 |
Bar Pnt Adj. Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 72 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 91 |
180535 |
Bracket Asm Noseroller RH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 94 |
176066 |
Noseroller Price: Call Us |
| 95 |
180534 |
Bracket Asm Noseroller LH Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
179479 |
Spring Primary Drive Price: Call Us |
| 99 |
184058 |
Pulley Idler"V" Price: Call Us |
| 100 |
72110616 |
Bolt RDHD Sqnk 3/8-16 unc x 2 Price: Call Us |
| 110 |
175016 |
Arm Spring Secondary Price: Call Us |
| 112 |
174387 |
Link Tension Relief Lever Price: Call Us |
| 113 |
72110506 |
Bolt Carr. 5/16-18 x 3/4 Price: Call Us |
| 114 |
174384 |
Tension Asm Relief Lever Price: Call Us |
| 115 |
174609 |
Arm Spring Tension Relief Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
174873 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 121 |
174371 |
Spring Secondary Drive Price: Call Us |
| 122 |
174606 |
Bushing Pivot Tension Relief Price: Call Us |
| 126 |
174372 |
Arm, Idler, Primary Deck Price: Call Us |
| 130 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 132 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 182 |
179127 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
173979 |
Keeper Belt Idler Price: Call Us |
