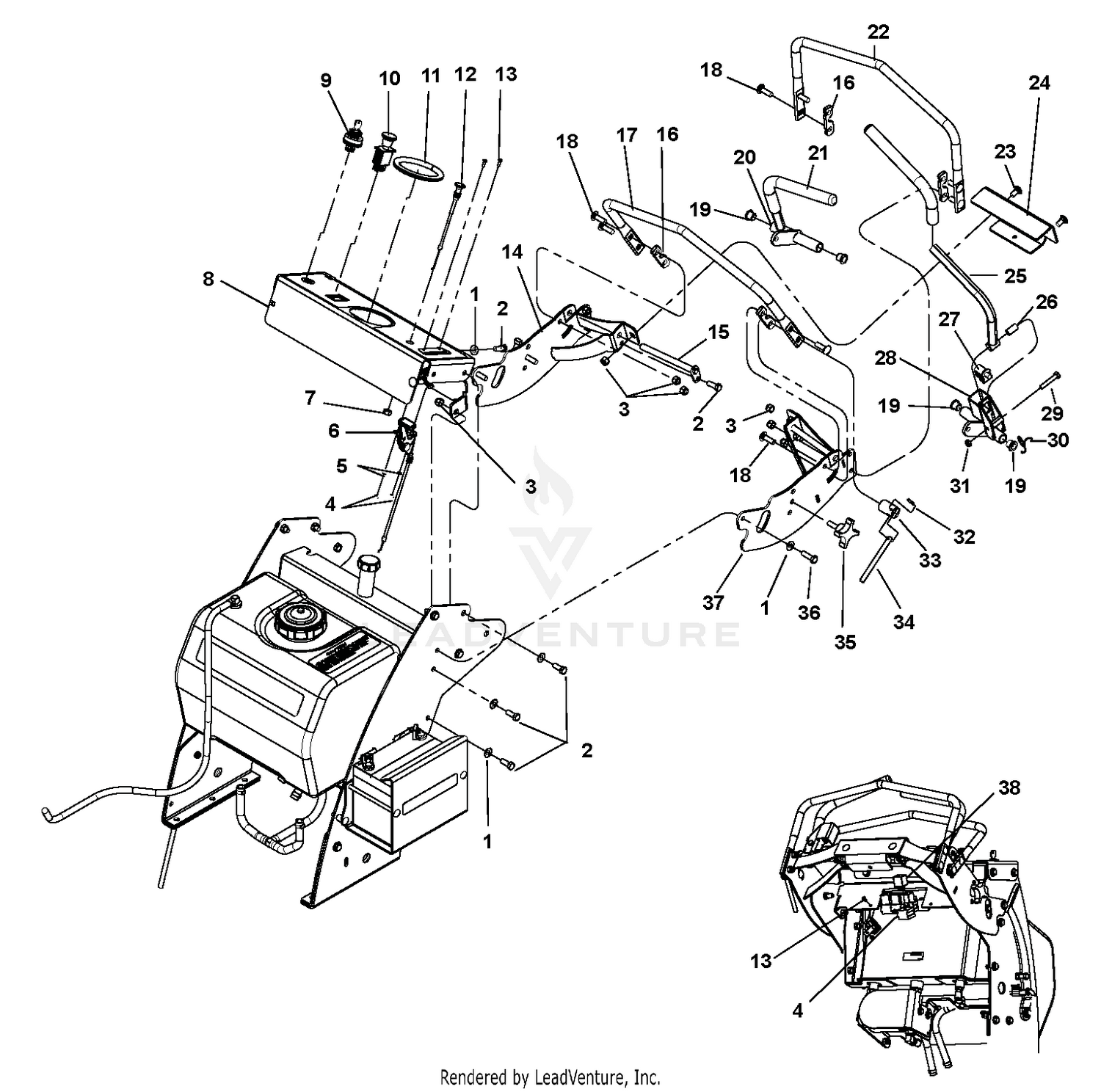

| Ref | Part Number | Description |
|---|
| D18090 |
SWITCH, |
TWO POSITION KEY Price: $19.45 D18090 |
| 1 |
00964501 |
WASHER, .406X.813X.065 FLAT Y Price: Call Us |
| 2 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 3 |
00968087 |
LOCKNUT, 3/8-16 NYLOC Y Price: Call Us |
| 4 |
06509100 |
NUT-KEPS 8-32 Price: Call Us |
| 5 |
06300112 |
WSHR-LK #8 MED YWZC This part replaces 00967038. Price: $0.70 |
| 6 |
06900714 |
CABLE, THROTTLE 49.5" This part replaces 00200413. Price: $31.45 |
| 7 |
00967054 |
NUT, 3/8-24 STD HEX Y Price: Call Us |
| 8 |
50521005 |
ASSY, CONSOLE W/DECAL NG Price: Call Us |
| 9 |
00180620 |
SWITCH, KEY - 3 POSITION Price: $32.45 |
| 10 |
00136574 |
SWITCH, PTO ENGAGEMENT Price: $25.45 |
| 11 |
00170900 |
TRIM, RUBBER EDGE 12" Price: $10.95 |
| 12 |
00180273 |
CABLE, CHOKE 48.0" Price: $49.95 |
| 13 |
D24020 |
SCREW,8-32X1/2 Price: Call Us |
| 14 |
03974451 |
WLDT, RH HANDLE MOUNT 5 DEG Price: $66.45 |
| 15 |
00203893 |
WLDT, PIN AND LOCK Y Price: $26.95 |
| 16 |
03976751 |
SHIM, 5 DEG SPEED BAR Price: $5.45 |
| 17 |
03730751 |
SUPPORT, HANDLE PAINTED Price: $98.95 |
| 18 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 19 |
D18013 |
BRG, FLG .500X.625X.500 BRNZ Price: $6.45 |
| 20 |
03976551 |
WLDT, RH DRIVE LEVER 5 DEG Price: $59.35 |
| 21 |
07500222 |
GRIP-HANDLEBAR .750IDX11.125LG This part replaces D18093. Price: $7.45 |
| 22 |
03730751 |
SUPPORT, HANDLE PAINTED Price: $98.95 |
| 23 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06223900. Price: $1.45 |
| 24 |
03974651 |
PLATE, HANDLE MOUNT LINK Price: $6.55 |
| 25 |
03976651 |
WLDT, LH DRIVE LEVER 5 DEG Price: $59.35 |
| 26 |
D33004 |
SPACER, .500 X .330 X .980 Price: $6.45 |
| 28 |
00203898 |
WLDT, LH HANDLE MOUNT Price: $67.55 |
| 29 |
05901804 |
BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95 |
| 30 |
D38003 |
SPRING, TOR 1.00X.062 Y Price: $8.45 |
| 31 |
06500820 |
NUT-NYL .31-18 G5 ZCC This part replaces 00967115. Price: $0.95 |
| 32 |
34H60 |
Pin, Spring 5/32 x 1 Price: Call Us |
| 33 |
D13308 |
BASE, LOCK LEVER Y Price: Call Us |
| 34 |
D13309 |
LEVER, LOCK Y Price: Call Us |
| 35 |
03820400 |
KNOB, 3/8 X 1.25 - 4 PRONG Price: $9.45 |
| 36 |
05901724 |
BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45 |
| 37 |
03974451 |
WLDT, RH HANDLE MOUNT 5 DEG Price: $66.45 |
| 38 |
00102770 |
RELAY, ISO MINI ELEC. Price: $24.45 |
