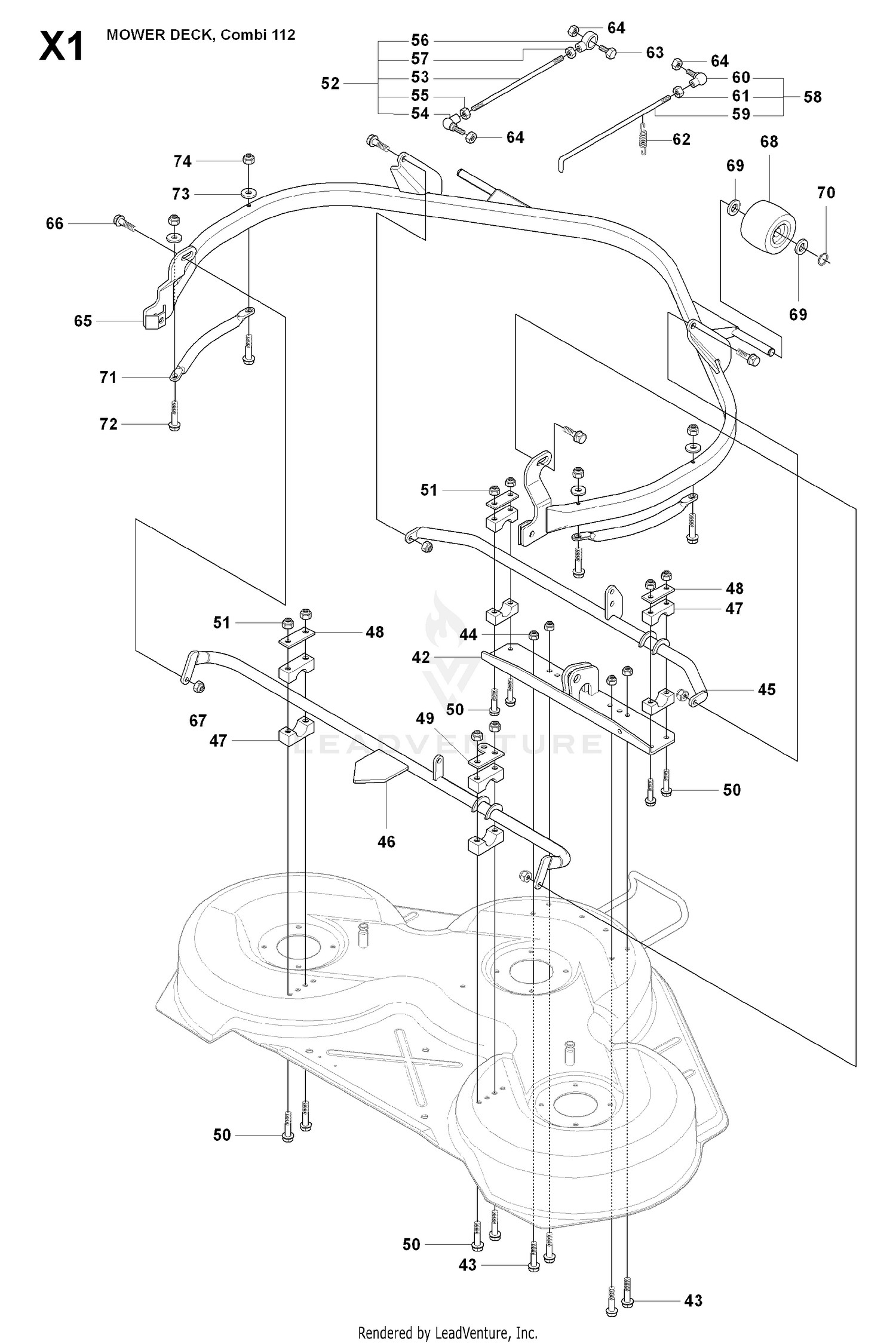

44"/112CM CUTTING DECK
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 100-6589 | SEAL-OIL Price: $52.62 |
| 2 | 100-6593 | SEAL-OIL Price: $87.39 |
| 3 | 32151-75 | RING-RETAINING Price: $2.51 |
| 4 | 100-6596 | SCREW-PPH Price: $2.99 |
| 5 | 100-6597 | RING-SNAP, EXTERNAL Price: $6.69 |
| 6 | 93-8925 | ROLLER Price: $23.82 |
| 7 | 93-8919 | BEARING-NEEDLE, THRUST Price: $44.05 |
| 8 | 93-8923 | SPRING-WAVE Price: $107.72 |
| 9 | 99-2902 | BEARING Price: $30.99 |
| 10 | 92-9705 | BEARING Price: $69.99 |
| 11 | 3274-9 | SCREW-HSH This part replaces 3245-6. Price: $2.99 |
| 12 | 32120-84 | RING-SNAP, EXTERNAL Price: $0.61 |
| 13 | 71-6790 | SEAL-OIL Price: $28.50 |
| 14 | 106-7867 | ROLL CAGE ASM This part replaces 100-2568. Price: $251.86 |
| 42 | 535423001 | BRACKET Price: $54.99 |
| 43 | 725245171 | SCREW Price: $2.08 |
| 44 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 45 | 535430601 | NEEDS DESCRIPTION Price: Call Us |
| 46 | 535431201 | PIPE Price: $82.26 |
| 47 | 506869601 | BEARING Price: $8.99 |
| 48 | 506813801 | PLATE Price: $5.99 |
| 50 | 725246151 | BOLT Price: $4.99 |
| 51 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 52 | 506933904 | PARALLEL RODY ASSY Price: $46.24 |
| 53 | 506814906 | ROD Price: $11.52 |
| 54 | 506789901 | LINK Price: $89.99 |
| 55 | 506897601 | NUT Price: $3.99 |
| 56 | 506951701 | LINK Price: $39.99 |
| 57 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 58 | 506941206 | CLUTCH ROD ASSY Price: $27.84 |
| 59 | 506941306 | ROD Price: $15.99 |
| 60 | 506789901 | LINK Price: $89.99 |
| 61 | 506897601 | NUT Price: $3.99 |
| 62 | 506535603 | SPRING Price: $4.99 |
| 63 | 725249571 | SCREW Price: $6.99 |
| 64 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 65 | 535412302 | Price: Call Us |
| 66 | 506597401 | BOLT Price: $5.99 |
| 67 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 68 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 69 | 535464101 | WASHER Price: $3.99 |
| 70 | 735311700 | RETAINING RING SGA 15 Price: $2.99 |
| 71 | 535476301 | RAIL Price: $45.99 |
| 72 | 727638301 | Bolt Price: $1.61 |
| 73 | 734181251 | WASHER This part replaces 734115601. Price: $0.99 |
| 74 | 732211601 | LOCKNUT M6 Price: $4.99 |
