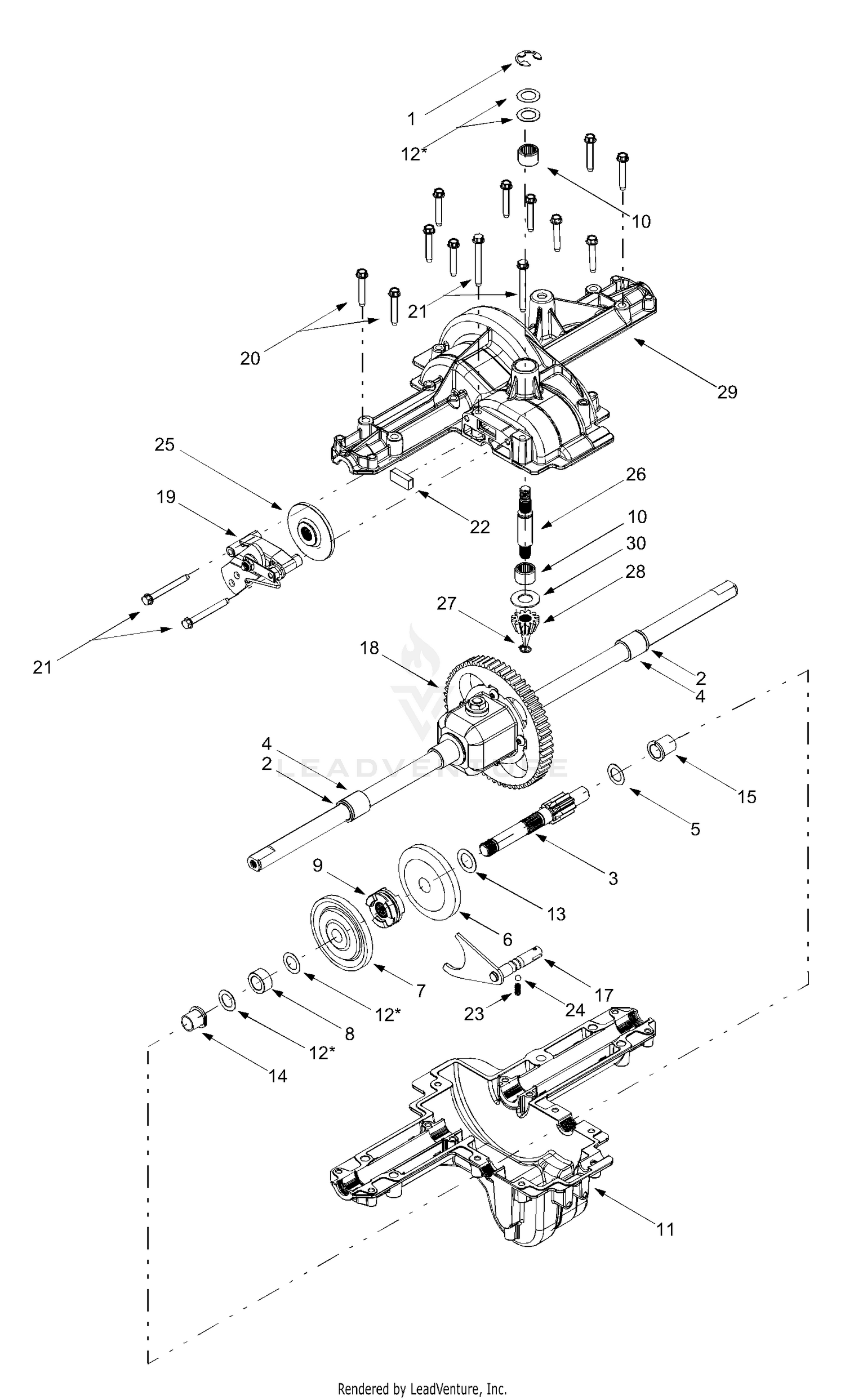

| Ref | Part Number | Description |
|---|
| 2 |
921-0338 |
Seal, .75 x 1.0 x .125 Price: $6.59 |
| 3 |
711-1431 |
Drive Shaft Price: $115.07 |
| 4 |
741-05060 |
SLEEVE BEARING .75X1.00X1.00 This part replaces 941-0340. Price: $7.69 |
| 5 |
736-0495 |
THRUST WASHER This part replaces 936-0495. Price: $3.90 |
| 6 |
917-1363 |
BEVEL GEAR .695" 42 TEETH Not Available Price: |
| 8 |
750-1234 |
SPACER-.633 x 1.0 x .513 Not Available Price: |
| 9 |
718-0228 |
Clutch Collar Price: $23.91 |
| 10 |
941-0335 |
Needle Bearing, .625 x .813 x 495 Price: $16.86 |
| 11 |
719-0394 |
Lower Housing Price: $155.85 |
| 13 |
736-0519 |
Thrust Washer This part replaces 936-0519. Price: $4.73 |
| 14 |
941-0336 |
Flange Bearing, 5/8 x 3/4 x 3/4 Price: $10.28 |
| 15 |
941-0337 |
Flange Bearing, 5/8 x 3/4 x 15/16 Price: $9.58 |
| 17 |
611-0133 |
DETENT SHAFT ASSEMBLY Not Available Price: |
| 18 |
918-04097A |
DIFFERENTIAL ASSEMBLY Not Available Price: |
| 19 |
961-0006 |
Brake Assembly Price: $40.88 |
| 20 |
710-1325 |
Self-tapping Screw, 1/4-20 x 1.625 Price: $4.11 |
| 21 |
710-1206 |
Self-tapping Screw, 1/4-20 x 2.375 Price: $6.20 |
| 22 |
917-0678 |
Brake Pad Price: $6.87 |
| 23 |
932-05125 |
DETENT SHAFT SPRING This part replaces 932-0863. Price: $3.66 |
| 24 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 25 |
761-0202 |
Brake Disc Price: $14.48 |
| 26 |
711-1430 |
INPUT SHAFT Not Available Price: |
| 27 |
716-0108 |
Retaining Ring 7/16" Ext. This part replaces 916-0108. Price: $4.53 |
| 29 |
719-0580 |
Upper Housing Price: $144.00 |
