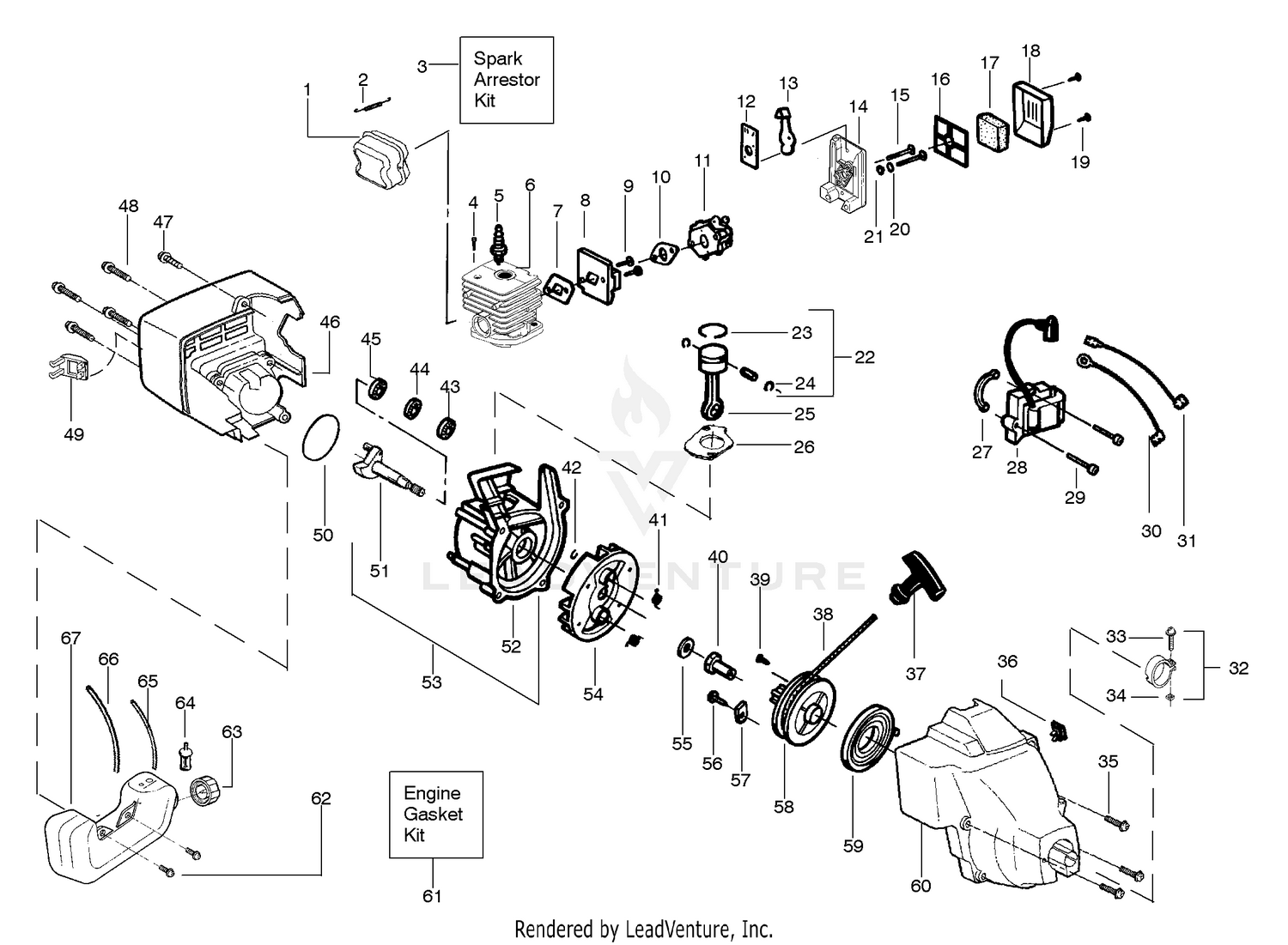

| Ref | Part Number | Description |
|---|
| 0 |
640092A |
CARBURETOR This part replaces 632341. Price: $77.00 |
| 1 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 1 |
632130 |
SHAFT & LEV Price: $5.16 |
| 2 |
104-1843 |
FITTING-GREASE, 90 DEG Price: $5.20 |
| 2 |
530042088 |
Muffler Spring Price: $1.99 |
| 2 |
632169 |
SPRING Price: $1.25 |
| 3 |
530071391 |
Kit-Spark Arrestor Price: $7.99 |
| 4 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 5 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 6 |
530012353 |
CYLINDER This part replaces 530069619. Price: $6.99 |
| 6 |
631621 |
SHUTTER Price: $1.20 |
| 7 |
530069616 |
Gasket-Cyl./Carb.(kit) Price: $6.99 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
530047659 |
Carb. Adaptor Price: $2.99 |
| 9 |
530016014 |
Screw Price: $1.99 |
| 10 |
31841A |
SHAFT & LEV This part replaces 31841. Price: $6.54 |
| 10 |
530069616 |
Gasket-Carb.(kit) Price: $6.99 |
| 12 |
530038747 |
Choke Plate Mounting Price: $1.99 |
| 13 |
530038686 |
Choke Shutter Price: $1.99 |
| 14 |
530052431 |
Air Box Price: $1.99 |
| 14 |
631815 |
SHUTTER Price: $1.20 |
| 15 |
530015887 |
Screw Price: $1.99 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
530036569 |
Plate - Filter Support Price: $1.99 |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 17 |
530036575 |
Air Filter Foam Price: $1.99 |
| 18 |
530036568 |
Air Filter Cover Price: $1.99 |
| 19 |
530016349 |
Screw Price: $1.99 |
| 20 |
530015852 |
Spacer-Choke Price: $1.99 |
| 21 |
530015254 |
Washer Price: $1.99 |
| 23 |
530036404 |
Piston Ring Price: $4.99 |
| 24 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 25 |
530069615 |
Connecting Rod Ass'y. Price: $14.99 |
| 25 |
631700 |
FLOAT BOWL Price: $2.99 |
| 26 |
530069616 |
Gasket-Cylinder(kit) Price: $6.99 |
| 27 |
530036145 |
Spacer-Module Price: $1.99 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
530055160 |
Ignition Module Price: $34.99 |
| 28 |
632019A |
FLOAT This part replaces 632019. Price: $5.85 |
| 29 |
530015954 |
Screw Price: $1.99 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
530014663 |
Assy-Leadwire Price: $5.99 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 33 |
530016381 |
Screw-Nose Cone Price: $2.99 |
| 34 |
530016382 |
Nut-Nose Cone Price: $2.99 |
| 35 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 36 |
530071356 |
Kit-On/Off Switch Price: $4.99 |
| 37 |
530027569 |
Starter Handle Price: $1.99 |
| 38 |
530069232 |
Kit - Rope Price: $3.99 |
| 39 |
530016080 |
Screw Price: $1.99 |
| 40 |
530038604 |
Drive Coupling Price: $1.99 |
| 41 |
530023817 |
Starter Dog Spring Price: $1.99 |
| 42 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 43 |
530055728 |
Outer Bearing Price: $6.99 |
| 44 |
530071615 |
Kit-C'case Seal Price: $4.99 |
| 44 |
631334A |
GASKET This part replaces 631334. Price: $2.25 |
| 45 |
530032125 |
Inner Bearing Price: $11.99 |
| 46 |
530069685 |
Assy.-Fan Hsg/Shroud Price: $22.99 |
| 47 |
530015886 |
Screw Price: $1.99 |
| 48 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 49 |
530054536 |
Guard-Muffler Price: $1.99 |
| 51 |
530054753 |
Assy-Crankshaft Price: $27.99 |
| 54 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 55 |
530015828 |
Washer-Flat Price: $1.99 |
| 56 |
530015775 |
Screw Price: $1.99 |
| 57 |
530027523 |
Retainer-Can Price: $2.99 |
| 59 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 60 |
530069685 |
Kit-Fan Hsg/Shroud Price: $22.99 |
| 62 |
530016379 |
Retainer Price: $2.99 |
| 63 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 64 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 65 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 66 |
530069216 |
Kit-Fuel Line (Large) Price: $3.99 |
