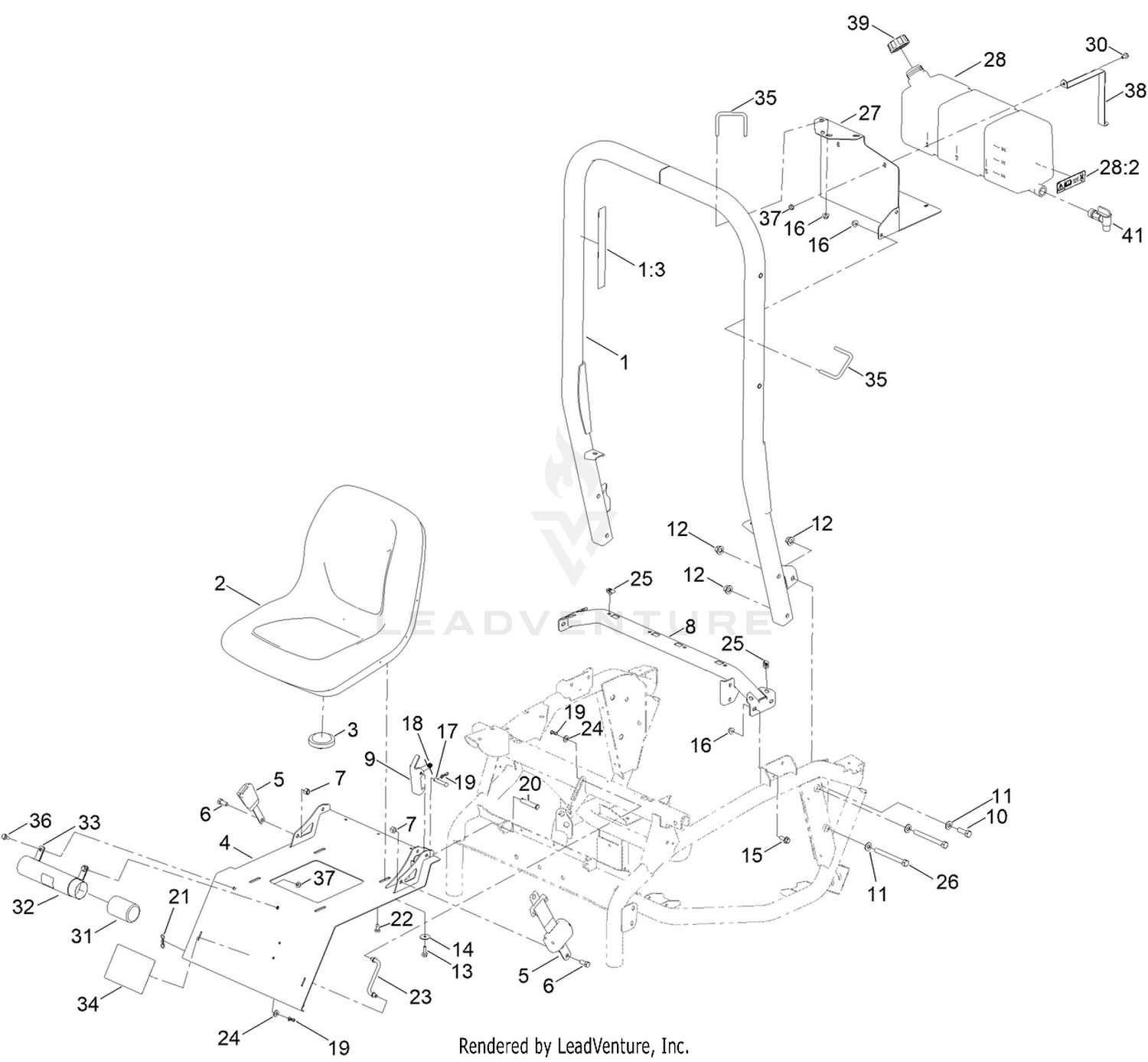

| Ref | Part Number | Description |
|---|
| 1 |
127-3918 |
ROPS ASM Price: $879.25 |
| 2 |
112-2923 |
SEAT ASM Price: $290.09 |
| 3 |
100-3524 |
SWITCH-SEAT Price: $57.99 |
| 4 |
125-0872-03 |
PLATE-SEAT Price: $368.34 |
| 5 |
110-0413 |
SEATBELT-RETRACTABLE Price: $286.99 |
| 6 |
3212-4 |
SCREW-HH Price: $2.73 |
| 7 |
3296-7 |
NUT-LOCK Price: $0.34 |
| 8 |
163-2948-03 |
SEAT CROSS-MEMBER, ASM [BLACK] Price: Call Us |
| 9 |
125-0916 |
LATCH-SEAT Price: $21.42 |
| 10 |
325-6 |
SCREW-HH Price: $1.42 |
| 11 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 12 |
99-5107 |
NUT-LOCK Price: $1.77 |
| 13 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 14 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 15 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
283-82 |
PIN-CLEVIS Price: $3.94 |
| 18 |
104-4821 |
SPRING-TORSION Price: $6.26 |
| 19 |
119-1415 |
PIN-COTTER, LOCKING Price: $0.22 |
| 20 |
100-6541 |
PIN-CLEVIS Price: $24.99 |
| 21 |
119-1416 |
PIN-COTTER, LOCKING Price: $0.64 |
| 22 |
87-8460 |
BUMPER-RUBBER Price: $2.05 |
| 23 |
125-0909 |
ROD-PROP, SEAT Price: $18.69 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
94-2413 |
NUT-U Price: $1.79 |
| 26 |
325-19 |
SCREW-HH Price: $2.57 |
| 27 |
131-5797-03 |
MOUNT-TANK, EYE WASH Price: $55.99 |
| 28 |
132-7745 |
FRESH WATER TANK ASM Price: $208.11 |
| 30 |
3234-7 |
SCREW-HHF Price: $1.99 |
| 31 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 32 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 33 |
2412-133 |
CLAMP-R Price: $3.19 |
| 34 |
133-0382 |
DECAL-SERVICE/MAINTENANCE Price: $35.56 |
| 35 |
119-6727 |
U-BOLT Price: $6.58 |
| 36 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 37 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 38 |
132-7628-03 |
BAND-TANK, EYE WASH Price: $16.45 |
| 39 |
137-4291 |
CAP-TANK, FRESH WATER Price: $25.20 |
