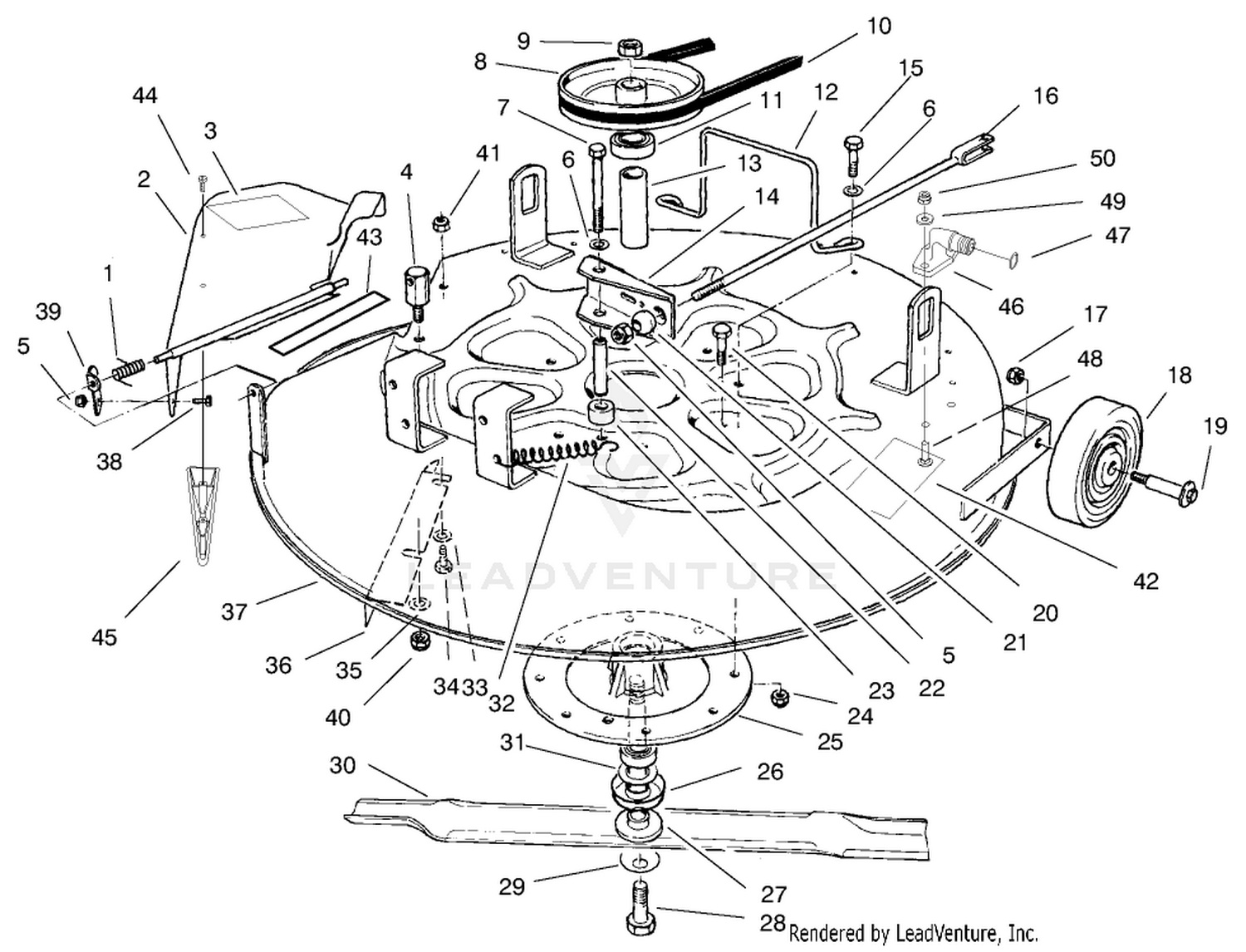

| Ref | Part Number | Description |
|---|
| 1 |
28-8010 |
SPRING Price: $13.67 |
| 2 |
93-9492 |
DEFLECTOR ASM Price: $167.67 |
| 3 |
93-7010 |
DECAL-DANGER Price: $7.25 |
| 4 |
67-0140 |
POST-PIVOT Price: $17.47 |
| 5 |
3296-8 |
NUT-HEX Price: $1.29 |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 7 |
322-19 |
SCREW-HH Price: $5.99 |
| 8 |
80-4420 |
PULLEY-DECK Price: $69.61 |
| 9 |
3219-6 |
NUT-HEX Price: $2.78 |
| 10 |
98-0710 |
V-BELT Price: $28.44 |
| 11 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 12 |
80-4520 |
GUIDE-DECK BELT Price: $50.81 |
| 13 |
62-3660 |
SPACER-BEARING Price: $16.42 |
| 14 |
67-1370 |
DISCONTINUED Price: Call Us |
| 15 |
322-6 |
SCREW-HH Price: $0.45 |
| 16 |
67-0570 |
DECK BRAKE ROD WA Price: $30.91 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 18 |
61-9760 |
WHEEL-DECK Price: $29.26 |
| 19 |
136-7198 |
BOLT-SHOULDER This part replaces 56-6590. Price: $1.49 |
| 20 |
322-3 |
SCREW-HH Price: $0.79 |
| 21 |
67-0710 |
BALL-SWIVEL, STOP Price: $2.43 |
| 22 |
67-0730 |
DISCONTINUED Price: Call Us |
| 23 |
76-3810 |
DISCONTINUED Price: Call Us |
| 24 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 25 |
67-0970 |
CASTING-SPINDLE Price: $159.37 |
| 26 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 27 |
80-4340 |
SHAFT-SPINDLE Price: $48.72 |
| 28 |
26-0671 |
SCREW-HH Price: $7.99 |
| 29 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 30 |
67-0200-03 |
BLADE-25.18" This part replaces 67-0200. Price: $33.57 |
| 31 |
80-4380 |
SPACER Price: $4.08 |
| 32 |
67-1440 |
SPRING-EXTENSION Price: $15.99 |
| 33 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 34 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 35 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 36 |
67-0130-01 |
PLATE-BAFFLE Price: $18.73 |
| 37 |
95-7485 |
DISCONTINUED Price: Call Us |
| 38 |
321-5 |
SCREW-HH Price: $0.22 |
| 39 |
67-1600-01 |
BRACKET-DEFLECTOR Price: $5.28 |
| 40 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 41 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 42 |
93-7010 |
DECAL-DANGER Price: $7.25 |
| 43 |
93-7009 |
DECAL-DANGER Price: $6.79 |
| 44 |
32144-111 |
SCREW-PPH Price: $0.66 |
| 45 |
93-7696 |
KICKER Price: $9.85 |
| 46 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 47 |
46-6290 |
O-RING Price: $2.59 |
| 48 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 49 |
3256-1 |
WASHER-FLAT Price: $0.39 |
