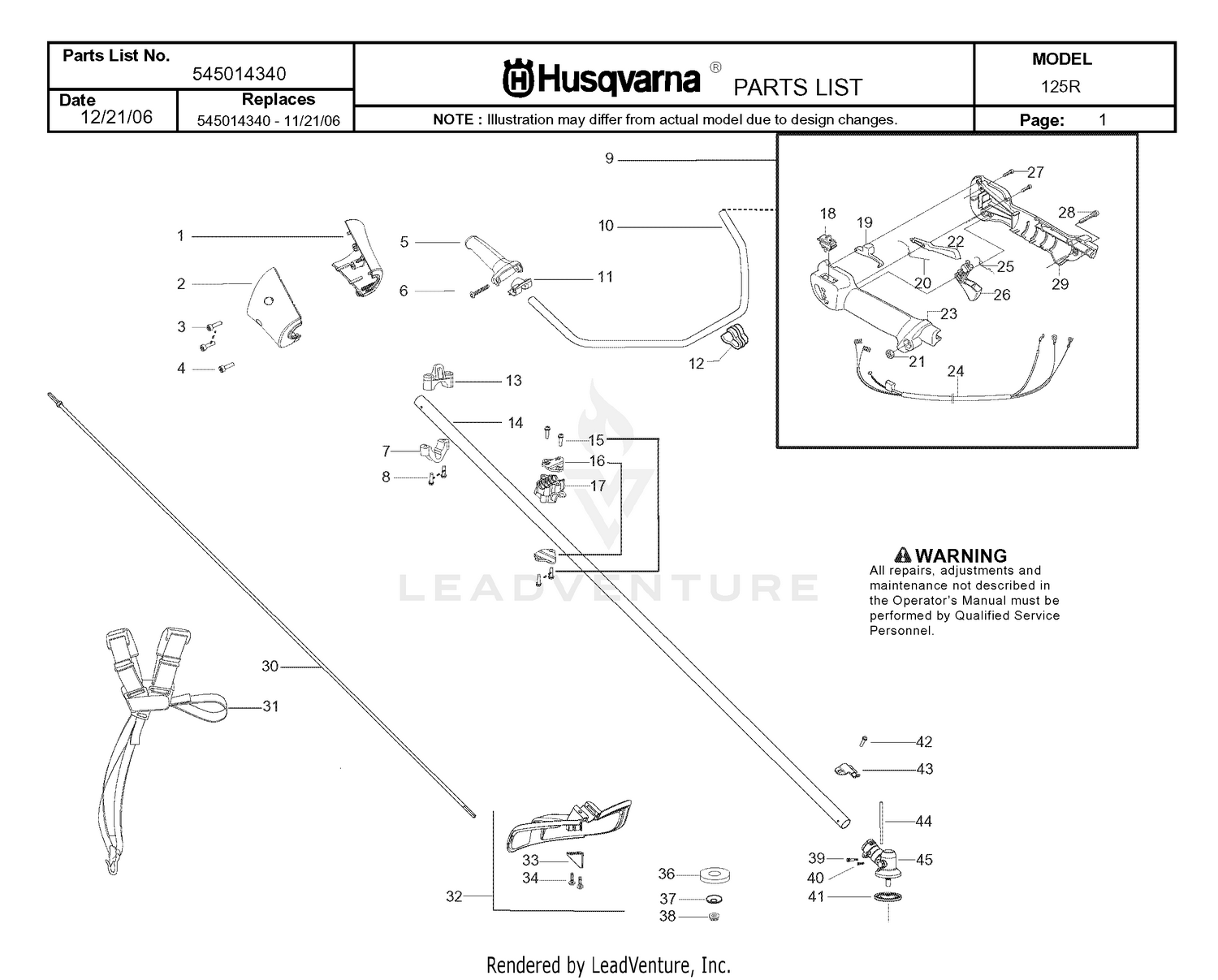

SHAFT & HANDLE
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 545036401 | NOSE CONE BH LEFT Price: $3.99 |
| 2 | 545036501 | NOSE CONE BH RIGHT Price: $3.99 |
| 3 | 530016448 | SCREW Price: $2.99 |
| 4 | 530016449 | SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 | 503721003 | HANDLE Price: $14.99 |
| 6 | 503210745 | SCREW Price: $3.99 |
| 7 | 545056601 | CLAMP HARNESS LOWER Price: $3.99 |
| 8 | 530015940 | SCREW Price: $2.99 |
| 9 | 545125501 | ASSY THROTTLE HOUSING This part replaces 545067101. Price: $49.99 |
| 10 | 502199503 | HANDLE Price: $29.99 |
| 11 | 503804501 | BRACKET Price: $6.99 |
| 12 | 502211201 | GROMMET Price: $3.99 |
| 13 | 545113301 | CLAMP HARNESS UPPER Price: $4.99 |
| 15 | 530015814 | SCREW Price: $0.17 |
| 16 | 530058563 | CLAMP BRACKET Price: $2.99 |
| 17 | 545058501 | CLAMP Price: $9.99 |
| 18 | 537419001 | STOP BUTTON Price: $7.99 |
| 19 | 537160703 | STARTER THROTTLE LOCK This part replaces 537160701. Price: $4.99 |
| 20 | 537174301 | SPRING Price: $3.99 |
| 21 | 503221013 | NUT Price: $3.99 |
| 22 | 506497701 | THROTTLE CONTROL This part replaces 537160601. Price: $6.99 |
| 23 | 537160203 | HANDLE Price: $17.99 |
| 25 | 537174201 | SPRING Price: $4.99 |
| 26 | 506497701 | THROTTLE CONTROL This part replaces 537160801. Price: $6.99 |
| 27 | 503216618 | SCREW Price: $3.99 |
| 28 | 503200782 | SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 29 | 537160301 | HANDLE Price: $14.99 |
| 31 | 537216301 | HARNESS DUO Price: $49.99 |
| 32 | 545030901 | KIT COBI SHIELD Price: $27.99 |
| 33 | 530052286 | Limiter - Line Price: $0.68 |
| 34 | 530015814 | SCREW Price: $0.17 |
| 36 | 503890101 | SUPPORTING CUP Price: $14.99 |
| 37 | 537285601 | SUPPORT FLANGE Price: $9.99 |
| 38 | 503856301 | GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 39 | 530016014 | SCREW - CARB. ADAPTOR Price: $2.99 |
| 40 | 530016301 | SCREW Price: $2.99 |
| 41 | 537234901 | DRIVE DISC Price: $19.99 |
| 42 | 530015771 | SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 43 | 530057554 | BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 44 | 502285901 | LOCKING PIN Price: $4.99 |
| 45 | 530096295 | ASSY GEARBOX Price: $34.99 |
