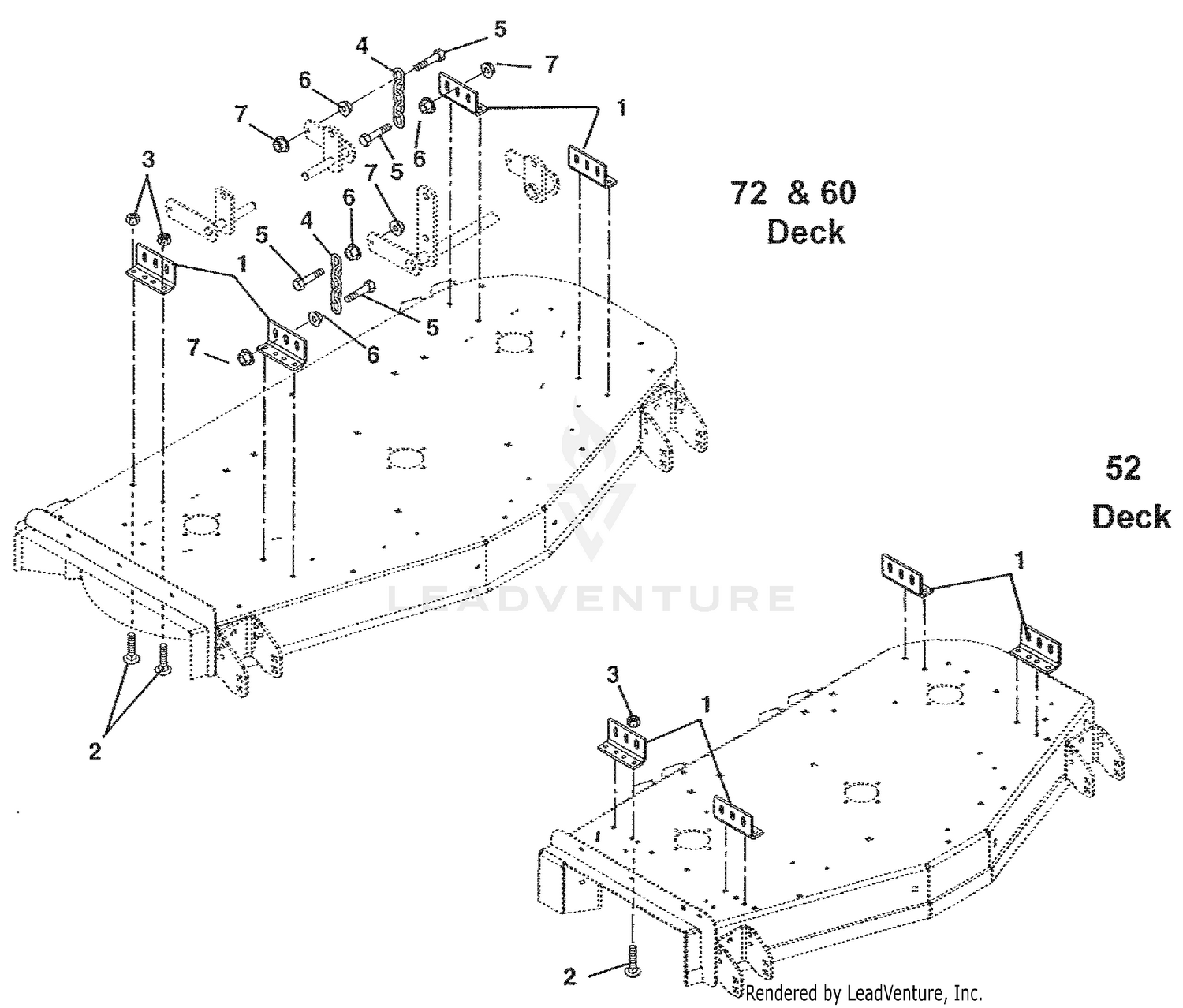

Mounting Brackets
Parts (6)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 09290153 | MOWER MOUNTING BRACKET - RED Price: $26.95 |
| 2 | 06200313 | BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 3 | 06500822 | NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 4 | 09284700 | CHAIN, LINK Price: $5.45 |
| 5 | 05901929 | BLT, HEX .50-13X2.00 G5 ZCC This part replaces 05959700. Price: $2.95 |
| 6 | 06500928 | NUT, SPNLK-FLG .50-13 G5 ZCC This part replaces 06543300. Price: $3.95 |
