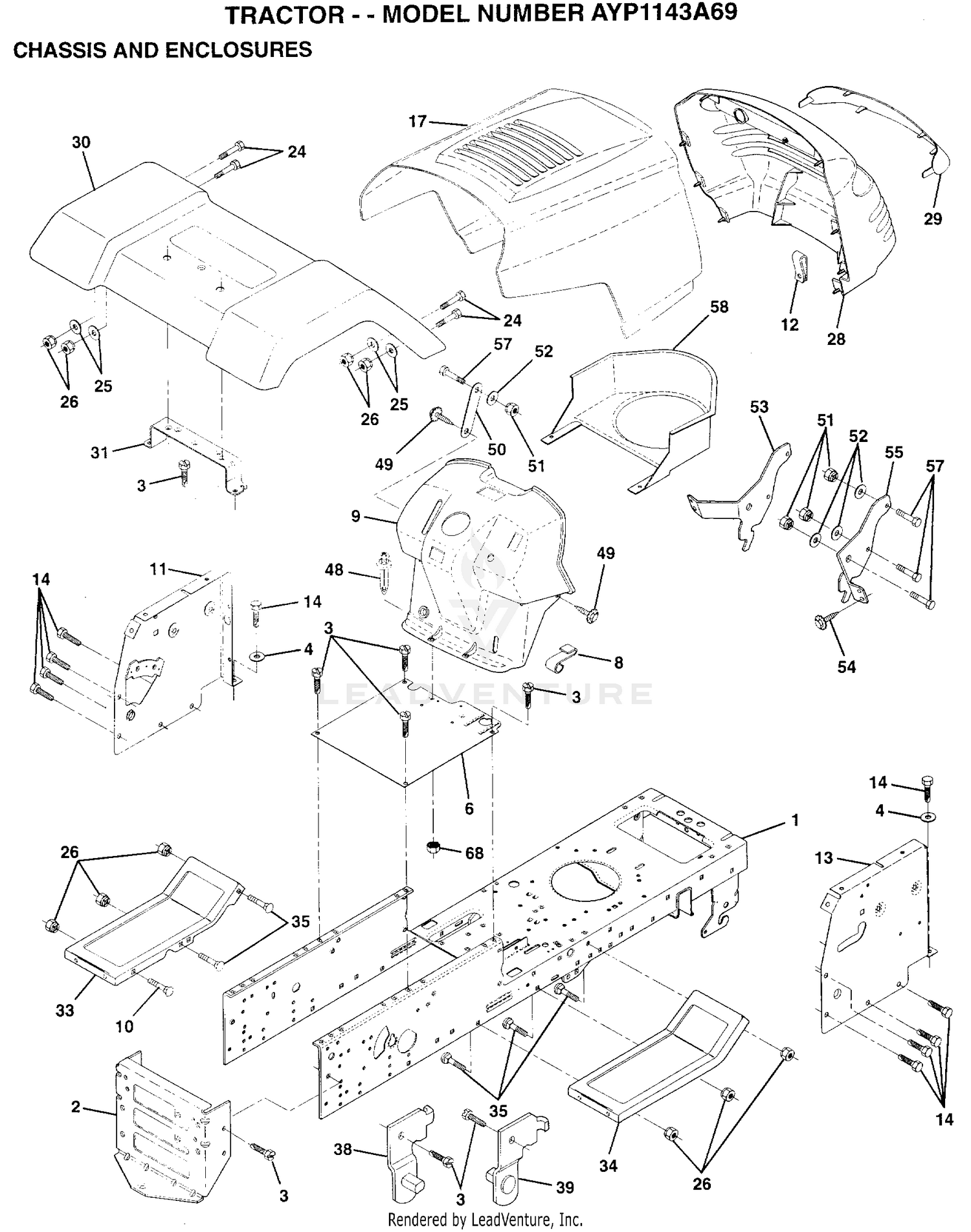

| Ref | Part Number | Description |
|---|
| 1 |
104-0000-03 |
PULLEY Price: $400.11 |
| 1 |
145501 |
CHASSIS.WLD.11GA Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 2 |
99-6937 |
FAN Price: $304.08 |
| 3 |
17490612 |
SCREW Price: Call Us |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 4 |
19131216 |
WASHER Price: Call Us |
| 6 |
145208X015 |
SUB= 155924X014 Price: Call Us |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 9 |
104-0017 |
HUB This part replaces 104-0017-03. Price: $185.06 |
| 9 |
140072 |
SUB= 532142465 Price: Call Us |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
146965 |
PANEL.DASH.LH. Price: Call Us |
| 11 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
104-1487 |
BOLT-CARR Price: $3.93 |
| 13 |
146959 |
PANEL.DASH.RH Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 15 |
104-1440-03 |
SUPPORT-FAN Price: $395.73 |
| 16 |
104-0006-03 |
LEVER-FAN, IDLER Price: $61.11 |
| 17 |
139394X505 |
SUB= 159639X505 Price: Call Us |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 18 |
98-3921 |
BELT Price: $16.95 |
| 19 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
104-1447-03 |
BRACKET-FAN, SUPPORT Price: $39.88 |
| 22 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
104-1481-03 |
BRACKET-MOUNT, FAN Price: $58.30 |
| 26 |
73800600 |
NUT Price: Call Us |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
140141 |
SUB= 157373 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 30 |
109872X505 |
FENDER Price: Call Us |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 31 |
33114-020 |
SCREW-HH Price: $0.28 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 33 |
104-0007 |
SPACER Price: $39.26 |
| 33 |
105476X505 |
FOOTREST LH Price: Call Us |
| 34 |
10547X505 |
FOOTREST Price: Call Us |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
104-1482 |
PLATE-WASHER Price: $15.25 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 48 |
138096 |
RIVET.PUSH.PLATE Price: Call Us |
| 49 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 50 |
142779 |
BRACE SUPT DASH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 68 |
73510400 |
NUT Price: Call Us |
| 5479J |
PLUG |
BUTTON T Price: Call Us 5479J |
