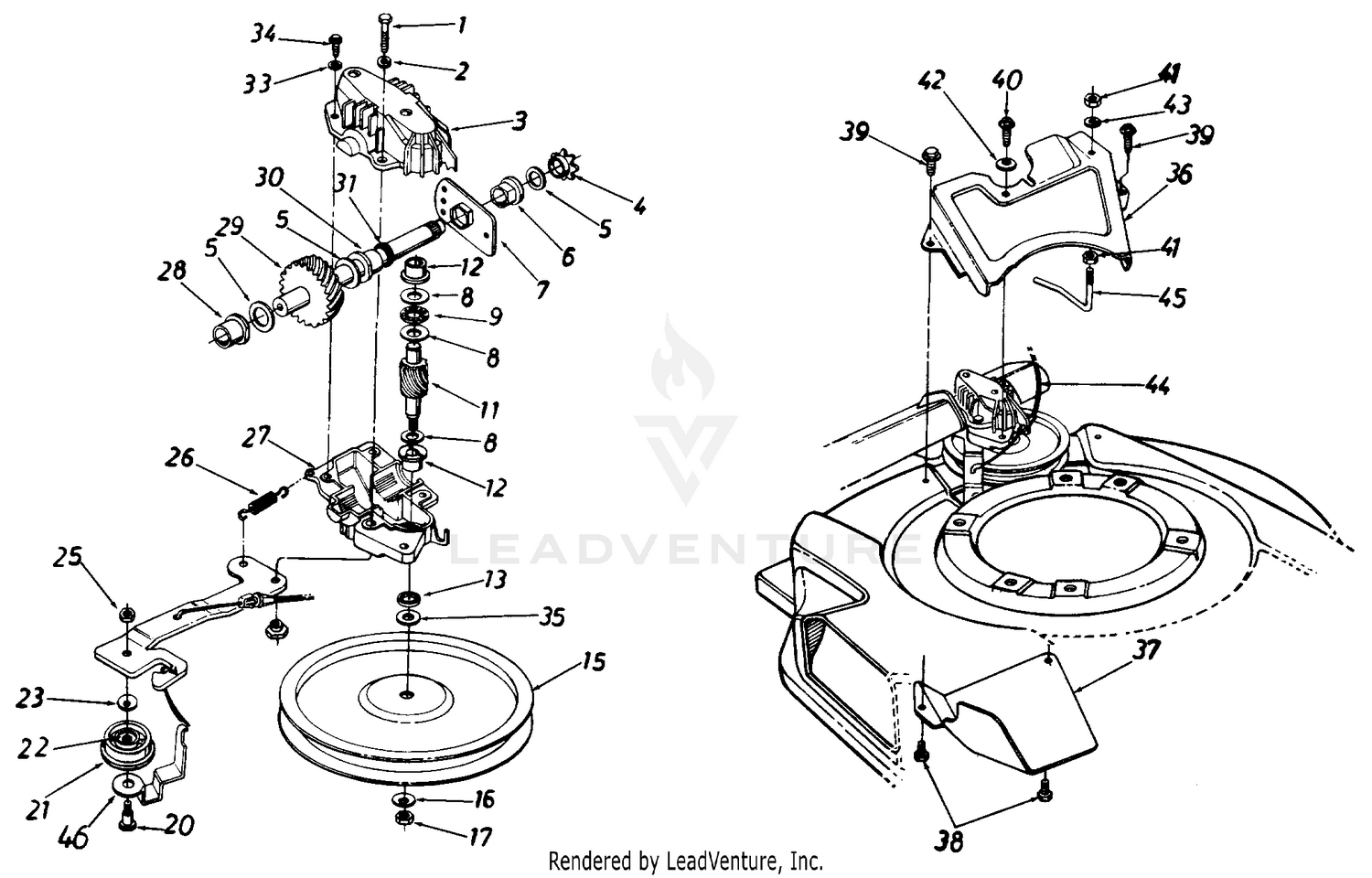

| Ref | Part Number | Description |
|---|
| 3 |
717-0418A |
HOUSING HALF UPPER Not Available Price: |
| 4 |
713-0400 |
SPROCKET-7T Not Available Price: |
| 5 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 6 |
741-0413 |
Hex Flange Brg. .631" I.D. Price: $8.46 |
| 7 |
16500A-0637 |
CUP BEARING HEX Not Available This part replaces 16500A. Price: |
| 8 |
736-0314 |
Thrust Wash. .382" I.D. x .70" O.D. Price: $6.01 |
| 9 |
741-0479 |
Thrust Bearing .375" I.D. x .812" O.D. Not Available Price: |
| 11 |
917-1216 |
PINION SHAFT 11T Not Available This part replaces 717-1216. Price: |
| 12 |
748-0208A |
Flange Bearing Price: $3.93 |
| 13 |
721-0212 |
OIL SEAL -.375 ID Not Available Price: |
| 27 |
717-0419A |
HOUSING HALF-LOWER Not Available Price: |
| 28 |
941-0415 |
Flange Bearing .566 ID This part replaces 741-0415. Price: $9.18 |
| 30 |
741-0414 |
Flange Bearing .629 Dia. Price: $9.41 |
| 31 |
721-0213 |
Oil Seal .625 Dia. Price: $9.93 |
| 33 |
736-0722 |
L-Wash. #10 I.D. Price: $5.81 |
| 34 |
710-0651 |
Hex Wash. Hd. Self-Tap Scr. This part replaces 710-0436. Price: $3.15 |
| 40 |
710-0896 |
Hex B-Tap Scr. 1/4 x .62" Lg. Price: $3.86 |
| 45 |
747-0549 |
BELT GUARD Not Available Price: |
| 46 |
782-7569 |
Belt Guard Price: $6.20 |
