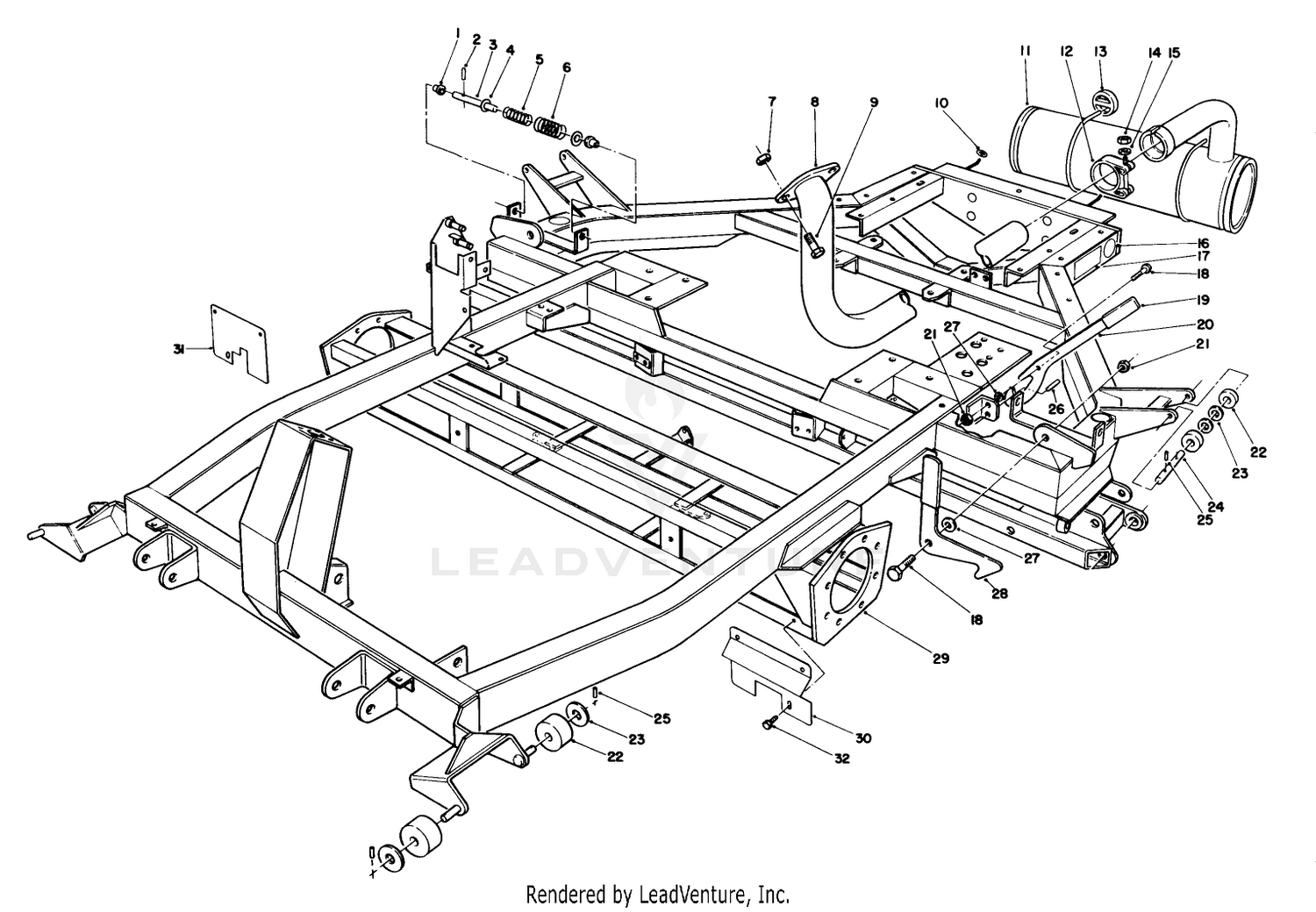

Chassis Muffler Assembly

Chassis  Muffler Assembly

Parts (29)

RefPart NumberDescription
1 58-2800 BUSHING Price: $16.22
2 60-3720 PIN-ROLL Price: $2.43
3 58-2810 ROD Price: $77.22
4 3256-7 WASHER-FLAT Price: $0.75
5 48-6780 SPRING-COMPRESSION Price: $28.08
6 60-1240 SPRING Price: $37.47
7 60-6660 NUT Price: $4.07
8 58-2570 FRONT EXHAUST PIPE WA Price: $503.91
9 33115-030 SCREW-HH This part replaces 48-9470. Price: $0.68
10 60-1670 NUT Price: $3.40
11 58-2490 SILENCER ASM Price: $409.47
12 60-1980 CLAMP, T-BOLT Price: $34.95
13 60-0750 HANGER-EXHAUST Price: $27.99
16 58-6520 DECAL-GREASE Price: $2.57
17 58-5910 DISCONTINUED Price: Call Us
18 33116-030 SCREW-HH This part replaces 60-6870. Price: $1.56
19 48-7080 GRIP-PLASTIC Price: $7.04
20 58-3800 LATCH *R Price: $151.93
21 51-2070 NUT Price: $0.68
22 60-0120 ROLLER Price: $46.18
23 51-2060 WASHER Price: $0.68
24 60-0160 PIN Price: $39.08
25 60-2110 PIN Price: $1.42
26 48-8830 PIN-EXPANSION Price: $1.52
27 48-8850 SPRING-DISC Price: $4.79
28 48-8540 DISCONTINUED Price: Call Us
29 58-0330 DISCONTINUED Price: Call Us
30 60-4190-03 SHIELD-GRASS, LH This part replaces 60-4190. Price: $45.54
31 60-4200-03 SHIELD-GRASS, RH This part replaces 60-4200. Price: $49.14
