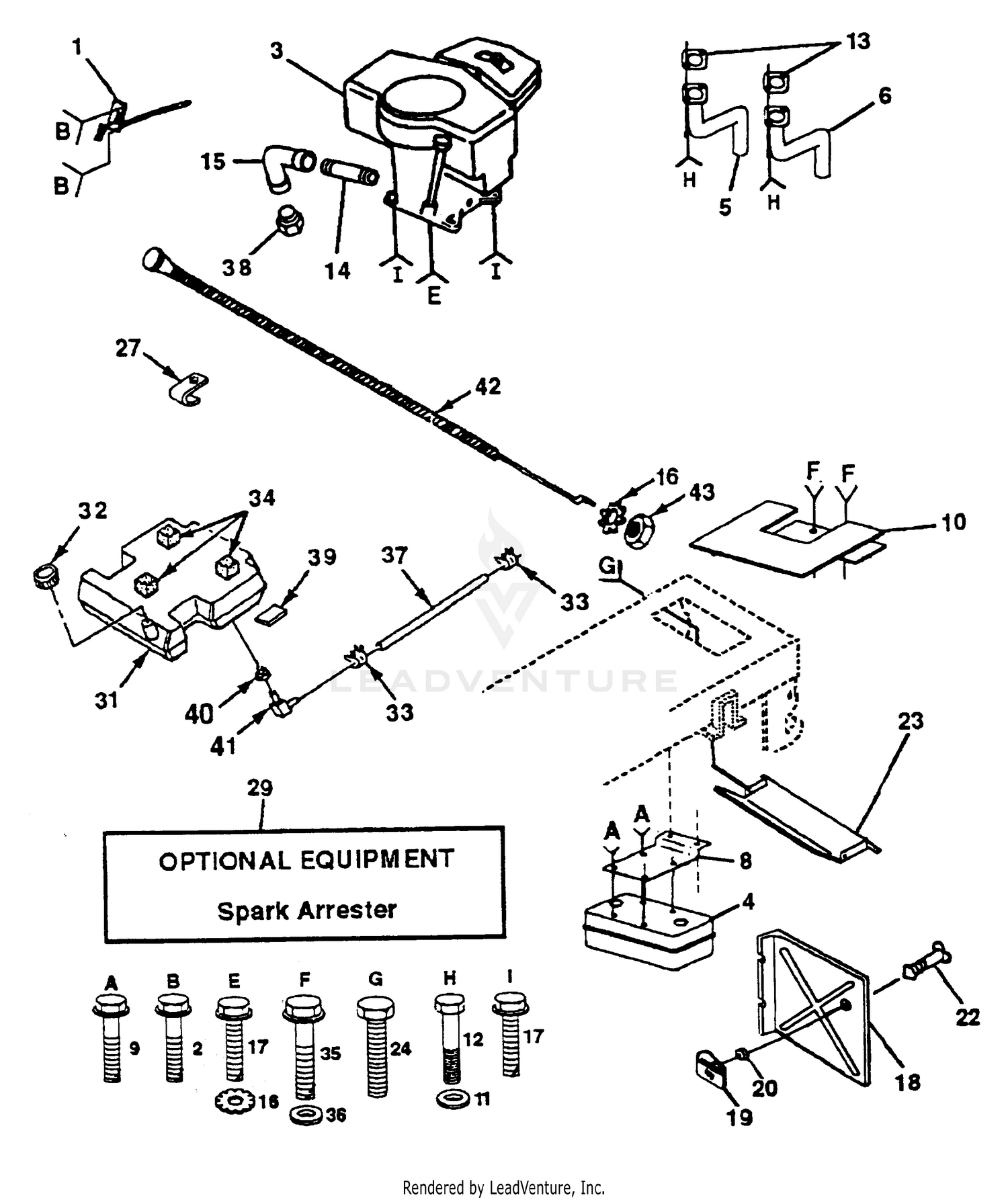

| Ref | Part Number | Description |
|---|
| 1 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 1 |
532143443 |
CONTROL.THROTTLE This part replaces 532137214. Price: $24.99 |
| 2 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 2 |
817720410 |
Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number) Price: $5.99 |
| 3 |
5-4042 |
DISCONTINUED Price: Call Us |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE This part replaces 532137978. Price: $49.99 |
| 5 |
532136215 |
Tube Manifold LH (AYP part number) Price: $23.27 |
| 5 |
54045 |
Pivot Bracket Price: Call Us |
| 6 |
5-4033 |
DISCONTINUED Price: Call Us |
| 6 |
532136216 |
Tube Manifold RH (AYP part number) Price: $23.71 |
| 7 |
5-4041 |
DISCONTINUED Price: Call Us |
| 8 |
253-122 |
SEAL-OIL Price: $6.83 |
| 8 |
532122439 |
Bracket Muffler Mounting (AYP part number) Price: $6.27 |
| 9 |
5-4035 |
DISCONTINUED Price: Call Us |
| 9 |
817190408 |
Screw Hex Wsh Thd Cut 1/4-20 (AYP part number) Price: $5.99 |
| 10 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 10 |
532143600 |
Shield Heat LT (AYP part number) Price: $6.99 |
| 11 |
254-78 |
BEARING-CONE Price: $12.22 |
| 11 |
810040500 |
Washer Lock Hvy Hlcl 1/4 (Order from Engine Manufacturer) (AYP part number) Price: $2.99 |
| 12 |
253-117 |
SEAL-OIL Price: $5.72 |
| 12 |
874570512 |
Bolt, Fin Hex 1/4-20 x 3/4 (Order from Engine Manufacturer) (AYP part number) Price: $3.99 |
| 13 |
5-4038 |
WEAR SLEEVE Price: $16.36 |
| 14 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 14 |
813280336 |
Nipple Pipe 3/8 Npt X 4-1/2" (AYP part number) Price: Call Us |
| 15 |
5-4040 |
DISCONTINUED Price: Call Us |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 16 |
5-4034 |
DISCONTINUED Price: Call Us |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 18 |
5-4048 |
DISCONTINUED Price: Call Us |
| 18 |
532133747 |
Shield Heat Mech (AYP part number) Price: $3.99 |
| 19 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
532105839 |
Receptacle 1/4 Turn (AYP part number) Price: $3.99 |
| 20 |
532105838 |
Retainer 1/4 Turn (AYP part number) Price: $3.99 |
| 22 |
532123650 |
Stud 1/4 Turn Price: $3.99 |
| 23 |
532128953 |
Shield Heat Browning LT/YT (AYP part number) Price: $3.08 |
| 24 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 (AYP part number) Price: $1.99 |
| 27 |
532002751 |
Clip, Fuel Line (AYP part number) Price: $2.42 |
| 29 |
532137180 |
Kit Spark Arrestor (Flat Scrn) (AYP part number) Price: $129.99 |
| 31 |
532151346 |
FUEL TANK This part replaces 532141069. Price: $59.99 |
| 32 |
532140527 |
Cap Asm Fuel W/sym Vented (AYP part number) Price: $6.99 |
| 33 |
532123487 |
Clamp Hose Blk (AYP part number) Price: $3.99 |
| 34 |
532106082 |
Pad, Spacer (AYP part number) Price: $2.99 |
| 35 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 36 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 37 |
532008543 |
Line Fuel 54" (AYP part number) Price: $7.99 |
| 39 |
532109227 |
Pad, Idler (AYP part number) Price: $2.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $2.99 |
| 41 |
532139277 |
Stem Tank Fuel (AYP part number) Price: $5.99 |
| 42 |
532132781 |
Control, Choke (AYP part number) This part replaces 532132782. Price: $19.99 |
