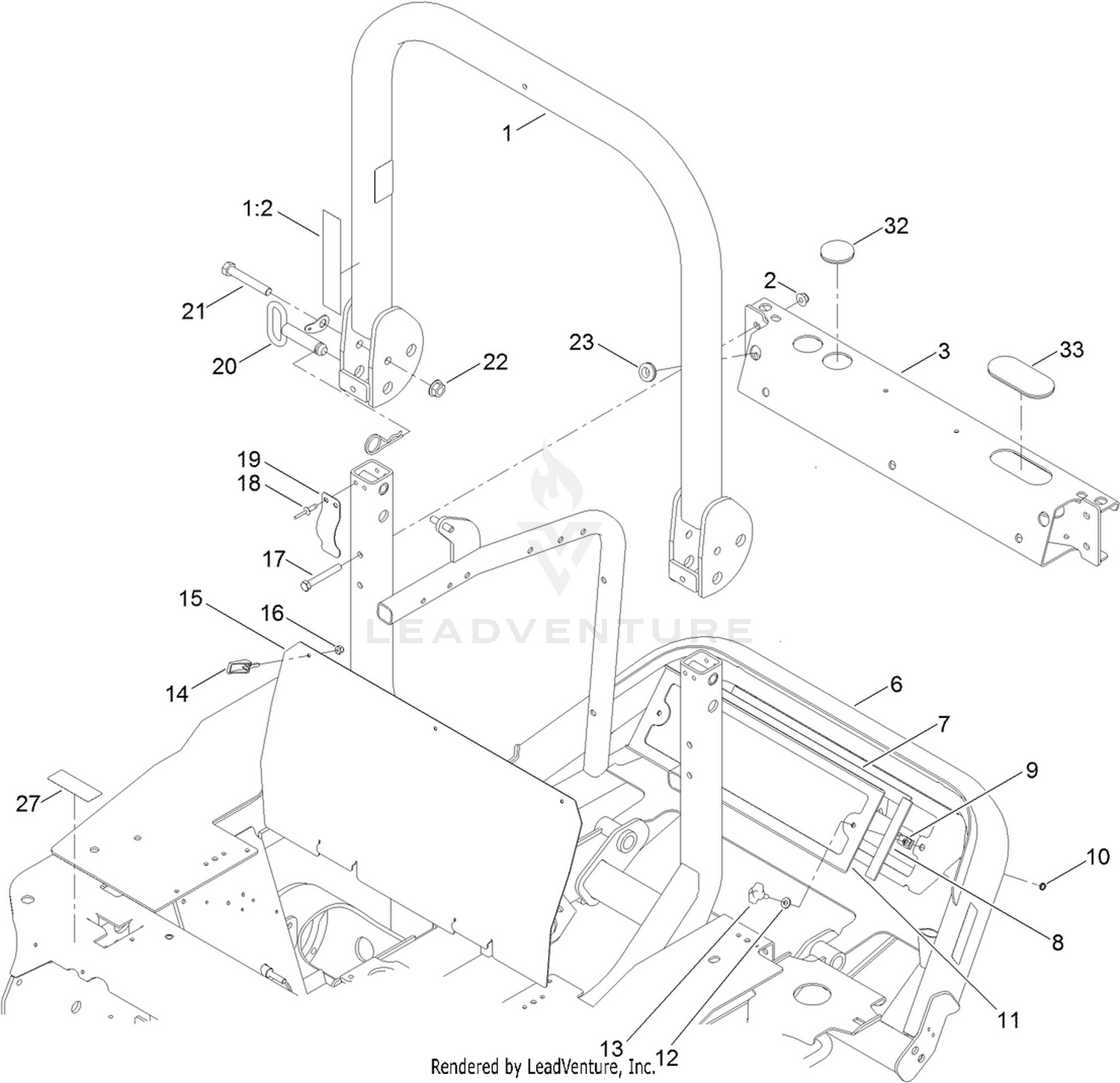

Rear Frame Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-9770 | UPPER ROPS ASM Price: $548.65 |
| 2 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 3 | 132-8150 | CROSSMEMBER ASM Price: $206.33 |
| 6 | 125-2714-03 | FRAME-REAR Price: $5,630.96 |
| 7 | 120-0019 | STRIP-FOAM Price: $2.17 |
| 8 | 120-0017 | STRIP-FOAM Price: $4.07 |
| 9 | 107069 | CLIP Price: $1.79 |
| 10 | 32151-106 | RING-RETAINING Price: $0.25 |
| 11 | 112-6384-0P | SCREEN Price: $149.73 |
| 12 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 13 | 98-8332 | KNOB Price: $4.89 |
| 14 | 74-5950 | LATCH-SWELL Price: $21.28 |
| 15 | 125-2718-03 | PANEL-REAR Price: $69.27 |
| 16 | 1-804254 | NUT-LOCK, HH Price: $1.29 |
| 17 | 119-4162 | SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 18 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 19 | 110-5696 | SPRING-LEAF Price: $43.16 |
| 20 | 161-4477 | PIN-ROPS, ASM This part replaces 103-4553. Price: $31.99 |
| 21 | 112-7264 | SCREW-HH Price: $3.11 |
| 22 | 32128-23 | NUT-HF Price: $1.51 |
| 23 | 237-124 | GROMMET Price: $2.30 |
| 27 | 133-5618 | DECAL-ARRESTER, SPARK Price: $3.63 |
| 32 | 105-5761 | GROMMET Price: $13.60 |
