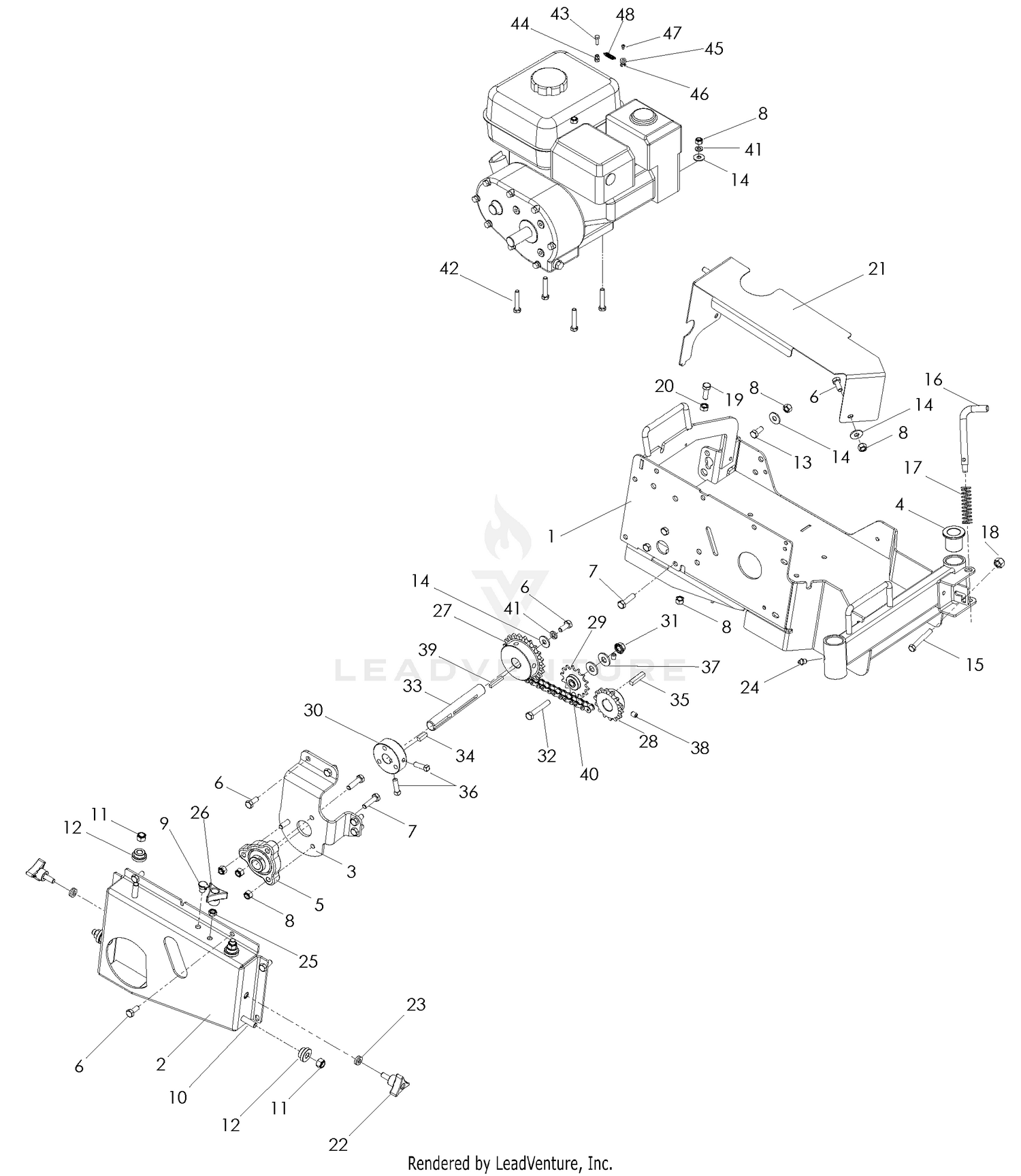

| Ref | Part Number | Description |
|---|
| 1 |
510367301 |
FRAME WELDMENT, ORANGE Price: $449.99 |
| 2 |
510373201 |
CHAIN COVER, ORANGE Price: $84.99 |
| 3 |
510367601 |
BEARING SUPPORT, ORANGE Price: $32.99 |
| 4 |
539101232 |
BUSHING, FLANGED Price: $11.99 |
| 5 |
539100488 |
BEARING, FLANGED Price: $39.99 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 7 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 8 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 9 |
539109545 |
OIL CAP, 3/8" Price: $27.99 |
| 10 |
539976941 |
HCS 3/8C X 1 1/4 GR5 Price: $3.99 |
| 11 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 12 |
539106847 |
BUSHING RAKE Price: $6.99 |
| 13 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539990206. Price: $3.99 |
| 14 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 15 |
539991003 |
BOLT 1/4C X 1 3/4 Price: $2.99 |
| 16 |
539109526 |
SPRING PIN Price: $22.99 |
| 17 |
539020034 |
SPRING, COMPRESSION Price: $2.99 |
| 18 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 19 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 20 |
596582601 |
Nuts This part replaces 539990196. Price: $2.99 |
| 21 |
510373101 |
COVER, ORANGE Price: $64.99 |
| 22 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 23 |
539101704 |
WASHER Price: $2.99 |
| 23 |
808128 |
Flywheel Price: Call Us |
| 24 |
539976997 |
ZERK 1/8 NPT Price: $2.99 |
| 25 |
596436301 |
Nuts This part replaces 539107897. Price: $2.99 |
| 26 |
539111321 |
KNOB, 5/16-18 NYLOC Price: $5.99 |
| 27 |
539111106 |
SPROCKET, 21T W/SETSCREWS Price: $44.99 |
| 28 |
539111102 |
SPROCKET 14T W/SETSCREWS This part replaces 539109532. Price: $64.99 |
| 29 |
539000301 |
SPROCKET W/KEY JACK SHAFT 10 T Price: $32.99 |
| 30 |
539109514 |
MOUNTING HUB Price: $69.99 |
| 31 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 32 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 33 |
539112042 |
SHAFT Price: $64.99 |
| 34 |
539102067 |
KEY 1/4 SQ X 3/4 Price: $2.99 |
| 35 |
539109159 |
KEY 7MM SQ X 33MM ENGINE Price: $11.99 |
| 36 |
539102716 |
SCREW 5/16C X 1 SQ HEAD SET Price: $2.99 |
| 37 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 38 |
539976956 |
SET SCREW 5/16 NYLOC Price: $2.99 |
| 39 |
539109165 |
KEY 3/16 SQ X 1-1/4 Price: $2.99 |
| 40 |
539130885 |
CHAIN, TRANSMISSION #40 Price: $14.99 |
| 41 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 42 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 43 |
539108520 |
HCS M5-0.8 X 16MM GR 8.8 ZD Price: $2.99 |
| 44 |
539109154 |
NUT 5MM-.8 HEX ZD Price: $2.99 |
| 45 |
539030449 |
CLAMP, THROTTLE CABLE Price: $29.99 |
| 46 |
539030451 |
CLIP, THROTTLE HONDA Price: $4.99 |
| 47 |
539108583 |
SCREW METRIC SPECIAL X 1/4 ZN Price: $2.99 |
| 73 |
494439 |
Screen-Rotating Price: Call Us |
| 78 |
805447 |
Screw Price: Call Us |
| 332 |
806028 |
Nut-Hex. Price: Call Us |
| 333 |
492341 |
Armature-Magneto Price: Call Us |
| 334 |
805407 |
Screw-HH Price: Call Us |
| 353 |
92791 |
Washer-Lock Price: Call Us |
| 354 |
90576 |
Nut Price: Call Us |
| 356 |
493792 |
Wire-Stop Price: Call Us |
| 363 |
19203 |
Puller-Flywheel Price: Call Us |
| 474 |
393295 |
Alternator Price: Call Us |
| 501 |
394890 |
Regulator Price: Call Us |
| 507 |
398525 |
Insulator Price: Call Us |
| 520 |
93722 |
Terminal Price: Call Us |
| 526 |
805448 |
Screw Price: Call Us |
| 529 |
805641 |
Grommet Price: Call Us |
| 726 |
808162 |
Flywheel Ring Gear (Includes Hardware) Price: Call Us |
| 729 |
280470 |
Clip-Wire Price: Call Us |
| 851 |
493880 |
Terminal-Spark Plug Price: Call Us |
| 877 |
393537 |
Connector-Wire, Tri Circuit Price: Call Us |
