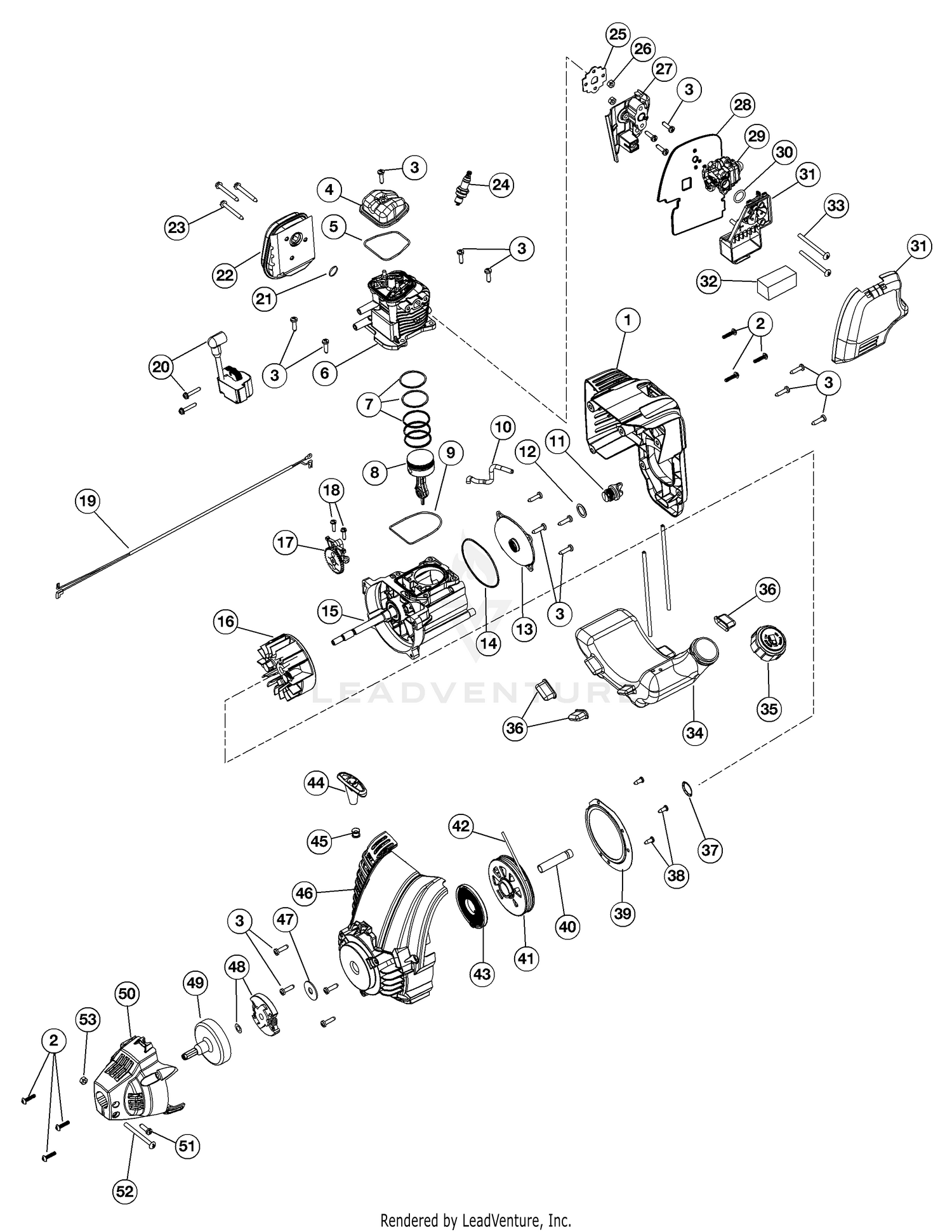

| Ref | Part Number | Description |
|---|
| 1 |
753-05206 |
ENGINE COVER ASSEMBLY Not Available Price: |
| 2 |
710-04194 |
Cover Screw This part replaces 753-04595. Price: $3.66 |
| 3 |
9052-1 |
SCREW, M5 X18 This part replaces 791-181003. Price: $3.78 |
| 4 |
753-05209 |
ROCKER COVER Not Available Price: |
| 5 |
721-04132 |
O-RING Not Available This part replaces 753-05210. Price: |
| 6 |
753-05228 |
CYLINDER ASSEMBLY Not Available Price: |
| 7 |
753-05229 |
PISTON RING ASSEMBLY Not Available Price: |
| 8 |
753-05230 |
PISTON ASSEMBLY Not Available Price: |
| 9 |
753-05232 |
Cylinder O-Ring Not Available Price: |
| 10 |
791-182379 |
Breather Hose Price: $4.10 |
| 11 |
753-05408 |
Oil Plug (Incl. 5) This part replaces 753-05236. Price: $25.95 |
| 12 |
791-182290 |
Oil Plug O-Ring Price: $4.29 |
| 13 |
753-05237 |
CRANKCASE COVER Not Available Price: |
| 14 |
753-05238 |
Crankcase Cover O-ring Price: $9.20 |
| 15 |
753-05239 |
CRANKCASE ASSEMBLY Not Available Price: |
| 16 |
753-05240 |
Flywheel Assembly Price: $67.61 |
| 17 |
753-05241 |
CAM BRACKET ASSEMBLY Not Available Price: |
| 18 |
710-04584 |
Cam Bracket Screw This part replaces 753-05242. Price: $3.29 |
| 19 |
753-05264 |
Lead Wires Price: $14.70 |
| 20 |
753-05301 |
Module Assembly This part replaces 753-05243. Price: $99.77 |
| 21 |
753-05244 |
Muffler Gasket Price: $5.11 |
| 22 |
753-05245 |
Muffler Assembly (includes 21 & 23) Price: $81.50 |
| 23 |
710-04809 |
SCREW M5 x 44MM This part replaces 753-05246. Price: $2.83 |
| 24 |
794-00082 |
Spark Plug This part replaces 753-05255. Price: $6.35 |
| 25 |
753-05247 |
GASKET/INSULATOR Not Available Price: |
| 26 |
712-04099 |
Nut This part replaces 753-05248. Price: $5.94 |
| 27 |
753-05249 |
Insulator Not Available Price: |
| 28 |
753-05366 |
Carburetor Gasket This part replaces 753-05250. Price: $17.21 |
| 29 |
753-05251 |
Carburetor w/Primer Price: $65.76 |
| 30 |
791-181751 |
O-Ring Price: $3.92 |
| 31 |
753-05252 |
AIR CLEANER COVER Not Available Price: |
| 32 |
753-05254 |
Air Filter Price: $4.88 |
| 33 |
710-04517 |
Screw This part replaces 753-05253. Price: $4.71 |
| 34 |
753-05256 |
Fuel Tank Assembly w/Fuel Lines (includes 35) Price: $47.70 |
| 35 |
753-1229 |
Fuel Cap Price: $19.90 |
| 36 |
753-05259 |
Fuel Tank Pads Price: $5.72 |
| 37 |
712-04096 |
PUSH NUT Not Available This part replaces 753-05260. Price: |
| 38 |
1755 |
Screw This part replaces 753-1202. Price: $3.37 |
| 39 |
753-05074 |
PLATE:PRESS:4 CY:AST Not Available Price: |
| 40 |
750-04434 |
Powershaft Spacer This part replaces 753-05078. Price: $5.91 |
| 41 |
753-05435 |
Starter Assembly (includes 42) Price: $27.79 |
| 42 |
791-613103 |
Rope Price: $8.97 |
| 43 |
753-04286 |
Recoil Spring Price: $24.35 |
| 44 |
631-04164B |
Pull Handle This part replaces 791-181079. Price: $3.38 |
| 45 |
791-611061 |
Rope Guide Price: $9.62 |
| 46 |
753-05262 |
Starter Housing Assembly (includes 3 & 37-45) Price: $75.40 |
| 47 |
9162-1 |
Washer This part replaces 791-182396. Price: $3.91 |
| 48 |
753-1238 |
Clutch & Clutch Washer Price: $39.52 |
| 49 |
791-153592 |
Clutch Drum Price: $45.60 |
| 50 |
753-05263 |
Clutch Cover Price: $24.30 |
| 51 |
791-182519 |
Anti-Rotation Screw Price: $4.37 |
| 52 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 53 |
712-0161 |
Nut-Hex Ins L-#10- This part replaces 791-180217. Price: $4.02 |
